Controller Module Series 1 Jr.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a IC609SJR101 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IC609SJR101

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.5 (14)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.5 (14)
  • Click a star to rate this product
Controller Module Series 1 Jr.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a IC609SJR101 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IC609SJR101 Technical Specifications

Input 115VAC 12mA/PT Max
MPN IC609SJR101
Output 115VAC 25VA 50/60Hz

Product Description

The IC609SJR101 module is a programmable logic controller that was designed for the line of products known as Series One Junior. This series, and therefore the IC609SJR101 PLC unit as well, has had its production halted by the original manufacturer, which is GE Fanuc. Even though it is no longer being produced, AX Control may have this product in stock. Be sure to check its availability in our stock by looking  here on our website.

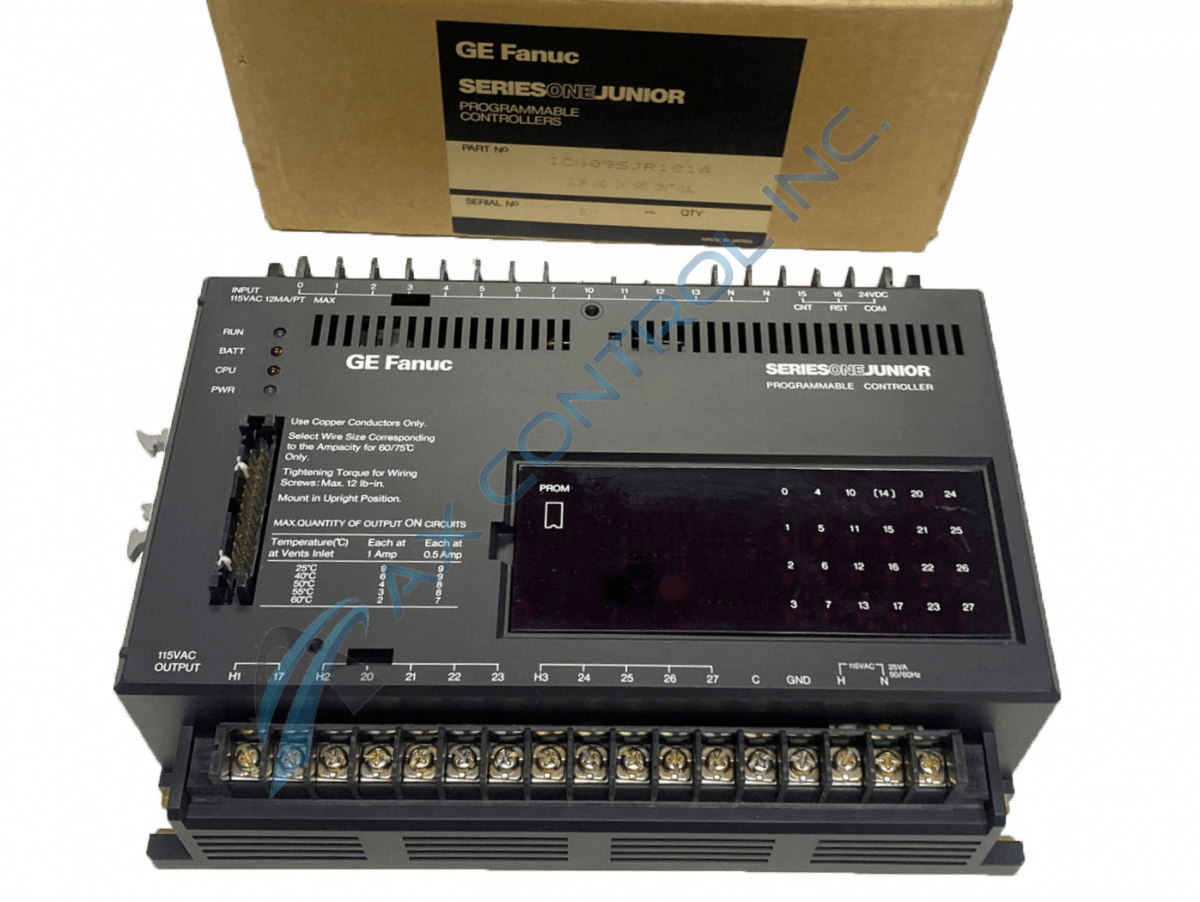

The IC609SJR101 PLC unit is a rectangular device that has multiple components that can be used by the operator. The top and bottom of the unit is lined with numerous terminals, all of which are labeled to indicate their intended purpose. The top terminals are in charge of the inputs for the device and the bottom terminals are in charge of the outputs for the device. The top left of the IC609SJR101 PLC unit’s faceplate is home to four LED status indicators. These LEDs are labeled on their left sides to show what they are designed to indicate. These labels, from top to bottom, are the following: “RUN,” “BATT,” “CPU,” “PWR.” The bottom right of the faceplate is home to a small display screen which has a keypad to its right.

The IC609SJR101 PLC unit utilizes pico, fast blow fuses, which have a current rating of 2 Amps. In order to install the pico, fast blow fuses into the IC609SJR101 PLC unit, then you must use solder them into the circuit.

The IC609SJR101 PLC unit has a weight of about 5.15 lbs. or 2.34 kg.

Frequently Asked Questions about IC609SJR101

What is the function of the IC609SJR101?
The IC609SJR101 is a basic unit that is used with the Series One Jr.
What does it mean when one of the LED lights in the upper left corner is lit up?
The LED lights on the IC609SJR101 are there to indicate the status of the operating system, battery life, the status of the CPU circuitry, and the power of the whole unit. When one of these lights are lit, they are not performing correctly.
  • IC609SJR101A
  • IC609SJR101B
  • IC609SJR101C
  • IC609SJR101D
  • IC609SJR101E
  • IC609SJR101F

Repair Services For IC609SJR101

Type Lead Time Price Action
Repair Service 1-2 weeks $300

Our highly skilled technicians can repair your IC609SJR101. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
