IC609EXP120 Technical Specifications

Input 24VDC
MPN IC609EXP120
Output 115/230VAC 50/60Hz

Product Description

The IC609EXP120 module is an expansion unit for a CPU model within the Series One Junior line of products. Both the IC609EXP120 expansion unit and the device with which it is designed to be connected were brought to the market by GE Fanuc. This product is no longer available in GE Fanuc’s stock, but it may be available in AX Control’s stock, which can be checked on our website or by contacting us during our business hours on weekdays.

The IC609EXP120 expansion unit was made to be connected with the IC609SJR120 Sink In/Relay Out CPU unit as a means of expanding its capabilities. Click on the link above to visit that device’s page on our website to learn more about it and view purchasing information. Like the device with which it is meant to be connected, the IC609EXP120 expansion unit requires 115 VAC of power with its I/O ports being rated at 24 VDC.

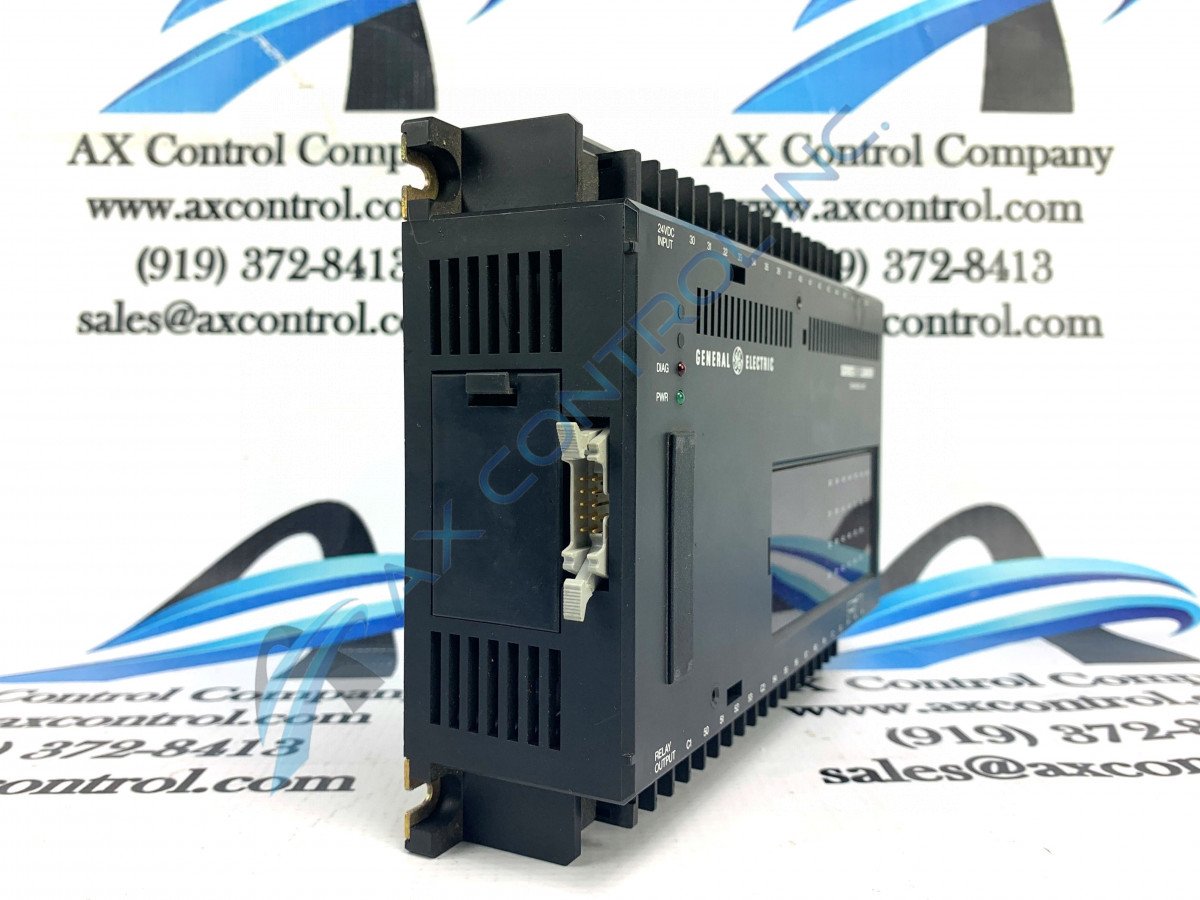

On the surface of the IC609EXP120 expansion unit, there are several terminals and ports, all of which are individually labeled. There are also numerous indicator lights and a small display screen. The sides of the IC609EXP120 expansion unit are ventilated to prevent overheating.

The IC609EXP120 expansion unit utilizes normal blow fuses. These normal blow fuses are rated at 5 Amps and are installed within the IC609EXP120 expansion unit by way of some fuse mounting clips. All of the Series One Junior units have fuse protection so that the output circuitry is protected from any sort of damage.

The IC609EXP120 expansion unit weighs a total of approximately 3.79 lbs. or 1.72 kg.

Frequently Asked Questions about IC609EXP120

What is the function of the IC609EXP120?
The IC609EXP120 is expasion unit for the One Jr. Series.
When is the IC609EXP120 used?
If a Series One Jr. has more than 24 I/O, a IC609EXP120 can be installed.
