IC692MDR741

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
24VDC Programmable Contr. Series 9020

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a IC692MDR741 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IC692MDR741 Technical Specifications

Input 24 VDC IN
MPN IC692MDR741
Output 240 VAC OUT
Product Type I/O and Power Supply Base Module

Product Description

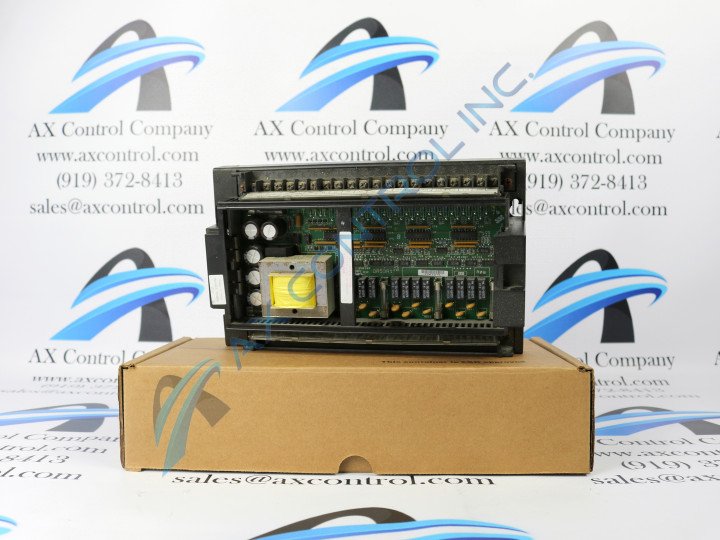

IC692MDR741 is an I/O and Power Supply Base Module that is manufactured by GE Fanuc Automation as part of Series 90-20. This module has 16 input points and 12 output points. The input power is 24 VDC. The output power is relay. The power supply is 240 VAC. Using the mounting screws on the end of the unit, mount this module on a flat panel area. Remember that the power supply converts the input source power to voltages required for internal circuitry. The power supply also provides an isolated 24 VDC supply to power DC input circuits, indicators, and switches. The fuse on this power supply is user replaceable. In order to access the fuse, remove the CPU module from the I/O base. The CPU module detects high level DC or AC voltages after they are filtered by the input circuits.

Two, 20-terminal removable terminal strips are provided on the baseplate module. Put the output connections and the power supply at the bottom, and put the input connections at the top. To program this module, use either MicroProgramming software on an industrial or personal computer, or a MicroHand-Held Programmer. Configuration with the MicroHand-Held Programmer must be done while the programmer is attached to and interfacing with the PLC. Modes of operation on the Hand-Held Programmer include: Program Mode, Data Mode, Protection Mode, and Configuration Mode. The shock absorption is 15 g’s for 11 msec. The vibration resistance is 3.5mm peak-to-peak displacement 5-10Hz, 1G 10-200 Hz. The base weighs 3.81 pounds. The dimensions of the module are 6.4 in x 10.5 in x 3.54 in. The battery shelf life is 8 to 10 years.

Frequently Asked Questions about IC692MDR741

Which input simulator is the IC692MDR741 compatible with?
The IC692MDR741 is compatible with the imput simulator IC692ACC201.
What is the function of the IC692MDR741?
The function of the IC692MDR741 is to provide a simple Programable Logic Controller that is easy to install and upgrade.
  • IC692MDR741A
  • IC692MDR741B
  • IC692MDR741C
  • IC692MDR741D
  • IC692MDR741E
  • IC692MDR741F

Repair Services For IC692MDR741

Type Lead Time Price Action
Repair Service 1-2 weeks $302

Our highly skilled technicians can repair your IC692MDR741. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

IC692MDR741 Manuals, White Papers, Data Sheets, and Troubleshooting
