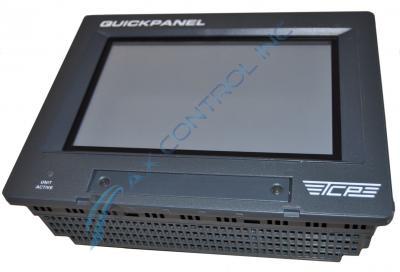

GE QuickPanel Touch Screen QPI-11100-S2P

AVAILABILITY:

IN STOCK
SHIPS TODAY

Warranty: Learn More
Sell Surplus: Have a QPI-11100-S2P to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: QPI-11100-S2P
  • SKU: QPI11100S2PGFP
  • Manufacturer: GE Fanuc PLC
  • Series: QuickPanel

QPI-11100-S2P

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
GE QuickPanel Touch Screen QPI-11100-S2P

AVAILABILITY:

IN STOCK
SHIPS TODAY

Warranty: Learn More
Sell Surplus: Have a QPI-11100-S2P to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: QPI-11100-S2P
  • SKU: QPI11100S2PGFP
  • Manufacturer: GE Fanuc PLC
  • Series: QuickPanel

QPI-11100-S2P Technical Specifications

Input Voltage 120 VAC
LCD Type STN Color Display
Manufacturer GE Fanuc Total Control
NEMA Rating Type 4X/12 IP65
Part Number QPI-11100-S2P
Screen Size 10.4"
Series QuickPanel
Software Version QuickDesigner Version 3.7

Product Description

QPI-11100-S2P

This version of the QuickPanel series of touch screen units are all high performance human/machine interface modules with an intense contrast ratio to allow for users to operate them efficiently in bright, extremely lit work areas.

The QPI-11100-S2P module is a 10.4 inch touch screen unit, with an expansive application memory of up to 4 megabytes, which are formatted into Flash compatible, erasable, programmable, read only memory (EPROM). The 10.4 inch viewing area of the model is outfitted with a super twisted nematic LCD display, in full color.

The overall dimensions of the QPI-11100-S2P have measurements of 12.48 inches/317 millimeters in Width, a Height of 9.57 inches/243 millimeters, and then a Depth of 2.28 inches/58 millimeters. The protective case that encases this QuickPanel module has an IP-65 rating, as well as a NEMA grade of 4X/12. While this case protects the QPI-11100-S2P model from several possible workplace dangers, such as damage from an accident, or any environmental hazards, the weight of the case is factored into measuring the unit as well: 7.7 pounds, or 3.5 kilograms.

The standard image resolution of the graphical information display is 640 by 480 pixels, and the viewing area is up to 11.87 inches/301.5 millimeters wide, and then as high as 8.96 inches/227.5 millimeters.

The hardware that comes integrated into the QPI-11100-S2P model is several auxiliary input and output ports, as well as an EtherNet and a printer port, for on-site, hard copy reports. If your GE Quickpanel manual needs replacing, please let your sales representative know during order placement.

Frequently Asked Questions about QPI-11100-S2P

My QPI-11100-S2P uses a STN Color Display, what does STN stand for?
You are correct, the QPI-11100-S2P does come with a STN Color Display that stands for Super Twisted Nematic. These screens are widely used in the panels that have to display a colored application.
Buy your next STN QPI-11100-S2P from AX Control Inc. for the best quality!
What voltage power supply is recommended for the QPI-11100-S2P?
The only recommended power supply that will power on your QPI-11100-S2P is 120VAC Wall outlet power. If you have any more volts than what is recommended, you can severly damage the power supply.
Get your power supply on your QPI-11100-S2P fixed today at www.axcontrol.com
When I try to power on my QPI-11100-S2P nothing happens, why?
This can mean a number of things for the QPI-11100-S2P. The first could be that you are trying to power the panel with 24VDC power. You will need to power it with 120VAC Power. Another reason is your power supply inside the QPI-11100-S2P has been damaged or has run through it's life span.
Get your QPI-11100-S2P repaired quickly at www.axcontrol.com
I have my QPI-11100-S2P hooked up and powered on, so what do I need to get my program onto it?
This is where the professionals at AX Control Inc. specialize. You will need the QuickDesigner Version 3.7 software to download your application to the QPI-11100-S2P. This file needs to be a .PRJ. You can also restore it with a .MEM file but not via QuickDesigner.
Get your applications transferred to your QPI-11100-S2P today by the experts at AX Control Inc.
How many different types of Quickpanel of the QPI-11100-S2P did Total Control produce?
Total Control Quickpanel manufactured Three different types of the QPI-11100-XXX series. The most commonly found is the QPI-11100-S2P, QPI-11100-E2P,  and the QPI-11100-C2P.
Buy your next Quickpanel Total Control Panel Station from www.axcontrol.com
  • QPI-11100-S2P Series A
  • QPI-11100-S2P Series B
  • QPI-11100-S2P-A
  • QPI-11100-S2P-B
  • QPI-11100-S2P-C
  • QPI-11100-S2P-D
  • QPI-11100-S2P-F
  • QPI-11100-S2P-G
  • QPI-11100-S2P-H
