CQPM-3D200-B2P

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

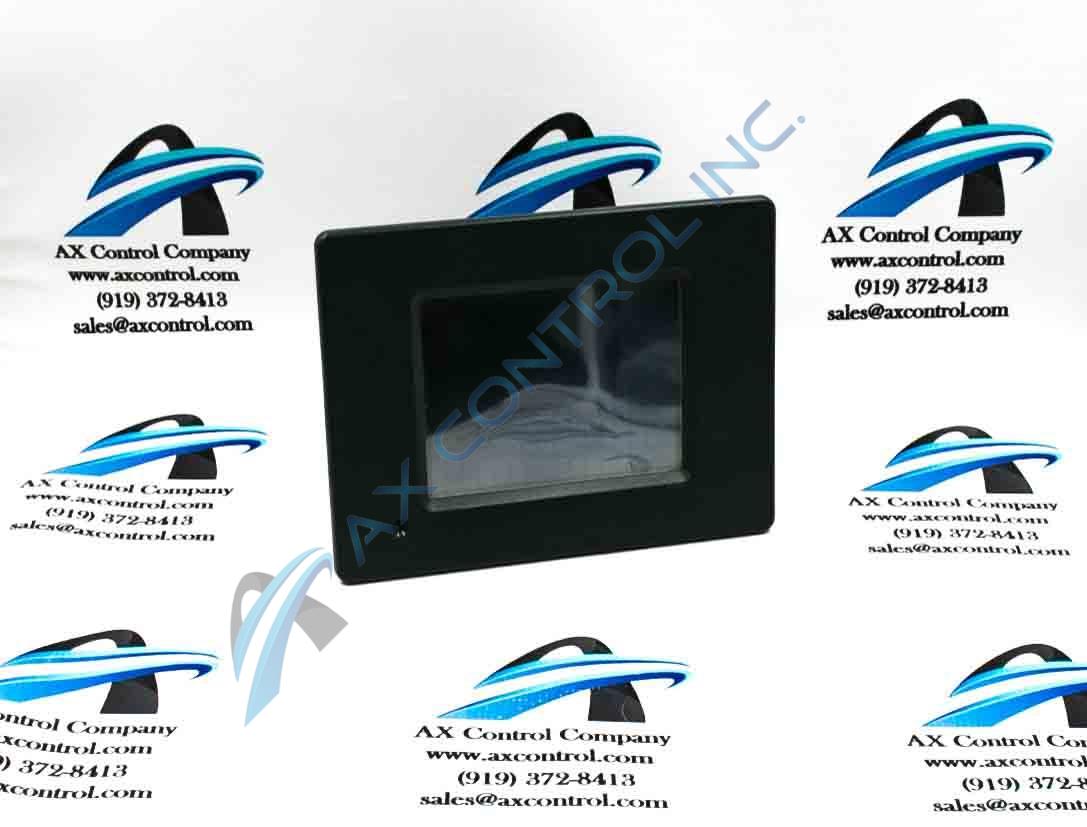

6" Quickpanel Mini Operator Interface

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a CQPM-3D200-B2P to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: CQPM-3D200-B2P
  • SKU: CQPM3D200B2PGFP
  • Manufacturer: GE Fanuc PLC
  • Series: QuickPanel

CQPM-3D200-B2P

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
6" Quickpanel Mini Operator Interface

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a CQPM-3D200-B2P to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: CQPM-3D200-B2P
  • SKU: CQPM3D200B2PGFP
  • Manufacturer: GE Fanuc PLC
  • Series: QuickPanel

CQPM-3D200-B2P Technical Specifications

Input Voltage 24 VDC
LCD Type Monochrome Display
Manufacturer GE Fanuc Total Control
NEMA Rating Type 4X/12 IP65
Part Number CQPM-3D200-B2P
Screen Size 5.7"
Series QuickPanel Mini
Software Version QuickDesigner Version 3.7

Product Description

The CQPM-3D200-B2P is a 6” QuickPanel Mini Display. This operator interface was originally made by GE Fanuc Total Control Products. GE Fanuc no longer offers any type of support for this display panel and it may be a little hard to find. AX Control still tries to keep it in stock though.

The CQPM-3D200-B2P is a 6” LCD monochrome blue user interface with a touchscreen function. The panel has CCFL backlighting and has a 320 x 240-pixel resolution. It has 8 levels of adjustable contrast. This display has a lifetime of 25,000 hours when used in standard temperatures and humidity levels. This model has done away with the touch screen plastic overlay that previous models had. The new display is sealed and does not actually need the overlay. This model is also NEMA rated 4, 4X and 12.

The CQPM-3D200-B2P is an upgrade to an older model of QuickPanel user interface. It has the ability to facilitate communication between PLCs and QuickPanels. It can maintain baud rates that are up to 115.2 k and can allow applications to download to the QuickPanel at a rate of 38.4 k. The software used with this user interface is QuickDesigner 3.51 or later. It has a 24 VDC and 2.5 amp input capacity. There is a 20W 24 VDC terminal strip on the back of the module. There are air vents on the top and bottom of the module. It also has a 25-pin female RS-232 communications port and a circular male connection on the right side.



Frequently Asked Questions about CQPM-3D200-B2P

What type of display is used in the CQPM-3D200-B2P?
The display used in the CQPM-3D200-B2P is a 6 inch monochrome blue LCD mini with 24 VDC. The main two colors used for this display are blue and white with a pixel resolution of 640 W x 480 H. Do not use solvents that are organic or paint thinners on the display, it can damage the screen. The CQPM-3D200-B2P has a Resistive Touch Screen of 16W x 12H.
What are the external dimensions of the CQPM-3D200-B2P?
According to the user manual for the CQPM-3D200-B2P you will find the following dimensions. This Quickpanel has a width of 207 mm (8.15in), Height of 157mm (6.18), and a depth of 58 mm (2.28).
At what temperature can the CQPM-3D200-B2P be storaged and operated at?
The operating temperature for the CQPM-3D200-B2P is 0 degrees Celcius to 50 degrees Celcius. The Storage Temperature is -20 degrees Celcius to 60 degrees Celcius. A fan is needed only when the surrounding temperature gets higher than 50 degrees Celcius.
How do I set up the SIO for the Quick Panel units?
The SIO communications set up with a PLC Host includes the set up of SIO, the printer set up, touch panel, touch panel communication set up, and the sound settings menu. This SIO menu are for the PLC communication settings but these settings can be different depending on the type of PLC. The communication rate is the data speed that is measured in bits per second (bps) and its between GP and PLC. The data length and stop bit needs to be set also up to 7 bit or 8 bit data and for the stop bit should be either 1 bit or 2 bit value.
  • CQPM-3D200-B2P Series A
  • CQPM-3D200-B2P Series B
  • CQPM-3D200-B2P-A
  • CQPM-3D200-B2P-B
  • CQPM-3D200-B2P-C
  • CQPM-3D200-B2P-D
  • CQPM-3D200-B2P-F
  • CQPM-3D200-B2P-G
  • CQPM-3D200-B2P-H
