8 Configuration High Speed Counter



Sell Surplus: Have a IC300HSC601 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IC300HSC601
  • SKU: IC300HSC601GFP
  • Manufacturer: GE Fanuc PLC
  • Series: IC300 OCS

IC300HSC601 Technical Specifications

Manufacturer GE Fanuc
Series Smart Stack
Type High Speed Counter Module

Product Description

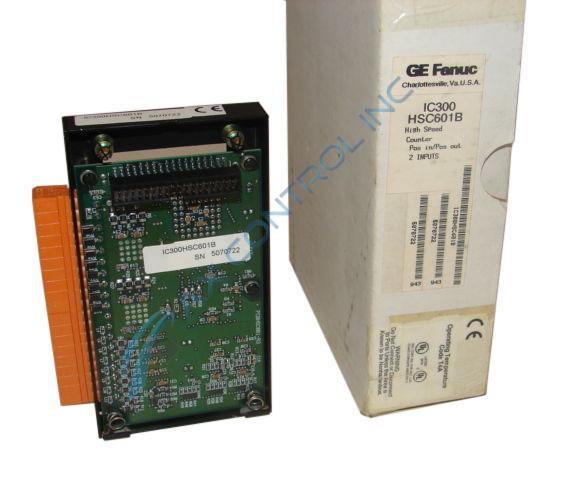

The IC300HSC601 module is a high speed counter that was developed for the SmartStack series by GE Fanuc. The IC300HSC601 high speed counter is typically available through AX Control’s stock. Our stock can be checked at any time by searching for the desired product on our website. For example, you can see the IC300HSC601 high speed counter’s availability in our inventory right here on this page. If you would like to speak to a staff member to talk about this device’s availability, you can always give us a call or send us an email.

The IC300HSC601 high speed counter is very similar in use and specifications to the device with the model number IC300HSC600. This device is also a high speed counter but it has some slight differences with the IC300HSC601 high speed counter. If you are interested in learning more about that and how to possibly order it, please use the link above to visit its dedicated page on our website.

The IC300HSC601 high speed counter has eight high speed counter inputs and eight sourcing pulse outputs. The eight inputs are positive logic type with an input impedance of 10 kΩ and an input filter of 500 kHz, 50 kHz, and 5 kHz. The peak voltage is 35 VDC. The eight outputs are sourcing/10K pull-down, positive logic type, which all have an operating voltage of 10 through 28 VDC, with the latter voltage rating being peak voltage rating. The maximum inrush current for the inputs is 650 mA and the maximum load current is 0.5 A.

Frequently Asked Questions about IC300HSC601

What is the function of the IC300HSC601?
The IC300HSC601 is a High Speed Input/Output Module within the Smart Series. The IC300HSC601 works with an Operator Control Device and is designed to work with high speed input/output signals.
Which input type is the IC300HSC601 compatible with?
The input type that the IC300HSC601 is compatible with is positive logic.
What is the output protection on the IC300HSC601?
The IC300HSC601 is designed to accept high speed I/O signals and it's short circit output protection prevents signal damages.
How much does the IC300HSC601 weigh?
The IC300HSC601 weighs 9.5oz or 270g.

Repair Services For IC300HSC601

Type Lead Time Price Action
Repair Service 1-2 weeks $335

Our highly skilled technicians can repair your IC300HSC601. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

IC300HSC601 Manuals, White Papers, Data Sheets, and Troubleshooting
