IC300ETN100

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.83 (6)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.83 (6)
  • Click a star to rate this product
Ethernet SmartStack Interface

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IC300ETN100 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IC300ETN100
  • SKU: IC300ETN100GFP
  • Manufacturer: GE Fanuc PLC
  • Series: IC300 OCS

IC300ETN100 Technical Specifications

Manufacturer GE Fanuc
Series Smart Stack
MPN IC300ETN100
Type Ethernet Module

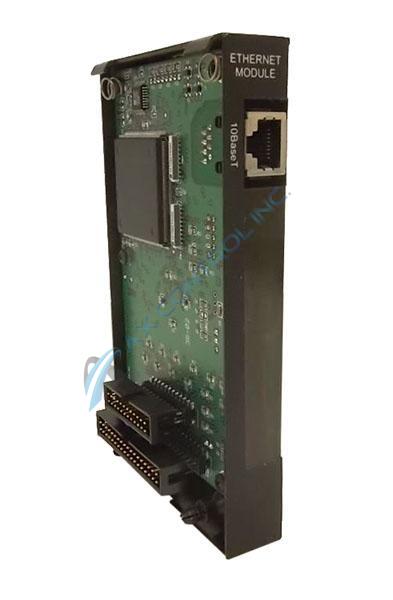

About the IC300ETN100

Built by GE Fanuc to be used as part of the SmartStack family of modules, the IC300ETN100 unit is an ethernet communications module. The IC300ETN100 ethernet communications module can usually be found within our stock, which can be verified at any time by using our website. If you wish, you can also speak to a staff member anytime within our business hours by calling us or sending us an email.

The IC300ETN100 ethernet communications module was designed so that various modules within the SmartStack line could be connected to it and therefore have ethernet capabilities. This module uses a 10 Base-T Ethernet type communication port, which means that it is meant to connect directly to the 10 Base-T network. The IC300ETN100 ethernet communications module supports either half or full duplex modes and has a global data buffer of 64 kilobytes. The module will produce the following data types: data and status. Related to that, the module will consume the following data types: data, status, and timestamp.

The IC300ETN100 ethernet communications module can have up to a possible 127 exchanges. These exchanges can be produced, consumed, or a combination of the two. One of these exchanges will have a size of 1,400 bytes. This size is the sum of the data type lengths of all of the data elements compiled in the list. Lastly, the IC300ETN100 ethernet communications module can have up 32 open connections at any time. An open connection is defined as an IP address or a group that is either produced or consumed.

When you are installing the IC300ETN100 ethernet communications module, be sure to disconnect all power from the CAN port, OCS controller, and any other equipment that may be connected to the local system before connecting the IC300ETN100 ethernet communications module. You will want to use Belden 8917, 16 AWG wire type or larger.

Frequently Asked Questions about IC300ETN100

What is the function of the IC300ETN100?
The IC300ETN100 is a ethernet module within the Smart Stack Series that is used with OCS drivers.

Can AX Control repair my IC300ETN100?
AX Control technicians can repair your IC300ETN100 along with other Smart Stack Series devces in a timley manner. AX Control's fully function test allows for technicians to ensure your IC300ETN100 is functioning correctly.
Will AX Control purchase your IC300ETN100?
AX Control will make an offer on your decomissioned surplus and stock shelf surplus after careful review.


Repair Services For IC300ETN100

Type Lead Time Price Action
Repair Service 1-2 weeks $224

Our highly skilled technicians can repair your IC300ETN100. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
