IC300DIQ722 Technical Specifications

Manufacturer GE Fanuc
MPN IC300DIQ722
Series Smart Stack
Type Mixed Module

Product Description

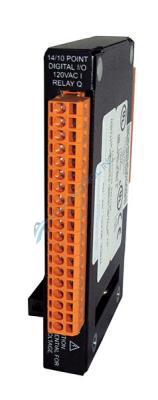

The IC300DIQ722 unit is an AC I/O module which was manufactured by GE Fanuc to be incorporated as part of the series of various types of modules which is called SmartStack. The IC300DIQ722 AC I/O module can regularly be obtained from our stock here at AX Control. Use our website at any time if you want to find out the availability of the IC300DIQ722 AC I/O module or any of the other products that we have listed on our website.

The IC300DIQ722 AC I/O module has fourteen inputs, which have three commons. The voltage range for the input is set to 120 VAC through 160 VAC. 160 VAC is conveniently the peak voltage rating for this module’s inputs. The lowest voltage level when ON is 70 VAC and the highest voltage level when OFF is 30 VAC. The AC frequency is rated at 60 Hz.

The IC300DIQ722 AC I/O module possesses ten relay outputs. These relay outputs have two commons.  The contact voltage for the outputs is a maximum of 30 VAC/250 VDC. The coil voltage lies at a range of 18 through 30 VDC. The ON voltage drop is at a maximum of 0.2 VDC. The fuses for the outputs are rated at 10 A, the maximum inrush current is 3 A, and the maximum resistive load current is 3 A. The IC300DIQ722 AC I/O module’s inputs have no minimum load associated with them. The output channel to bus isolation, like the input channel to bus isolation, is also 500 VDC.

Frequently Asked Questions about IC300DIQ722

What is the function of the IC300DIQ722?
The IC300DIQ722 is a mixed module withint the Smart Series with both input and output points designed to easily work with other I/O modules.
How many input points does the IC300DIQ722 have?
The IC300DIQ722 has 14 input points.
How much power is needed for the IC300DIQ722?
The IC300DIQ722 requires 0.17W.
Does AX Control have the manual for my IC300DIQ722?
AX Control does not have the manual for the IC300DIQ722 specifically but does have the Smart Stack Series manual. The Smart Stack manual provides basic information on the IC300DIQ722's function and installation process.
