IC300DAC001

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.38 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.38 (8)
  • Click a star to rate this product

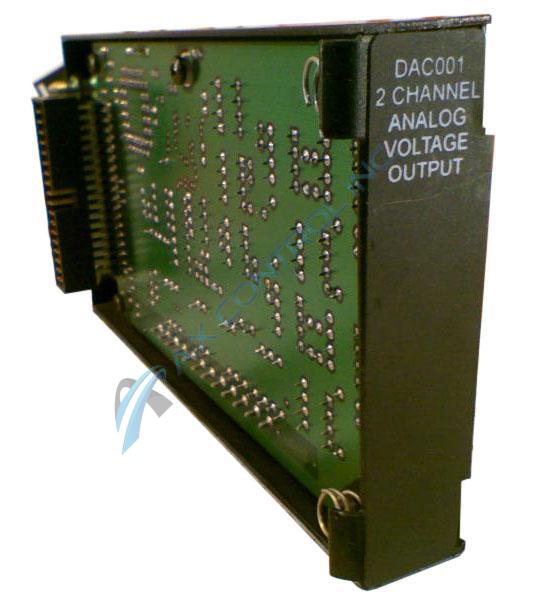

2 Channel Output Module

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IC300DAC001 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IC300DAC001
  • SKU: IC300DAC001GFP
  • Manufacturer: GE Fanuc PLC
  • Series: IC300 OCS

IC300DAC001 Technical Specifications

Manufacturer GE Fanuc
Series Smart Stack
MPN IC300DAC001
Type Output Module

About the IC300DAC001

The IC300DAC001 unit is a +/-10 V analog output module that was designed and manufactured for the SmartStack series of modules, which was made and organized by GE Fanuc. In most cases, you will have the ability to order the IC300DAC001 analog output module from AX Control due to our dedication to supply this product, along with many other products within the SmartStack line, to our customers. You can look up the availability of any of our products by looking on our website.

The IC300DAC001 analog output module has two channels and two analog outputs. The output range, which includes the overrange of the module, has a rating of +/- 10.23 V, with a peak output voltage of 10.24 V. The load capacitance has a maximum of .01µF and a minimum load impedance of 2 kiloOhms. This device’s voltage output resolution is 14 bits. The required power for the IC300DAC001 analog output module at steady state is at 0.79 W, 33 mA at 24 VDC, whereas the required power for this module at inrush is negligible. That being said, a maximum of 150 mA is the power budget requirement with a conversion setting time of 1 ms. The maximum error for the IC300DAC001 analog output module is rated at full scale with .05%. In addition to that, the accuracy versus temperature is .005% / degrees Celsius. The IC300DAC001 analog output module is the same as most other SmartStack modules in that it also uses removable spring clamp terminals.

The IC300DAC001 analog output module weighs about 0.59 lbs. or 0.27 kg.

Frequently Asked Questions about IC300DAC001

What is the purpose of the IC300DAC001?
The IC300DAC001 is a I/O modules when attached to a operator control device, creates a simply controller. The IC300DAC001 connects to the OCS and can be stack with up to 3 other I/O modules.
How many output channels are in the IC300DAC001?
The IC300DAC001 has 2 ouput channels located on the exterior of the device.
How much does the IC300DAC001 weigh?
The IC300DAC001 weighs 9.5 oz.


Repair Services For IC300DAC001

Type Lead Time Price Action
Repair Service 1-2 weeks $314

Our highly skilled technicians can repair your IC300DAC001. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
