GE Fuji 6KP1143015X1B1 AF-300P11 15HP 460V 3 Phase AC Drive

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 6KP1143015X1B1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6KP1143015X1B1
  • SKU: 6KP1143015X1B1GD
  • Manufacturer: GE Drives
  • Series: Fuji Electric

About the 6KP1143015X1B1

The 6KP1143015X1B1 is a 15HP 460 Volt 3-Phase AC Drive. It is a GE Fuji AF-300 P11 series drive. This drive is no longer being supported by GE and is a legacy series device. While it may be a little difficult to locate, AX Control does try to keep it in stock.

The 6KP1143015X1B1 has an input rating of 380-480V, 33 amps, 50/60 HZ, and is 3-Phase. The output for this drive has a rating of 15HP, 380-460V, a frequency range of 0.1-120 Hz, 23 amps, and an overload of 110% for 1 minute.

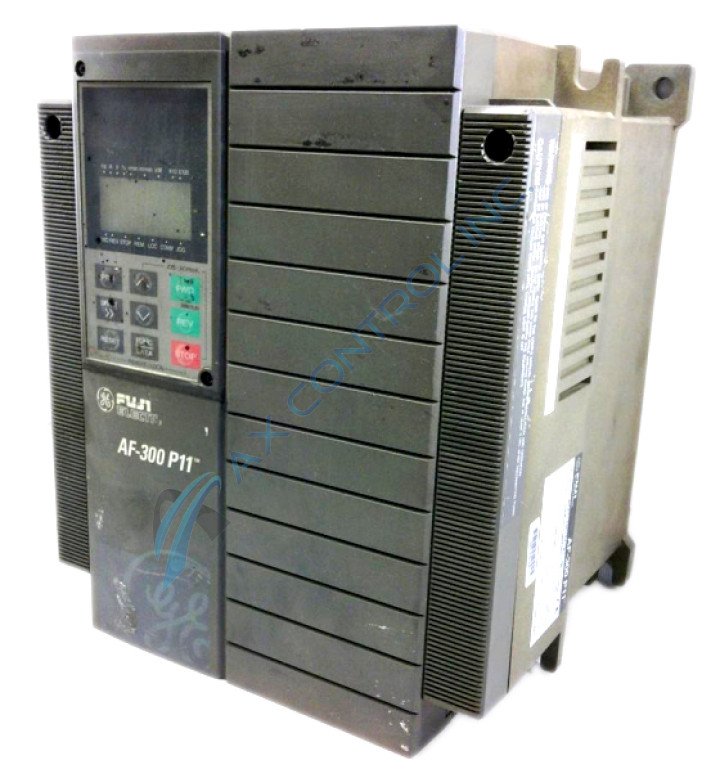

The 6KP1143015X1B1 is a large cube-shaped device. It has a display that features a 4-digit 7-segment LEDs and an LCD display just under it. It has a 9 button keypad. These keys are labeled PRG, shift >>, reset, func/data, an up arrow, a down arrow, FWD, REV and stop. The FWD and REV keys are green and the stop key is red.  This drive is protected by a NEMA 1 type enclosure. It is vented on its sides and is meant for inside usage only. On top of this drive is a large air circulation fan that is used to keep the internal circuitry from overheating.

The 6KP1143015X1B1 can be mounted onto a vertical solid structure like a panel or backplane. There are four factory drilled holes on the back of the drive that can be used to mount it. A combination of bolts and washers should be used to ensure this drive is securely installed onto the backplane or panel.

Frequently Asked Questions about 6KP1143015X1B1

Who makes the 6KP1143015X1B1?

The 6KP1143015X1B1 was created by Fuji Electric.

How heavy is the 6KP1143015X1B1?

The 6KP1143015X1B1 weights just over thirteen pounds (13.5).

How much horsepower does the 6KP1143015X1B1 have?

The 6KP1143015X1B1 has a fifteen (15) horsepower rating.

Can the 6KP1143015X1B1 catch fire?

Yes, if the 6KP1143015X1B1 is not installed properly there is a risk or fire, burns, and personal injury including shocks. The 6KP1143015X1B1's heatsink can reach upwards of 90°C or 194°F while in operation. It is very important to install the 6KP1143015X1B1 drive properly in a non-flammable heat resistant material such as metal to ensure a fire doesn't happen.

Is the placement of where the 6KP1143015X1B1 is installed important?

Yes, the 6KP1143015X1B1 must be installed vertically on a solid structure. The device needs to also have adequate ventilation to cool down. When installing this device be mindful of heat sensitive devices around it. The heat from this drive will radiate upwards.

What is the overload current for the 6KP1143015X1B1?

The 6KP1143015X1B1 's overload current is twenty-five (25).

What type of enclosures does the 6KP1143015X1B1 have?

The 6KP1143015X1B1 has a single NEMA style enclosure.

Where can I find rated output current for the 6KP1143015X1B1?

The rated output current can be found on the nameplate that is attached to the drive. The rated output current for the 6KP1143015X1B1 is twenty-three (23).

How do I get ahold of AX Control?

AX Control's staff is available by phone  1-919-372-8413 (International) 1-800-991-7026 (Domestic) or by email at sales@axcontrol.com

Repair Services For 6KP1143015X1B1

Type Lead Time Price Action
Repair Service 1-2 weeks $927

Our highly skilled technicians can repair your 6KP1143015X1B1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

6KP1143015X1B1 Manuals, White Papers, Data Sheets, and Troubleshooting
