6KP1143003X1B1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
380-480 Volt Fuji Drive

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 6KP1143003X1B1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6KP1143003X1B1
  • SKU: 6KP1143003X1B1GD
  • Manufacturer: GE Drives
  • Series: Fuji Electric

About the 6KP1143003X1B1

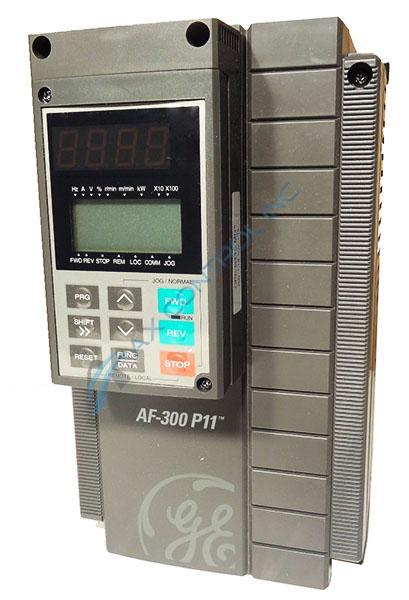

The 6KP1143003X1B1 is an HMI from Fuji Electric. The 6KP1143003X1B1 is a model number for the AF-300 P11 series. The face of this device has an LED screen that shows numbers (up to four digits) at the top and instructions at the bottom. The instructional screen is surrounded with abbreviations that show where that abbreviation appears on the screen. They abbreviations are Hz, A, V, %, r/min, m/min, kW, X10, and X100 across the top of the screen. The bottom of the screen is FWD, REV, STOP, REM, LOC, COMM, and JOG. Below the screen is a keypad. The buttons on the keypad are PRG (gray button), Upwards facing arrow (gray button), FWD (green button), Shift >> (gray button), Downwards facing arrow (gray button), REV (green button), Reset (gray button), FUNC/DATA (gray button), and STOP (red button). The LCD screen offers a “level structure”.  The levels are a normal operation which includes screens for operation mode, program menu, a screen for each function, supplementary screen. There are alarm modes which can be accessed through the operations mode page during normal operation. The worker can also set the digital frequency, along with setting function data for the device. You can perform I/O checks through the program menu screen. On the program menu screen, you can also view maintenance information, and copy data. Please reference the AF-300 P11 series instructional manual for more detailed information.

If you would like a quote for this device please email or call the staff at AX Control.

Repair Services For 6KP1143003X1B1

Type Lead Time Price Action
Repair Service 1-2 weeks $922

Our highly skilled technicians can repair your 6KP1143003X1B1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

6KP1143003X1B1 Manuals, White Papers, Data Sheets, and Troubleshooting
