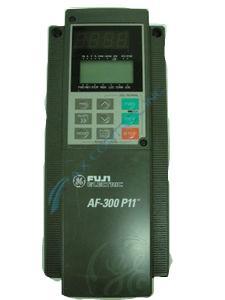

The 6KP1143001X1B1 is a 1HP 460VAC Drive manufactured by GE Fuji as part of the AF-300 P11 drive series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 6KP1143001X1B1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6KP1143001X1B1
  • SKU: 6KP1143001X1B1GD
  • Manufacturer: GE Drives
  • Series: Fuji Electric

6KP1143001X1B1 Technical Specifications

Catalog Number 6KP1143001X1B1
Product Family AF-300 P11 Drives
Manufacturer (OEM) GE Fuji Drives USA
Instruction Manual Number GEI-100364C
Horsepower 1HP
Input Voltage 380-460VAC

About the 6KP1143001X1B1

The 6KP1143001X1B1 is a 1HP 380-460VAC AC Drive manufactured by GE Fuji Drives USA as part of the AF-300 P11 drive family. It is found in the AF-300 P11 series by Fuji Electric.

Specifcations:

The drive is a part of the 460 VAC, 3 phase, 50/60 Hz Input, NEMA 1 section of the AF-300 P11 series. This drive has one horsepower, with a rated output current of 2.5 and an overload of 2.8. This drive weighs 5.5 pounds. The dimensions of this drive are 10.24 (H) x 4.33 (W) x 5.71 (D) and are measured in inches. This drives nominal input fuse (L1/R, L2/S, L3/T) is five. The maximum input fuse (L1/R, L2/S, L3/T) is six. The auxiliary input (RO, TO) is three. The input circuit breaker is fifteen. The tightening torque in pounds per inch (Nm) for the L1/R, L2/S, L3/T, U, V, W, P1, P (+), the DB circuit (*2) P (+), N (-), DB and the E(G) is 10.6 (1.2). The control is 6.2 (0.7). The cables size (AWG) for the L1/R, L2/S, L3/T, the U, V, W, the DC Reactor P1, P (+), and the DB circuit (*2) P (+), N (-), DB is sixteen. The control cable size (AWG) is twenty-two.

User Instructions:

WARNING: This equipment contains a potential hazard of electric shock or burn. Only personnel who are adequately trained and thoroughly familiar with the equipment and the instructions should install, operate, or maintain this equipment. To learn more about this drive, refer to the manuals and data sheets published by Fuji Electric.

Contact Us:

If you would like to order yours today reach out to the staff at AX Control.

Reviews For 6KP1143001X1B1

Internal Review
(5.0)

The 6KP1143001X1B1 AF-300 P11 drive is easily programmed by on on-site technician or engineer via the local keypad and documentation showing the parameter list is readily available online. The ease of installation coupled with the low likelihood of failure makes the 6KP1143001X1B1 a strong choice when choosing a 1HP AC drive for your application. We rate this model 5 stars. - AX Control Lead Technician
