6KG1143007X1B1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.88 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.88 (8)
  • Click a star to rate this product
7 hp AF-300 G11 Drive with Auto Restart

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 6KG1143007X1B1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6KG1143007X1B1
  • SKU: 6KG1143007X1B1GD
  • Manufacturer: GE Drives
  • Series: Fuji Electric

About the 6KG1143007X1B1

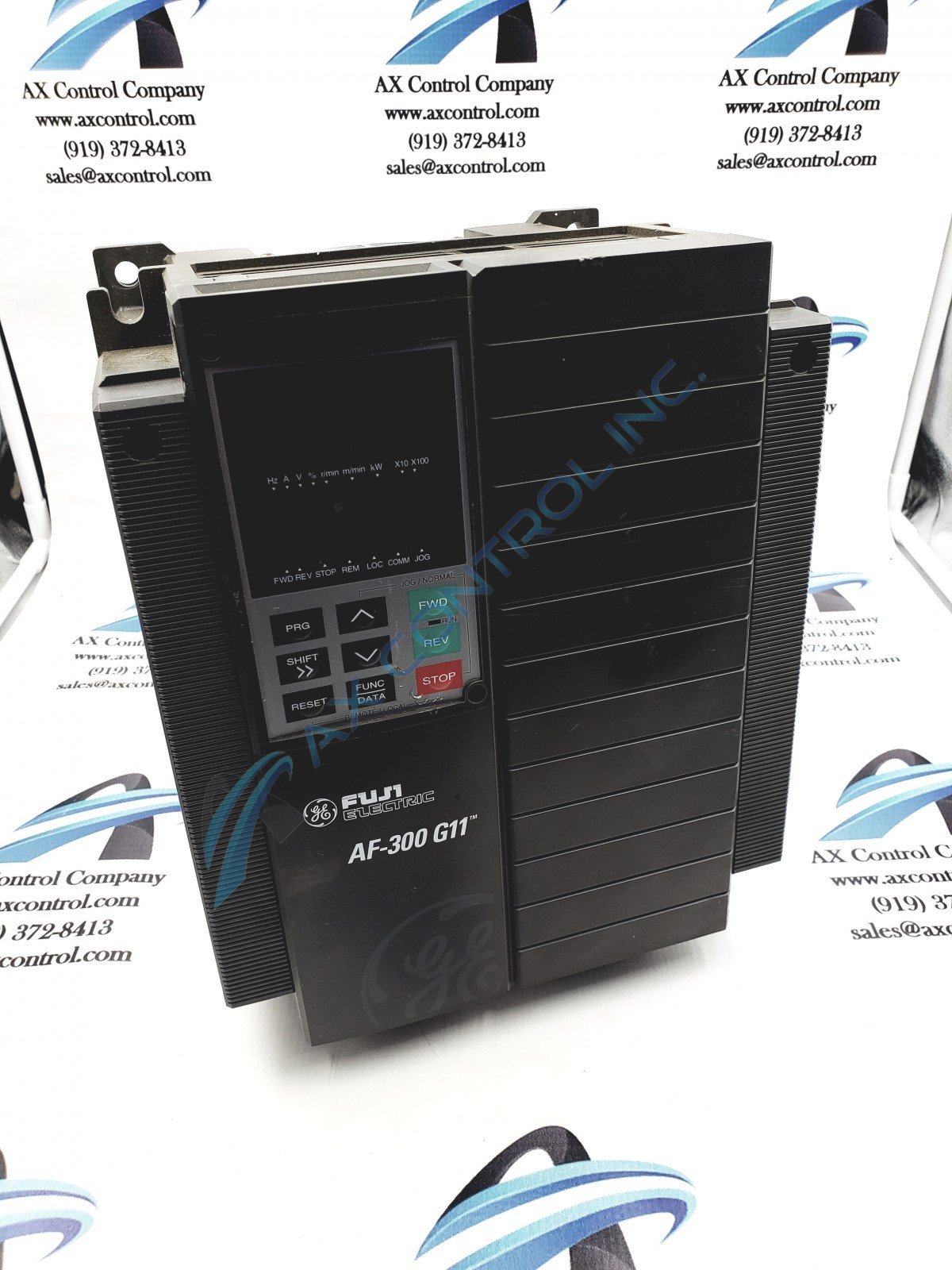

The AF-300 G11 Drive is part of General Electric's G11 Drive family. The drive can withstand ambient temperatures that are between -10 and 50 degrees Celsius. The dimensions of the drive are 8.66 x 10.25 x 7.68. To keep the drive safe from small debris and contaminants, This drive has a NEMA 1 enclosure. To keep the drive safe, the user must stay inside of a building. There is an option to replace the enclosure with a NEMA 4 of NEMA 12 for extra durability. There is a 3 section interface on the front of the drive. The LCD Screen shows functions and menus of the drive with a backlit display. There is also a numerical LED display that shows alarm codes and outputs. There is a 9 button keypad that helps set the functions and navigate the menus that appear on the LCD screen. To help a diverse array of possible users, there is 6 separate language options. The drive has features like auto restart, slip compensation, and a PID process controller.

The AF-300 G11 Drive uses its three phases to run at 7 horsepower with a rated current of 13 amps. The amperage of the drive can push it to a 150% overload for 1 minute. The rated capacity of the drive is 10KVA. The base frequency volleys between 25 and 400Hz. The drive volleys between 50 and 400Hz at max frequency.

The AF-300 G11 Drive has three input phases and an input voltage of 460VAC with a 50/60Hz frequency.

Repair Services For 6KG1143007X1B1

Type Lead Time Price Action
Repair Service 1-2 weeks $828

Our highly skilled technicians can repair your 6KG1143007X1B1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

6KG1143007X1B1 Manuals, White Papers, Data Sheets, and Troubleshooting
