The DS215TCQFG1AZZ01A Circuit Board with Firmware was manufactured for General Electric's Mark V Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS215TCQFG1AZZ01A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS215TCQFG1AZZ01A
  • SKU: DS215TCQFG1AZZ01AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS215TCQFG1AZZ01A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS215TCQFG1AZZ01A
Product Type Circuit Board and Firmware
Instruction Manual GEH-6195
Revision Quantity 1 Revision
Assembly Type DS215 Special Assembly

About the DS215TCQFG1AZZ01A

This DS215TCQFG1AZZ01A printed circuit board product offering was originally manufactured for use in General Electric's Mark V Turbine Control System Series, as alluded to above. As you can probably tell, the Mark V Series that this DS215TCQFG1AZZ01A PCB belongs to has specific applications in the management and control systems of compatible steam, gas, and wind turbine automated drive assemblies, and it is considered a General Electric legacy series given its eventual manufacturing discontinuation in the years following its initial conception. This DS215TCQFG1AZZ01A PCB is not the original Mark V Turbine Control System Series product offering of its particular functionality manufactured by General Electric; that would be the DS215TCQFG1AZZ01 parent printed circuit board missing this DS215TCQFG1AZZ01A PCB's A-rated functional product revision.

Hardware Tips and Specifications

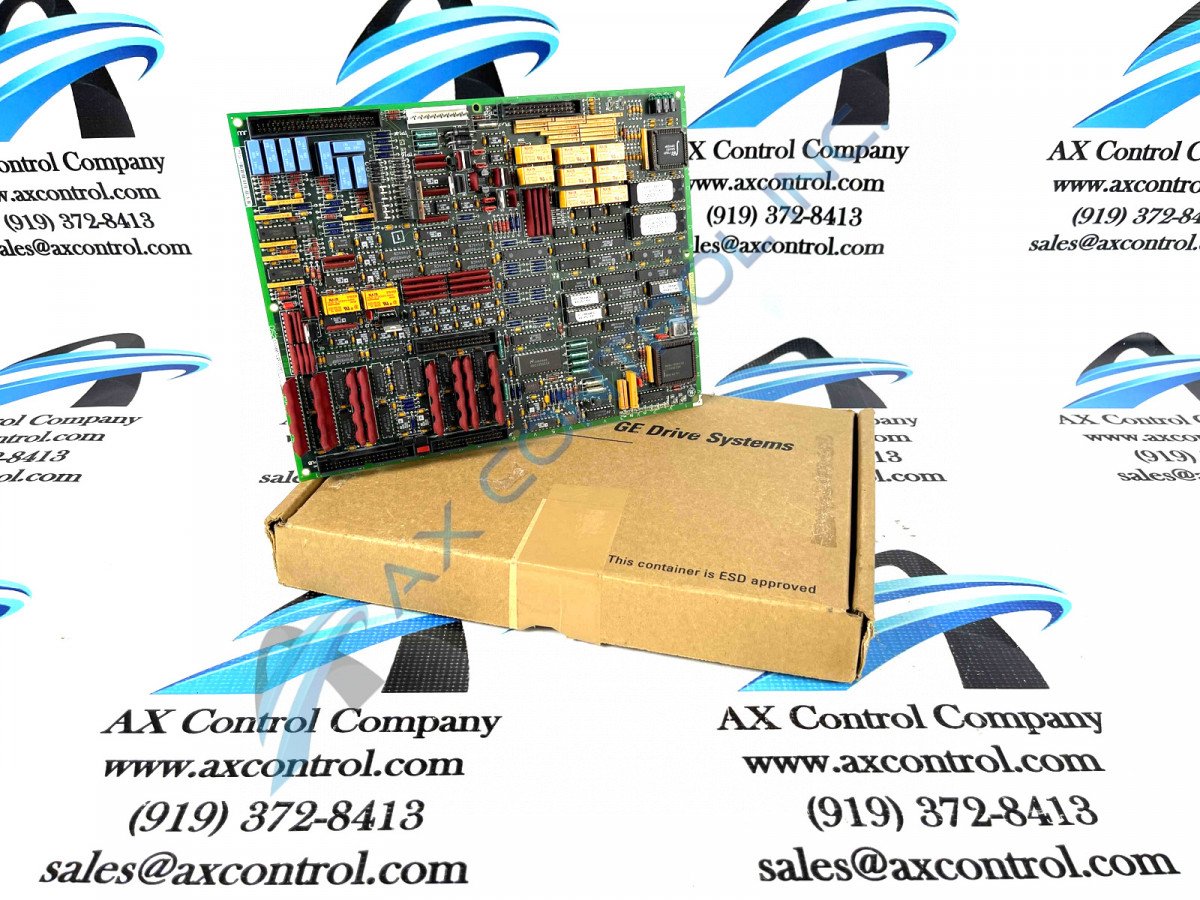

The DS215TCQFG1AZZ01A is a GE Speedtronic Mark V TCQF <Q> Core PCB. This board comes with firmware but is no longer being supported by GE. AX Control tries to keep it stocked but please contact us directly to find out its availability and price. The DS215TCQFG1AZZ01A is a large rectangular printed circuit board made for a Mark V turbine control system. This board does not come standard in a control system. It is an optional board that has the ability to replace a TCQB board.

The DS215TCQFG1AZZ01A has many components. There are five male pin connectors that have 50, 40, 36, and two 34 pin connections. There are two EPROMs on this board. On the bottom left side, the board contains 24 integrated circuits, 45 small yellow capacitors, 24 red resistor network arrays, 2 orange striped resistors, 6 dark blue resistors, 2 transistors, and 2 large yellow rectangle resistors. On the top left side, the board has 8 large blue rectangle resistors, 23 orange striped resistors, 10 dark blue resistors, 6 yellow resistor network arrays, 7 red resistor network arrays, 7 jumpers, 34 small yellow capacitors, 6 transistors, and two white resistors. On the right top side of the board are 17 yellow resistor network arrays, 8 yellow rectangle resistors, 48 yellow capacitors, 4 small white capacitors, 4 red resistor networks, a relay, 13 integrated circuits, and 8 blue resistors. On the bottom right side of the board, there are 22 integrated circuits, 15 orange striped resistors, 15 dark blue resistors, a jumper, an oscillator, 37 yellow capacitors, 5 light blue resistors, and 4 yellow resistor networks.

The above DS215TCQFG1AZZ01A hardware component inclusion and specification information is really more telling of this DS215TCQFG1AZZ01A product's lack of original instructional manual materials online than it is of the importance of these specifications. With this being true, the DS215TCQFG1AZZ01A functional product number can be considered an extremely-strong source of original DS215TCQFG1AZZ01A board hardware information, beginning with its dual-functional DS215 series tag. The DS215 series tag at the very beginning of the DS215TCQFG1AZZ01A functional product number is telling of this DS215TCQFG1AZZ01A PCB's special Mark V Series assembly version as well as its domestic location of original manufacture. Some of the other DS215TCQFG1AZZ01A Board hardware details embedded in functional elements of the DS215TCQFG1AZZ01A functional product number include this DS215TCQFG1AZZ01A device's TCQF functional product abbreviation, normal style of PCB coating, group one Mark V Series grouping, optional firmware package, and finally its A-rated functional product revision.

Frequently Asked Questions about DS215TCQFG1AZZ01A

What is DS215TCQFG1AZZ01A an optional card for?
DS215TCQFG1AZZ01A is an optional card for the Gas Heavy Duty prom set and will replace the TCQB card.
Which functions does DS215TCQFG1AZZ01A define?
DS215TCQFG1AZZ01A defines servo regulator control loops, DS215TCQFG1AZZ01A's configuration defines position milliamp outputs and inputs as well as voltage, thermocouple, and pulse rate inputs, and DS215TCQFG1AZZ01A defines regulator time constants, trace and tune definitions.
Where is DS215TCQFG1AZZ01A located?
DS215TCQFG1AZZ01A is in location 3 of either an < R >, < S >, or < T > core of a Mark V controller.
Which manual is best to use with DS215TCQFG1AZZ01A?
The manual that applies best to DS215TCQFG1AZZ01A is Manual GEH-6195. This manual is the Speedtronic Mark V Turbine Control Application Manual and this manual will help you greatly with Mark V applications, the manual will help you with DS215TCQFG1AZZ01A specifically, and the manual will help with most Mark V cards.

Reviews For DS215TCQFG1AZZ01A

Internal Review
(5.0)

This DS215TCQFG1AZZ01A Circuit Board with Firmware is something of a simply-named General Electric Mark V Series product that may downplay its true significance. This DS215TCQFG1AZZ01A PCB has a number of optional hardware adoptions, including a special Mark V Series assembly version, a special optional attached software package, and finally a Mark V Series-standardized A-rated functional product revision. - AX Control Lead Technician
