About the DS215SLCCG4AZZ01A
The DS215SLCCG4AZZ01A is one version of the LAN Communication Card created by General Electric. This DS215SLCCG4AZZ01A LAN Communication Card was originally designed and developed specifically for placement in the now-obsolete General Electric Mark V Turbine Control System Series. The Mark V Series that this DS215SLCCG4AZZ01A printed circuit board product offering belongs to, as hinted at through its full extended series name, has specific applications in the management and control systems of popular and compatible wind, steam, and gas turbine automated drive assemblies, and is now obsolete as its manufacture was discontinued by General Electric in one of the many years following its initial product series release. This DS215SLCCG4AZZ01A printed circuit board or PCB for short's greater Mark V Series is still a well-supported and desirable product series, however, as it exists as one of the final General Electric Mark product series to make use of the company's patented Speedtronic control system technology first release alongside the inception of the Mark I Series in the mid to later 1960s.
Hardware Tips and Specifications
This version is used within GE Mark V turbine control systems that do not require DLAN or ARCNET circuitry. There are three group numbers of SLCC LAN communication boards available; if you need a board that can be used with DLAN networks, please see our listings for SLCCG2 boards. If you need a board that can connect to both DLAN and ARCNET networks, please see our inventory of SLCCG1A boards. The DS215SLCCG4AZZ01A circuit board, like all LAN communication boards, has the potential to cause electric shock or burns. Please be sure anyone who installs or maintains this equipment has read through all associated documentation including manuals and user guides so they are familiar with guidelines and maintenance procedures. In terms of mounting for the DS215SLCCG4AZZ01A printed circuit board product offering, this DS215SLCCG4AZZ01A LAN Communications Card mounts to its greater Mark V Series automated drive assembly through the use of four standoffs located on the SDCC Drive Control Card; another Mark V Series product offering made available to our new and reconditioned inventory right here. This DS215SLCCG4AZZ01A printed circuit board is something of an interestingly-developed Mark V Series product; it possesses a special DS215-signified assembly version while also existing as a LAN Communications Card specifically due to its small general dimensions.

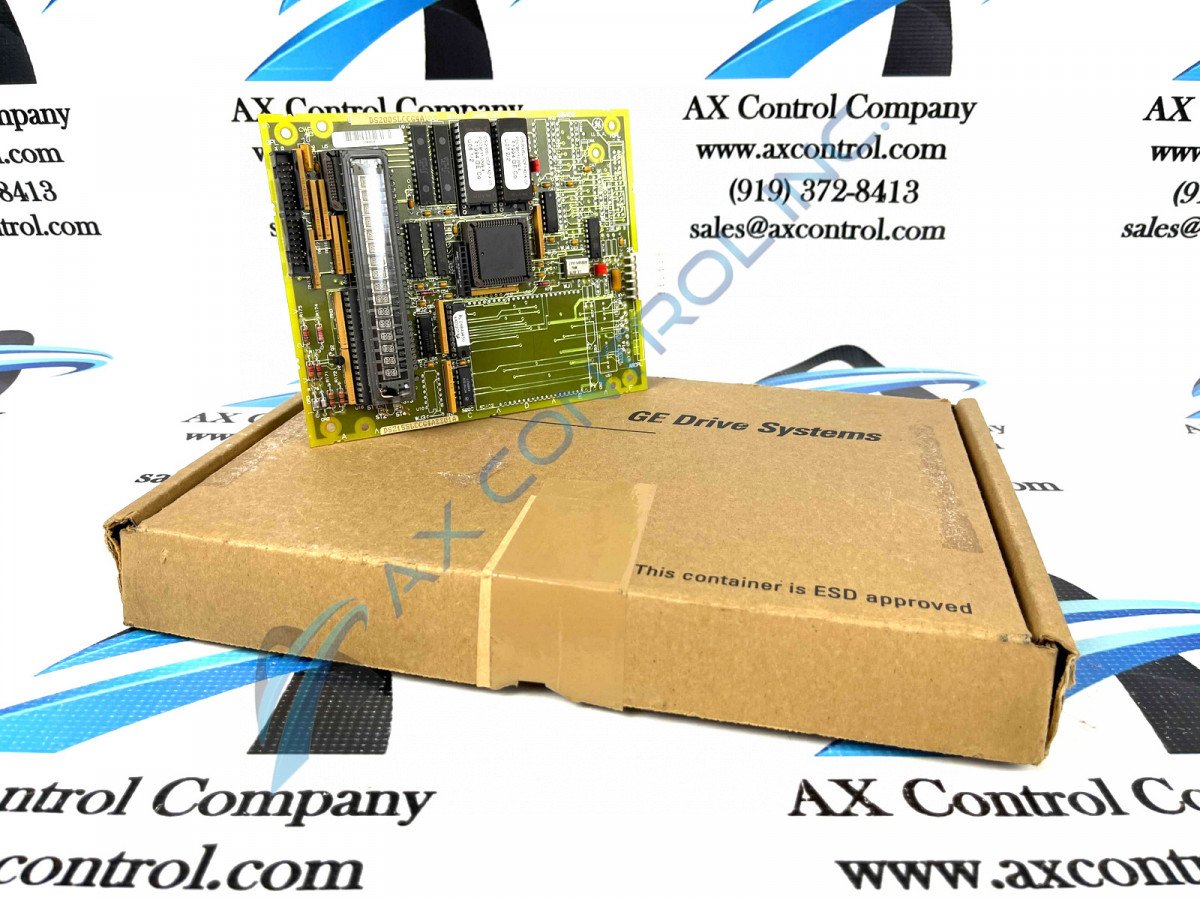

The DS215SLCCG4AZZ01A is built with both isolated and non-isolated circuits. These are used to create communication routes to the drive or the exciter. The board has a 16-digit alphanumeric display panel mounted on its surface. This board is not software configurable; however, the board has two replaceable EPROMs located at U6 and U7. These allow LCP software stored there to be moved or replaced. The control processor for the board is located at U1. However, the board is hardware configurable through wire jumpers and through several berg-type jumpers. Refer to original GE manuals and user guides for jumper configurations. The best practice is to duplicate all jumper settings on the board you are replacing. AX Control will typically ship out your parts the day we receive your order. Expedited shipping options are also available for even quicker turnaround times. This DS215SLCCG4AZZ01A LAN Communications Card's various jumper settings are explained in the DS215SLCCG4AZZ01A instructional manual attached in the manuals tab above for your convenience; each one of these jumpers is accompanied by a factory-printed nomenclature label; either the JP label for Berg-type manually-moveable hardware jumpers or the WJ label for hard-wired jumpers. This DS215SLCCG4AZZ01A PCB's assembly is impacted by its optional acceptance of an A-rated functional product revision and an optional software package.
