DS215SLCCG2AZZ01A Technical Specifications

Instruction Manual GEI-100162
Manufacturer GE General Electric
Part Number DS215SLCCG2AZZ01A
Product Type LAN Communications Card
Series Mark V

Product Description

General Electric developed the DS215SLCCG2AZZ01A for the Mark V board series as a LAN communications card. Circuits, both isolated and non-isolated, help to perform communications between the drive and local area networks (LAN). This LAN card provides users with network communication capabilities with the drive. A microprocessor and onboard system memory are integrated into the card. This device allows for DLAN network communications only.

A LAN control processor, or LCP, is the principle microprocessor on the card. DS215SLCCG2AZZ01A provides network communications access to the drive via this LCP. On board, two EPROM spaces serve as LCP software storage spaces. Additional RAM memory serves as the communication space between the processor and the drive control processor. Connections across the board provide all system interface points for the board. Power supplies are connected at point 2PL while 3PL serves as an access point for the drive control card. LAN I/O terminal boards connect to the LCP at point 10PL. DLAN network access is also found on the board. System parameters, diagnostics, and settings are available for access via a connected module programmer. An attached alphanumeric keypad allows users to alter and view data as needed.

Installation parameters provided by General Electric should be followed to ensure that both the card as well as the drive operate within its prescribed bounds. The series manual and the device datasheet contains a complete guide to wiring and installing the DS215SLCCG2AZZ01A. General Electric, the manufacturer, was the original provider of technical support for the drive.

Our friendly and experienced staff at AX Control is ready to assist with all of your automation needs. Current prices and availabilities for all parts and repairs is available by contacting our sales team by phone or email.

Frequently Asked Questions about DS215SLCCG2AZZ01A

Which networks can DS215SLCCG2AZZ01A connect to?
DS215SLCCG2AZZ01A can only connect the drive to DLAN networks with the circuitry DS215SLCCG2AZZ01A has. The DS215SLCCG1A_ _ SLCC group can connect to both the DLAN and ARCNET networks but DS215SLCCG2AZZ01A can only connect to DLAN as seen with the "G2" in DS215SLCCG2AZZ01A's model number.
What connectors does DS215SLCCG2AZZ01A have?
DS215SLCCG2AZZ01A interfaces with other boards of the controller, external signals, and the network through 5 connectors. The connectors DS215SLCCG2AZZ01A has are: 2PL, 3PL, 10PL, ARCPL, and KPPL. To see descriptions of each of DS215SLCCG2AZZ01A's connectors, view the card connections section in the manual for DS215SLCCG2AZZ01A - Manual GEI-100162.
Where can I find a diagram of DS215SLCCG2AZZ01A?

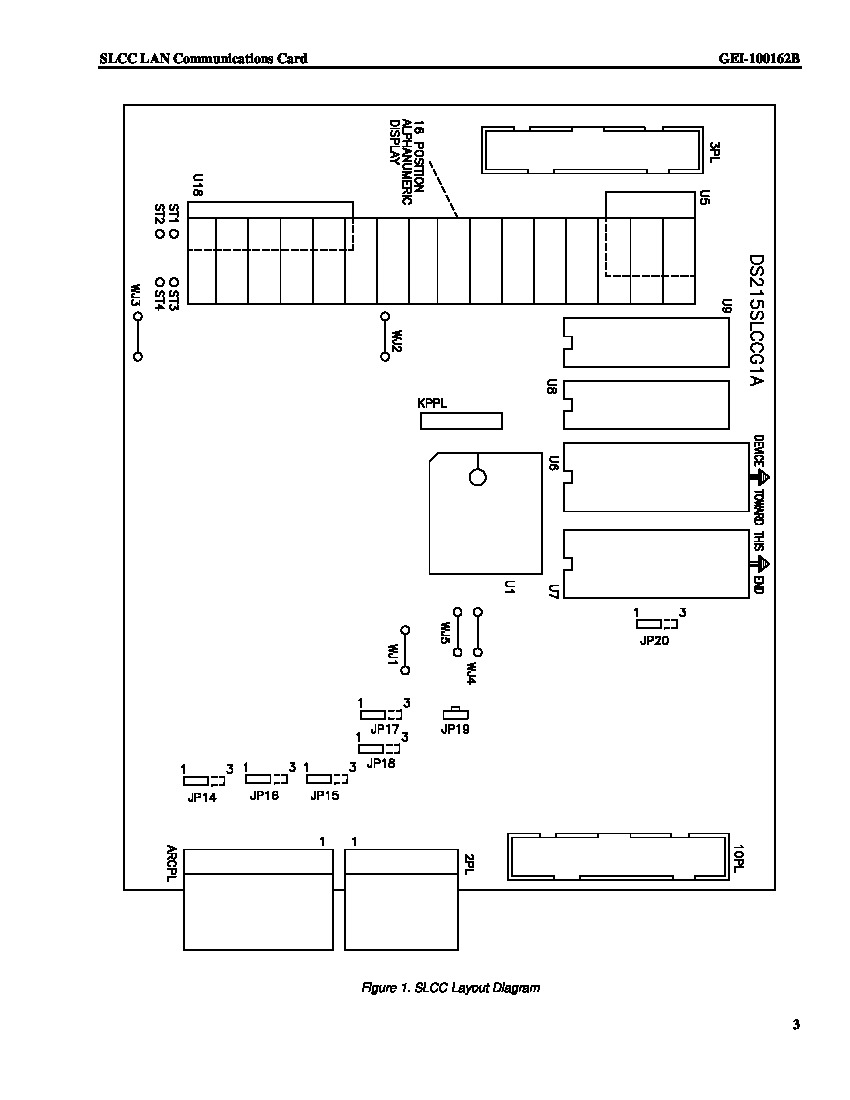

You can find a diagram of DS215SLCCG2AZZ01A in the manual for DS215SLCCG2AZZ01A - Manual GEI-100162. Figure 1 in the manual for DS215SLCCG2AZZ01A is a SLCC Layout Diagram.
Where can I find the manual for DS215SLCCG2AZZ01A?
We can send you a link to the manual for DS215SLCCG2AZZ01A. The manual for DS215SLCCG2AZZ01A is the GE Motors and Industrial Systems LAN Communications Card Manual for DS215SLCCG2AZZ01A. For a copy of the manual, send us a request for Manual GEI-100162.
