DS215SLCCG1AZZ01B Technical Specifications

Instruction Manual GEI-100162B
Manufacturer GE General Electric
Part Number DS215SLCCG1AZZ01B
Product Type LAN Communications Card
Series Mark V

Product Description

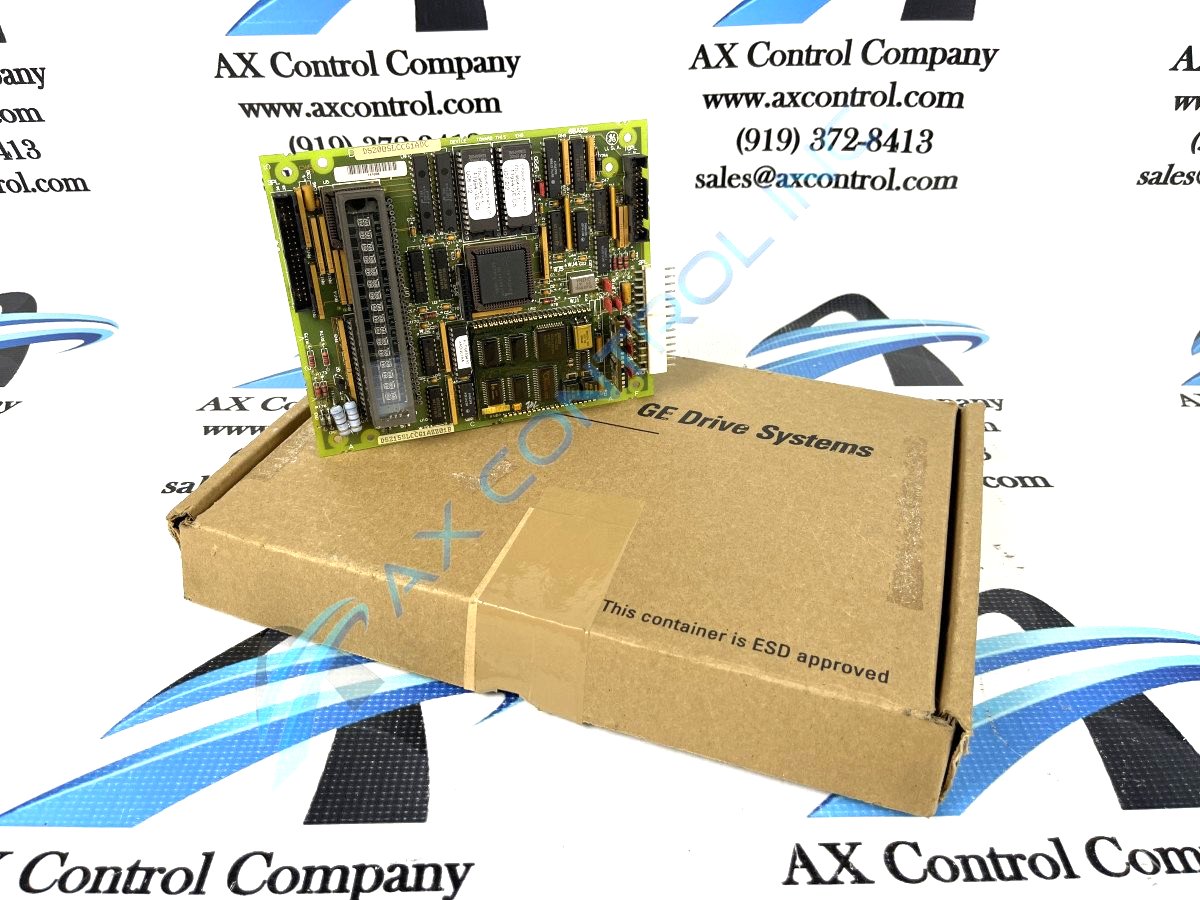

DS215SLCCG1AZZ01B is a LAN communication board designed by General Electric for their Mark V board series. Local area network (LAN) communications are performed by the isolated and non-isolated circuits found on the board. Drive communications via a local network are executed using this LAN card. Featured on the card are a principle microprocessor as well as system memory space. This board is capable of communicating via DLAN and ARCNET local networks.

The board features a LAN control processor, or LCP, that executes system communications. Network communications to and from the DS215SLCCG1AZZ01B are processed using this LCP. Two EPROM slots serve as onboard storage for the LCP software. Communications between the drive control processor (DCP) and the LCP occur in dedicated RAM memory space. A number of connections are available on the board to allow interfacing with a variety of system features. Position 2PL serves as the power supply connection while 3PL provides an input point for the drive’s control card. 10PL provides a LAN I/O terminal board connection for the LCP. DLAN and ARCNET communications are possible using the ARCPL connection. A module programmer and alphanumeric keypad provides users with system access to diagnostics and settings.

General Electric provides some installation and storage parameters that should be met to protect the board as well as the drive. The device datasheet and manual contains a complete wiring and installation guide for the DS215SLCCG1AZZ01B. Technical support for this board was originally provided by General Electric, the manufacturer.

AX Control’s trusted sales staff is happy to help with all of your automation needs. Please contact a member of our team by phone or email to receive current prices and availabilities on all parts and repairs.

Frequently Asked Questions about DS215SLCCG1AZZ01B

Does DS215SLCCG1AZZ01B have a display?
Yes, DS215SLCCG1AZZ01B features a 16-position alphanumeric display, and display controller U18, which makes DS215SLCCG1AZZ01B connect to the programmer module. The programmer module mounts on DS215SLCCG1AZZ01B and plugs into connector KPPL.
What hardware is included with DS215SLCCG1AZZ01B?
DS215SLCCG1AZZ01B has configurable hardware that consists off berg-type or manually movable hardware jumpers, and wire jumpers. The berg-type jumpers on DS215SLCCG1AZZ01B are identified by a JP nomenclature and the wire jumpers on DS215SLCCG1AZZ01B are identified by a WJ nomenclature.
What networks does DS215SLCCG1AZZ01B connect to?
DS215SLCCG1AZZ01B can connect to both the DLAN and ARCNET networks through DS215SLCCG1AZZ01B's circuitry. DS215SLCCG1AZZ01B has both isolated and non-isolated circuits for communications to the drive or exciter.
What is described in the manual for DS215SLCCG1AZZ01B?
The manual for DS215SLCCG1AZZ01B, Manual GEI-100162, is the GE Motors and Industrial Systems LAN Communications Card Manual. This manual provides a functional description of DS215SLCCG1AZZ01B, including DS215SLCCG1AZZ01B connections and mounting DS215SLCCG1AZZ01B. The manual provides application data for DS215SLCCG1AZZ01B, including configurable hardware and software. And the manual for DS215SLCCG1AZZ01B provides a section on renewal/warranty replacement for DS215SLCCG1AZZ01B.
