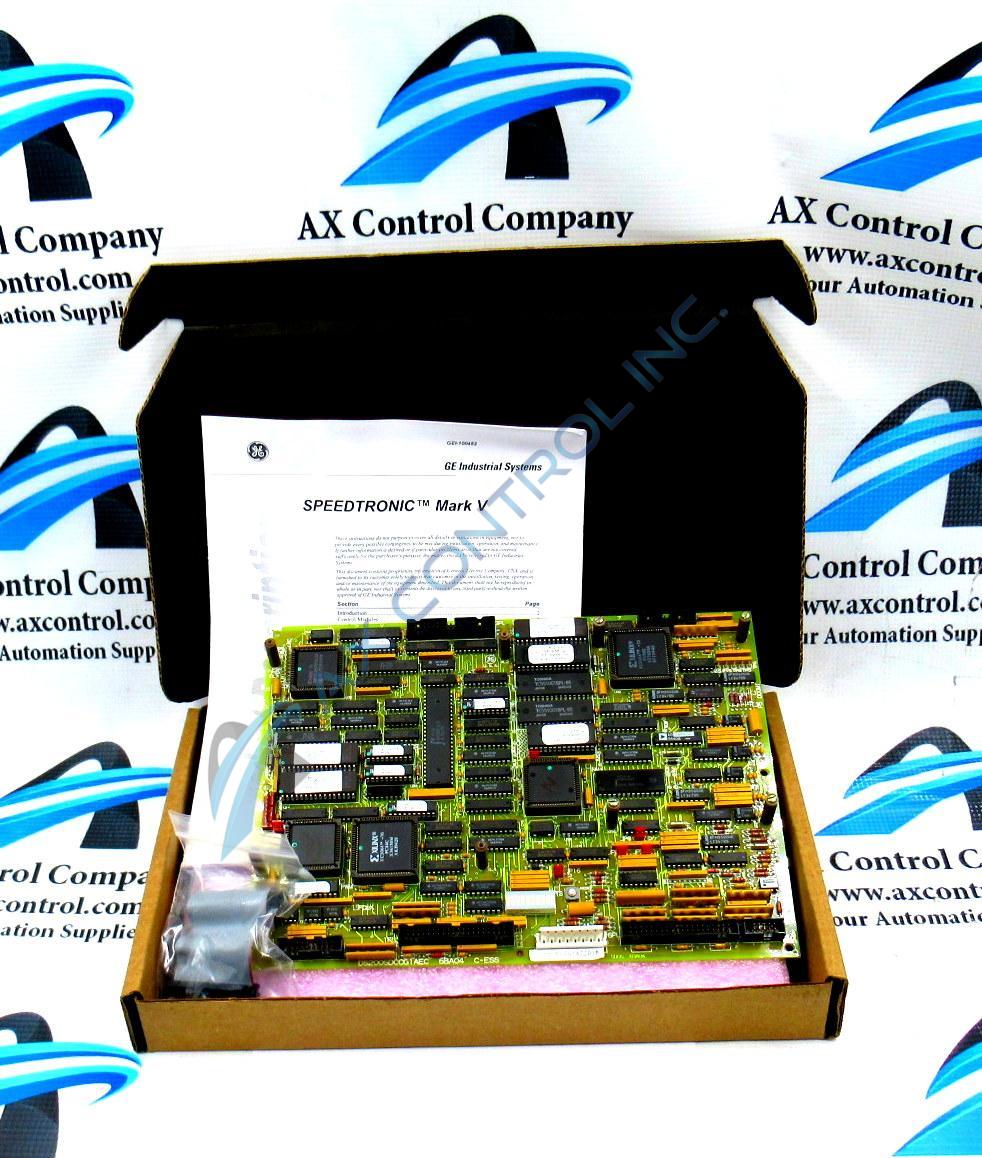

The DS215SDCCG1AZZ01A Drive Control Card was manufactured by General Electric for use in the Mark V Series of turbine control systems.



Sell Surplus: Have a DS215SDCCG1AZZ01A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS215SDCCG1AZZ01A
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS215SDCCG1AZZ01A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS215SDCCG1AZZ01A
Functional Description Drive Control Card
Instruction Manual GEI-100029
Functional Acronym SDCC
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 Z
Artwork Revision Z

Product Description

The General Electric DS215SDCCG1AZZ01A is a drive control card developed for the Mark V series of boards. Contained on this card is the primary control circuitry as well as the system software. Uses for this card include drive applications for AC2000, DC2000, and EX2000 series drives. The Mark V Series that this DS215SDCCG1AZZ01A product belongs to is one of the final General Electric product series to make use of the patented Speedtronic control system technology first introduced alongside the rollout of the Mark I Series in the late 1960s. The Mark V Speedtronic Series is also considered a General Electric legacy series given its eventual discontinuation by its original manufacturer in the years following its release. This DS215SDCCG1AZZ01A printed circuit board, while definable as a Drive Control Card in its own right, is not the originally-designed product of this functionality to feature within the Mark V Series; that would be the DS215SDCCG1 Drive Control Card missing this DS215SDCCG1AZZ01A product's A-rated functional product revision and optional firmware package.

Hardware Tips and Specifications

The board consists of three microprocessors as well as a dual ported RAM, and necessitates another series of important hardware component inclusions and specifications given its particular Mark V Series intended functionality. Microprocessors found on DS215SDCCG1AZZ01A include a drive control processor (DCP), a motor control processor (MCP), and a co-motor processor (CMP). Peripheral functions as well as analog and digital I/O are processed using the DCP. Programs such as address decoders, wait-state generators, and interrupt controllers are all executed with this processor. The MCP performs motor control functions as well as system I/O functions. If the processing power of the MCP is not enough to perform control algorithms, the CMP will take over. This processor possess the extra processing power required to compute advanced mathematical calculations. Storage space is integrated into the five memory chips found on the drive. Fault code display occurs using the bank of ten on-board LEDs. Codes will display to users in either binary coded decimal (BCD) or binary form. While several DS215SDCCG1AZZ01A board-specific hardware components are available to this DS215SDCCG1AZZ01A product's assembly, so too are its Mark V Series-standardized hardware components, beginning with its basic series of voltage-limiting elements. Manifesting themselves in the forms of various capacitors, resistors, and diodes attached to the base board of this DS215SDCCG1AZZ01A product, these hardware elements are used for basic voltage storage and protection, and should be well-protected beneath this DS215SDCCG1AZZ01A product's thick normal style of PCB coating.

Before making any final purchase decision on this DS215SDCCG1AZZ01A product offering, its is important to realize that this DS215SDCCG1AZZ01A PCB has been altered from its originally-introduced performance specifications and dimensions through its inclusion of an A-rated functional product revision and an optional Mark V Turbine Control System Series software package, as revealed at the end of the DS215SDCCG1AZZ01A functional product number. GE provides storage and installation parameters that should be met to ensure the card and its installed drive functions properly. A complete installation guide for the card is available in the part’s manual as well as the datasheet. Technical support for DS215SDCCG1AZZ01A was originally provided by General Electric. AX Control’s trusted and experienced sales team is available to help with all of your automation needs. To receive current prices for all parts and repairs, please contact our staff by phone or email.

Frequently Asked Questions about DS215SDCCG1AZZ01A

What is so important that DS215SDCCG1AZZ01A has?
DS215SDCCG1AZZ01A has the primary control circuitry and software for a drive or exciter so it is very important that you have DS215SDCCG1AZZ01A before trying to operate a drive.
What three main microprocessors does DS215SDCCG1AZZ01A have?
DS215SDCCG1AZZ01A has three main microprocessors, which include DS215SDCCG1AZZ01A's drive control processor (DCP), DS215SDCCG1AZZ01A's motor control processor (MCP), and DS215SDCCG1AZZ01A's co-motor processor (CMP).
Which drive applications is DS215SDCCG1AZZ01A used in?
DS215SDCCG1AZZ01A is used in AC2000, DC2000, and EX2000 drive applications. We know this because of the "1A" in DS215SDCCG1AZZ01A's model number. "3A" and "4A" SDCC boards are used in different applications while DS215SDCCG1AZZ01A is used in the three named.
Where can I get the manual for DS215SDCCG1AZZ01A?
We can send you the manual to DS215SDCCG1AZZ01A via email or hard copy of manual. The manual for DS215SDCCG1AZZ01A is Manual GEI-100029 and the manual is the GE Motors and Industrial Systems Drive Control Card Manual. The manual specifies DS215SDCCG1AZZ01A.

Reviews For DS215SDCCG1AZZ01A

Internal Review

This board is designed to interface with multiple other boards using its eight connectors. This includes a power supply/interface board, a LAN communications card, a drive terminal board, a signal processor card or a multibridge signal processing card, and a drive terminal board or a simple drive terminal board. Read more about these connections in associated manuals and user guides to learn about this once-revised Mark V Series product. - AX Control Lead Technician
