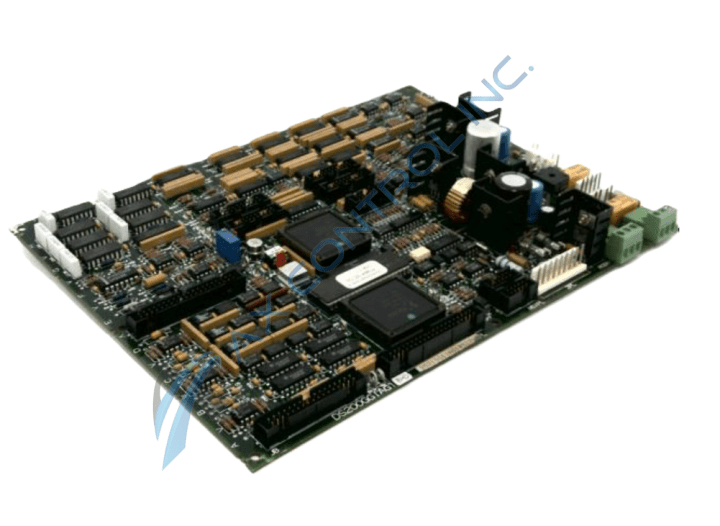

The DS215GGIAG1BZZ01B Generator Board was manufactured for General Electric's Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS215GGIAG1BZZ01B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS215GGIAG1BZZ01B
  • SKU: DS215GGIAG1BZZ01BGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS215GGIAG1BZZ01B Technical Specifications

Manufacturer General Electric
Series Mark V
Part Number DS215GGIAG1BZZ01B
Functional Description GGIAG1B & FW
Functional Acronym GGIA
PCB Coating Normal Coating
Revision Quantity 1 Revision
Assembly Type DS215 Special Assembly
Mark V Series Grouping Group 1

About the DS215GGIAG1BZZ01B

The DS215GGIAG1BZZ01B is a circuit board component that was fabricated by GE. It was typically used within the EX2000 voltage regulator module connected to the Mark V gas/steam turbine control system. The MKV was one of the later of the Speedtronic systems. It included online archiving with up to a month of data immediately available. The MKV uses interfaces like RS232 Modbus, ARCnet, and Ethernet for communication. It offers redundant and modular backups on communications and other systems. The DS215GGIAG1BZZ01B is no longer manufactured by GE but is available through AX Control as a reconditioned unit, as an edited version of the original DS215GGIAG1BZZ01 Generator Board with Firmware.

Hardware Tips and Specifications

As with any printed circuit board available to General Electric's Mark V Turbine Control System Series, this DS215GGIAG1BZZ01B printed circuit board with firmware is accompanied by its own series of functionality-inducing hardware component inclusions and specifications. The DS215GGIAG1BZZ01B is factory drilled at each corner to allow for mounting.  The board has multiple connectors on its surface, including two small terminal strips with three connections on each strip, ten vertical pin cable connectors with a varying number of pins, six vertical header connectors, and several stab-on connectors. Other board components include five fuses in fuse holder clips, over four dozen resistor network arrays, LED indicators, a potentiometer, and jumper switches. The board has TP test points primarily located on the right board edge; these allow users to connect test clips to check voltage levels. The DS215GGIAG1BZZ01B board also has an inductor coil, heat sinks, three relays, transistors, and various resistors, diodes, and capacitors; numerous Mark V Series-standardized hardware components intended primarily for surge suppression and voltage limitation purposes.

The above information represents the various hardware components visible in this DS215GGIAG1BZZ01B printed circuit board's assembly upon a diligent visual inspection of the DS215GGIAG1BZZ01B product itself. This was deemed necessary given the low amount of original DS215GGIAG1BZZ01B factory-printed instructional manual materials available on the internet for research purposes. Given this noted lack, the DS215GGIAG1BZZ01B PCB's DS215GGIAG1BZZ01B functional product number is additionally considered a fine source of DS215GGIAG1BZZ01B board-specific hardware information, beginning with the DS215 series tag detailing this DS215GGIAG1BZZ01B PCB's special Mark V Series motherboard-style assembly as well as its domestic location of original manufacture. Some of the other relevant DS215GGIAG1BZZ01B hardware details embedded in functional chunks in its alphanumeric product number include:

  • The GGIA functional product acronym
  • A group one Mark V Series product grouping
  • A normal style of PCB surface coating
  • An optional software package installed
  • A B-rated functional product revision

The normal style of PCB coating that has been applied to the base circuit board of this DS215GGIAG1BZZ01B product offering envelops and insulates individual DS215GGIAG1BZZ01B board hardware components on a functional priority basis. Additional and more detailed technical support can be found through original publications from General Electric, including data sheets and product manuals. Please use these products for detailed information regarding the installation and proper handling of this product. Before making any final purchase decision on this DS215GGIAG1BZZ01B PCB, it is crucial to consider that its originally-introduced performance specifications and dimensions have almost certainly been impacted by this DS215GGIAG1BZZ01B printed circuit board's possession of a B-rated functional product revision.

Frequently Asked Questions about DS215GGIAG1BZZ01B

Which part of the DS215GGIAG1BZZ01B functional product number reveals this DS215GGIAG1BZZ01B Generator Board's possession of an optional software package?

This DS215GGIAG1BZZ01B Board's optional firmware package is indicated by the presence of the BZZ01 tag in the DS215GGIAG1BZZ01B functional product number.

Would this DS215GGIAG1BZZ01B Generator Board be protected by any sort of warranty upon my purchase here?

Yes. Immediately following your original purchase from AX Control, this DS215GGIAG1BZZ01B PCB and many others would be considered protected by our guaranteed three-year PCB warranty.

Reviews For DS215GGIAG1BZZ01B

Internal Review
(5.0)

This DS215GGIAG1BZZ01B printed circuit board or PCB for short is defined functionally as a Generator Board in its original Mark V Turbine Control System Series instructional materials, although this description does not reveal its DS215GGIAG1BZZ01B number-indicated Mark V Series motherboard status. This DS215GGIAG1BZZ01B PCB is available for repair or replacement, and has a B-rated functional product revision. - AX Control Lead Technician
