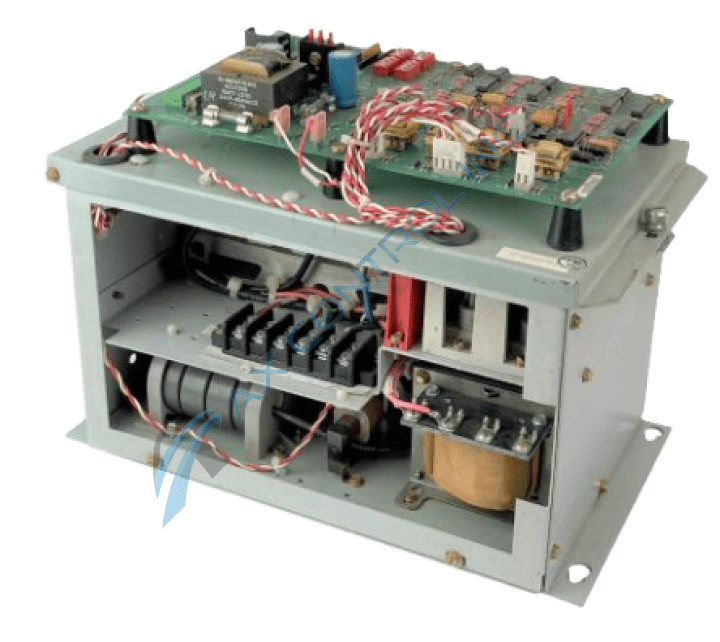

This DS2020BRCAG3 Brake Control Assembly was manufactured for the Mark V Series of esteemed industrial manufacturer General Electric.



Sell Surplus: Have a DS2020BRCAG3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS2020BRCAG3
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS2020BRCAG3 Technical Specifications

Altitude max. of 2000 m
Manufacturer GE General Electric
Relative Humidity 5-95% non-condensing
Vibration 1.0 G horizontal at 15-120 Hz
Series Mark V
Part Number DS2020BRCAG3
Product Type Brake Control

Product Description

The DS2020BRCAG3 model is part of the Mark V Series produced by General Electric. This module is described as a 15 Amps Brake Control. When the module is being used within the Mark V Series the unit can hypothetically be used with either triple modular redundant (TMR) or simplex redundant applications. When used in simplex or TMR applications the control also has the ability to be used with steam or gas turbine prime mover applications. Another feature of this control, when used in this series, is that it has the potential to be maintenenced online, online maintenance indicates that the controller does not have to be turned off or powered down.This control is considered obsolete because it is no longer being actively produced by General Electric. Information is not readily available on this control but the information found in the GEI-100460 Product Description Guide can be used when operating the DS2020BRCAG3 control.

Hardware TIps and Specifications

This DS2020BRCAG3 printed circuit board from General Electric is a Brake Control product with not a whole lot of original Mark V Series instructional manual materials that describe it in great detail available on the internet. This is likely a function of this DS2020BRCAG3 15 Amps Brake Control's status as an obsolete Mark V Series product. While this is unfortunately true, it is still possible to curate a product-specific hardware page for this DS2020BRCAG3 PCB thanks to the functionality of the DS2020BRCAG3 product number itself.

The DS2020BRCAG3 functional product number begins with the DS2020 series tag, which has dual naming conventions for this Mark V Series printed circuit board. The DS2020 series tag designates this DS2020BRCAG3 Brake Control Card as a domestically-manufactured General Electric product with a DS2020-signfied special assembly type. This DS2020 series tag is followed in the DS2020BRCAG3 functional product number by the BRCA functional acronym, which was created to exist as a convenient shorthand promotional or conversational alternative to the lengthy DS2020BRCAG3 functional product number. This BRCA functional acronym itself is followed in the DS2020BRCAG3 functional product number, by an instance of the G3 Mark V Series grouping tag. This DS2020BRCAG3 product number's G3 series grouping tag, much like its DS2020 series tag, is considered to possess dual naming conventions for this General Electric product; specifying it to be a Mark V group 3 series-grouped product offering that is protected by the rudimentary base layer of protection offered by the normal style of printed circuit board protective coating.

Frequently Asked Questions about DS2020BRCAG3

How many amps is DS2020BRCAG3?
DS2020BRCAG3 is a 15 amp brake control.

What type of special assembly does this DS2020BRCAG3 Brake Control Card Assembly have?

This DS2020BRCAG3 Brake Control Card Assembly has a DS2020 special assembly, which seems to indicate the presence of multiple General Electric printed circuit boards in its internal assembly.

Reviews For DS2020BRCAG3

Internal Review

This module can potentially be used with triple modular redundant architecture which allows for use with steam or gas turbine prime movers. All information needed to determine how the model will operate is found in the attached GEI-100482 manual, although this is a more general Mark V Series instructional manual that doesn't discuss the DS2020BRCAG3 PCB specifically. This DS2020BRCAG3 Brake Control Card Assembly is the original assembly offered by General Electric, as it features no significant product revisions. - AX Control Lead Technician
