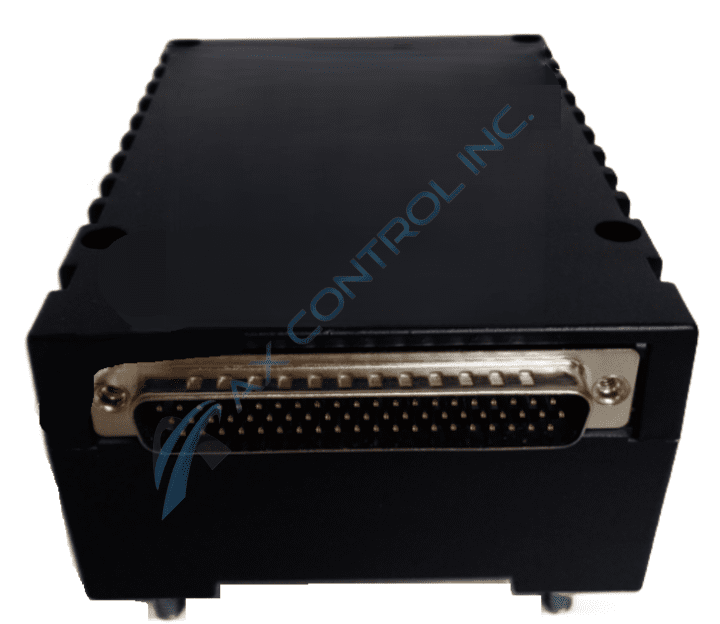

About the DS2020ACSAG2
The DS2020ACSAG2 board comes with hardware inputs and outputs such as pulse rate inputs, temperature monitoring, master trip circuits, and more. For all of the different hardware inputs and outputs refer to the GEI-100460 Product Description Instruction Guide. The master trip circuits are used to help with turbine protection through the inputs and outputs from the Mark V systems. Some basic features of the DS2020ACSAG2 are the ability to be used with triple modular redundant architecture, the ability to run simple diagnostics testing, and online maintenance; online maintenance allows for the board to be removed and repaired while the remainder of the Mark V series is also online and no power off is required. With diagnostics testing, this board can run routines for:
- background
- power-up,
- manually initiated diagnostics routines
DS2020ACSAG2 CS Caps Module Product Number
The DS2020ACSAG2 CS Caps Module's normal style of PCB coating applied to its base circuit board was discovered upon a diligent breakdown of the functional DS2020ACSAG2 product number, which can be considered a great source of original DS2020ACSAG2 board hardware information given this product's eventual manufacturing discontinuation and the relative absence of its pertinent instructional manual materials. The DS2020ACSAG2 functional product number begins with the DS2020 series tag, which is dual functional; defining this DS2020ACSAG2 product offering's modular special style of Mark V Series assembly as well as its domestic original manufacture location. The DS2020 functional product acronym is followed by other functional naming chunks in the DS2020ACSAG2 product number defining this DS2020ACSAG2 PCB's:
- ACSA functional product abbreviation
- Normal style of PCB protective coating
- Group 2 Mark V Series grouping
- Absence of any functional or artwork revision
