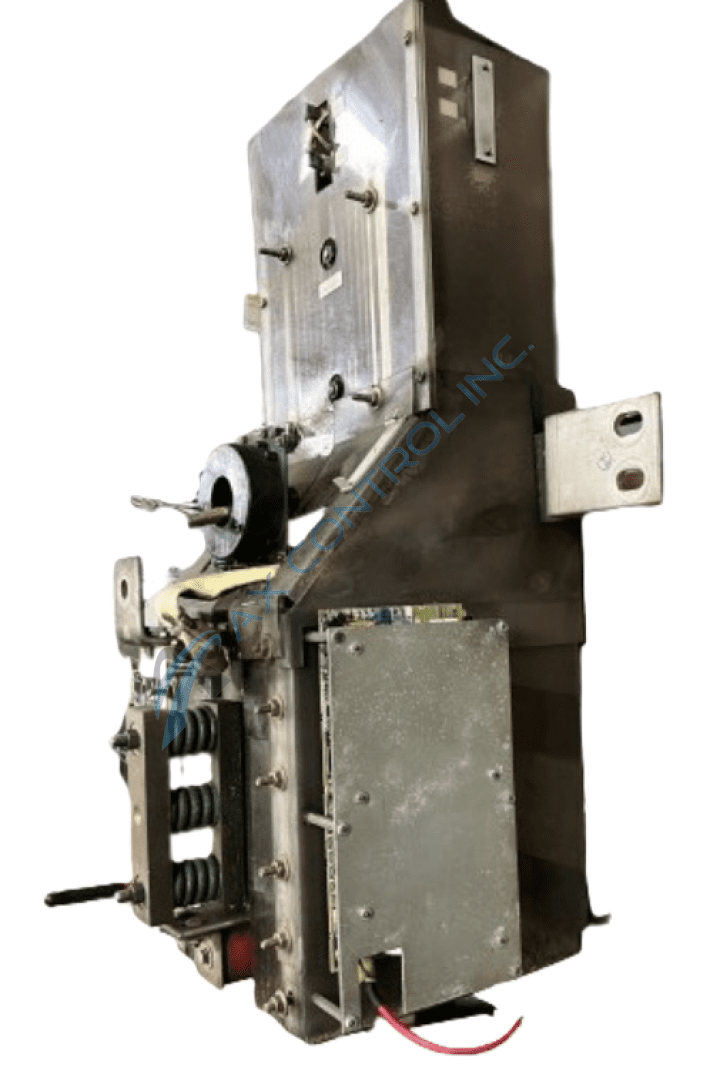

The DS2020ACHAG3 is a Regenerative Chopper Circuit Board manufactured by GE Industrial Systems for their Mark V series.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS2020ACHAG3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS2020ACHAG3
  • SKU: DS2020ACHAG3GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS2020ACHAG3 Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS2020ACHAG3
Functional Description AC2000 Regenerative Chopper
Functional Acronym ACHA
PCB Coating Normal Coating
Functional Revision 1 G3

About the DS2020ACHAG3

This DS2020ACHAG3 device is a part of the DS200 set of printed circuit boards, which are available from us here at AX Control Inc. Our hardware is available as both items from surplus products, or as used, pre-owned yet re-optimized products. The DS200 printed circuit boards are designed to aid in the applications for the Speedtronic series of turbine management systems; specifically, their Mark V modules. This printed circuit board is listed under the alphanumeric code of DS2020ACHAG3. This particular DS2020ACHAG3 product offering, while not edited by any major product revisions functional or otherwise, is not a standard Mark V Speedtronic control system series product, as it makes use of a special modular assembly as represented by the DS2020 tag in the DS2020ACHAG3 functional product number.

Hardware Tips and Specifications

The DS2020ACHAG3 unit is one of the many circuit boards offered in a General Electric Speedtronic product series, and is outfitted as a Regenerative Chopper circuit board. The circuitry for the regenerative chopper module is able to convert a fixed amount of DC voltage, and into an adjustable amount of regenerative DC voltage. Unfortunately enough for the purposes of this DS2020ACHAG3 product's personalized product page, this DS2020ACHAG3 printed circuit board belongs to a now-obsolete legacy product series. Given this attribution, it would appear that none of this DS2020ACHAG3 printed circuit board product offering's original instructional manual materials are available for online research purposes. With this being true, alternative informational sources including the DS2020ACHAG3 functional product number itself gain a new importance. This DS2020ACHAG3 PCB's functional product number begins with the DS2020 series tag as mentioned before. This DS2020ACHAG3 PCB's DS2020 series tag is dual functional, however, as it indirectly asserts this DS2020ACHAG3 product's special modular assembly style as well as its domestic location of original manufacture. Some of the other information revealed through functional chunks of the DS2020ACHAG3 functional product number include this DS2020ACHAG3 Regenerative Chopper Module's:

  • ACHA functional product abbreviation
  • Normal PCB coating style
  • Group three Mark V Series product grouping
  • Absence of any significant product revision

The normal style of PCB coating applied to this DS2020ACHAG3 PCB's base circuit board exists as a thick chemically-applied layer of circuit board protective coating that envelops and protects individual DS2020ACHAG3 board hardware elements on a functional priority basis.

The Speedtronic Mark V units are able to manage and control the power generation applications of the system. These units are also available from our inventory of surplus and re-optimized hardware. AX Control Inc. is able to provide the DS2020ACHAG3 Regenerative Chopper Circuit Board as a part of our in stock items. Our units are covered by our unparalleled, unmatched protective warranty. Our used, pre-owned materials are reconditioned and re-optimized by our on-site, professionally trained staff of technicians. We also are able to provide an option to lower our price quote offered. You can utilize our exchange credit program in exchange for sending in industrial materials, which we then repair and resell or dispose of if it is too damaged.

Frequently Asked Questions about DS2020ACHAG3

Where specifically was this DS2020ACHAG3 modular assembly product offering manufactured?

This DS2020ACHAG3 module's original manufacture location can be traced specifically to General Electric's Salem, Virginia factory plant location.

Does this DS2020ACHAG3 Regenerative Chopper Module exist with a repair option here at AX Control?

Yes. This DS2020ACHAG3 Regenerative Chopper Module is available for repair or replacement here today, with a standard three-year PCB warranty guaranteed.

Reviews For DS2020ACHAG3

Internal Review
(5.0)

This DS2020ACHAG3 Modular Assembly product was originally designed and manufactured for placement in General Electric's Mark V legacy control system series, as mentioned before. This DS2020ACHAG3 Regenerative Chopper Module has unconfirmed placements in the AC2000 General Electric subseries as well, given its sparse naming in fringe instructional manual materials as an AC2000 Regenerative Chopper. This DS2020ACHAG3 module belongs to the third Mark V Series grouping, and is available here today for both repair and replacement. - AX Control Lead Technician
