DS200UPLAG1AAA

About the DS200UPLAG1AAA

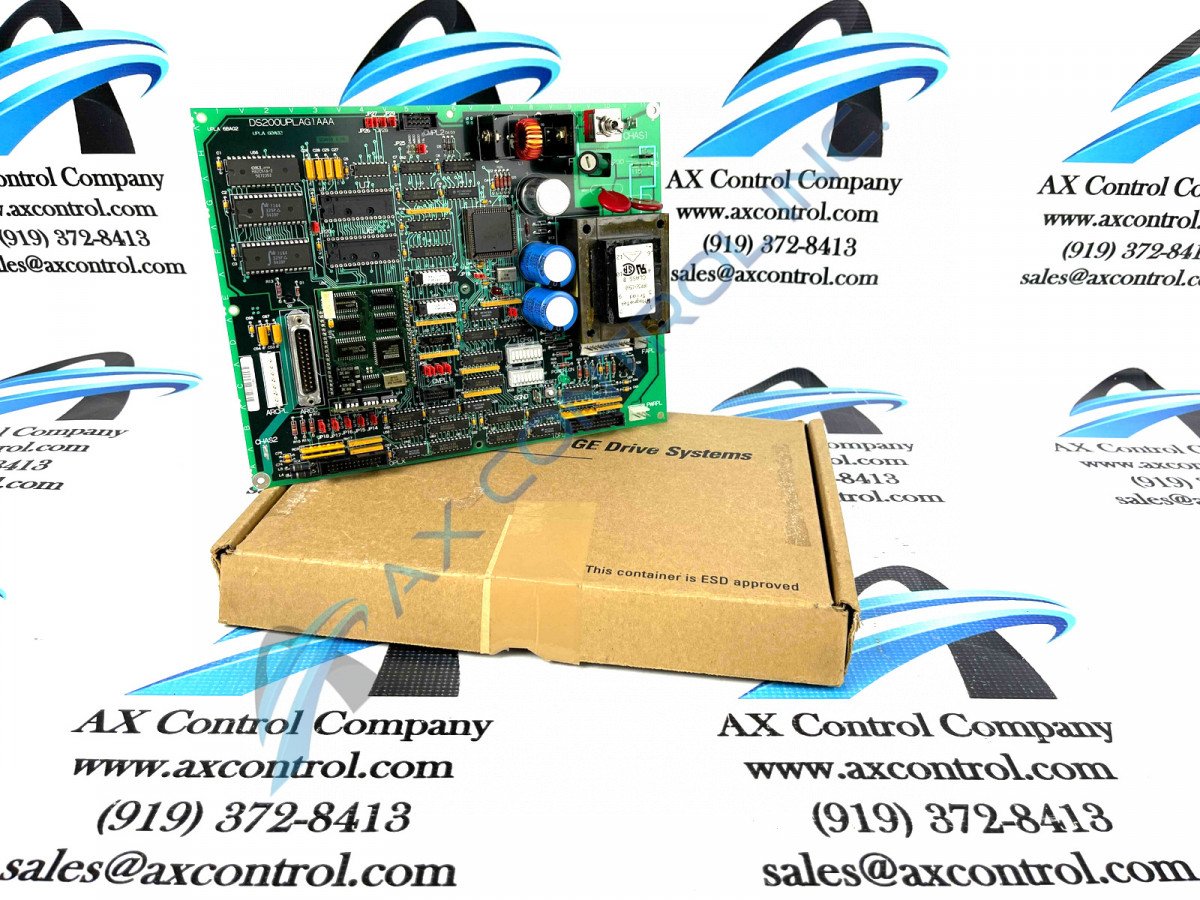

The DS200UPLAG1AAA board is built with a large number of components on its surface and internal assembly alike. These various components include a fuse, a toggle switch, two 26-pin connectors, a reset button, and an 8-pin connector. Additionally, the board has:

• an inductor coil
• variable resistors
• resistor network arrays
• transistors
• stab-on connectors
• jumper switches

Please refer to your GE manuals or user guides for more information on jumper settings; however, best practice says to repeat whatever jumper settings are currently being used on the board you are replacing. We will ship the board to you with jumpers or any other pieces of customizable hardware in their factory positions.

DS200UPLAG1AAA LED Indicators

The DS200UPLAG1AAA also includes two LED panels and a single LED (red) indicator as well as a single green LED indicator. These LED indicators were included with the purposes of diagnostic system communication; one or both LEDs would light when a fatal or functional product fault is experienced in the assembly of the DS200SDCIG1AGB LAN Power Supply Card. Most integrated circuits on the board’s surface are marked with their manufacturing ids, which will allow you to pull datasheets for these individual components if necessary. AX Control ships static-sensitive boards wrapped in an antistatic wrap to ensure they are not damaged during transit, and the majority of our in-stock products can ship out to you the same day we receive your order. All of the aforementioned hardware component inclusions and specifications should at least receive a rudimentary level of protection applied to this product by its normal style of PCB coating, which targets individual hardware elements on a priority basis and is a thick protective covering.
