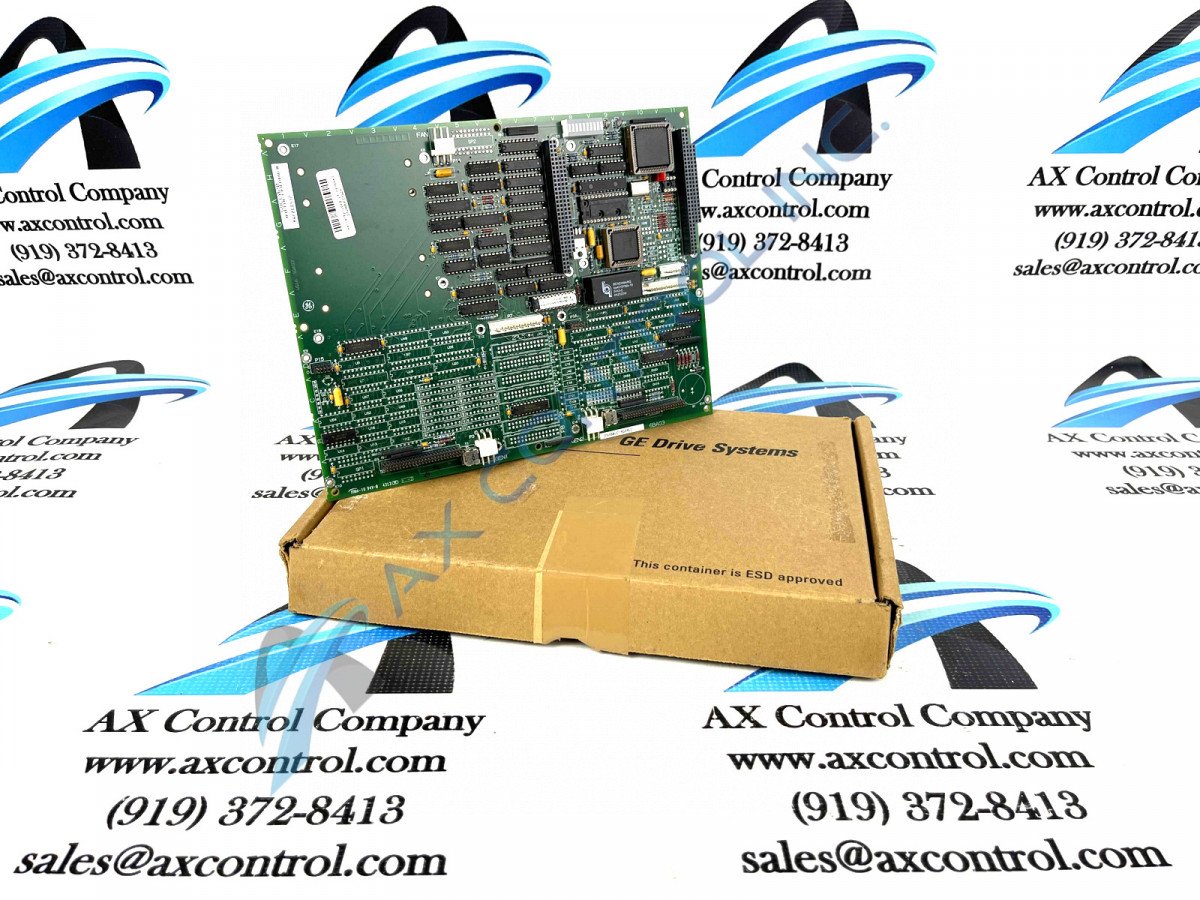

This DS200UCIAG2ACC UC2000 Motherboard is a crucial part of General Electric's Mark V Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200UCIAG2ACC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200UCIAG2ACC
  • SKU: DS200UCIAG2ACCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200UCIAG2ACC Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200UCIAG2ACC
Functional Description UC2000 Motherboard
Functional Abbreviation UCIA
PCB Coating Normal Coating
1st Functional Revision A
2nd Functional Revision C
Artwork Revision C

Product Description

This DS200UCIAG2ACC General Electric printed circuit board product is originally defined as a UC2000 Motherboard in original instructional manual materials; perhaps a bit of a surprise considering this DS200UCIAG2ACC printed circuit board's allegiance to the Mark V Series. This UC2000 Motherboard interestingly enough does not appear to make use of any special assembly type, although its functional description as a UC2000 Motherboard would seem to indicate otherwise. Either way, this DS200UCIAG2ACC printed circuit board product offering is not the original UC2000 Motherboard offered for sale by General Electric; that would be the DS200UCIAG2 UC2000 Motherboard missing all three of this DS200UCIAG2ACC PCB's three significant product revisions.

Hardware Tips and Specifications

As with any Mark V Series or General Electric printed circuit board, this DS200UCIAG2ACC PCB necessitates several hardware inclusions and particular specifications to reach its intended functionality as a UC2000 Motherboard specifically. The GE UC2000 Motherboard DS200UCIAG2ACC features one microprocessor and multiple PROM modules. It also contains 1 block of 10 LEDs and 2 50-pin connectors. The GE UC2000 Motherboard DS200UCIAG2ACC also is populated with 1 jumper and 1 connector to support the attachment of other boards. The GE UC2000 Motherboard DS200UCIAG2ACC can be connected to daughter cards that add functionality and processing power; these duaghter cards are also members of GE's Mark V Series of turbine control systems. You can connect the DS200UCPB and the DS200PANA boards. Standouts are mounted on the board and the daughter cards are screwed in place to them. Signals and power connections are made through a connector on the board. The GE UC2000 Motherboard DS200UCIAG2ACC contains one jumper that is used to configure the board. When you replace the board, set the jumper to match the position of the jumper on the original board. The ID of the jumper is CLK ENA and it is a 3-pin jumper. The jumper is inserted over pins 1 and 2 or over pins 2 and 3. This DS200UCIAG2ACC UC2000 motherboard comes from the factory with the jumper in the default position and if necessary, you can move the jumper to the alternate position to change the configuration of the board. The board is populated with 2 9-pin connectors. The ID of one 9-pin connector is 1PL and the ID of the other connector is 2PL. Inspect the board you are planning to replace before you unplug the cables and notice where the cables are connected. If cables are connected to the 9-pin connectors, tag them so you’ll know where to plug them into the replacement board after it is installed.

Frequently Asked Questions about DS200UCIAG2ACC

What does DS200UCIAG2ACC's processor do?
The processor on DS200UCIAG2ACC translates pressure transducer signals from the TCSA board for the UCPB board to use. DS200UCIAG2ACC's processor is a 196 processor.
What is DS200UCIAG2ACC?
DS200UCIAG2ACC is the motherboard where the UCPB, PANA, and uGENI boards are mounted.
Which connectors on DS200UCIAG2ACC are typically not used?
Connectors P8-P13 on DS200UCIAG2ACC are typically not used. Connectors 2PL, 2PLX, FAN, GEN1, and J1-J4, and P5, P6 and P15, P16 as well as SER are the connectors that are always used on DS200UCIAG2ACC.

Reviews For DS200UCIAG2ACC

Internal Review
(5.0)

This DS200UCIAG2ACC UC2000 Motherboard is a valuable member of both its greater Mark V Series and UC2000 subseries, as evidenced by the presence of the UC2000 portion of its functional description as a UC2000 motherboard and its DS200UCIAG2ACC alphanumeric product number. This DS200UCIAG2ACC printed circuit board is something of an anomaly as it is attributed to the seldom-seen group 2 of Mark V Series product offerings, and its absence of any special assembly version while classified as a daughterboard PCB is atypical. - AX Control Lead Technician
