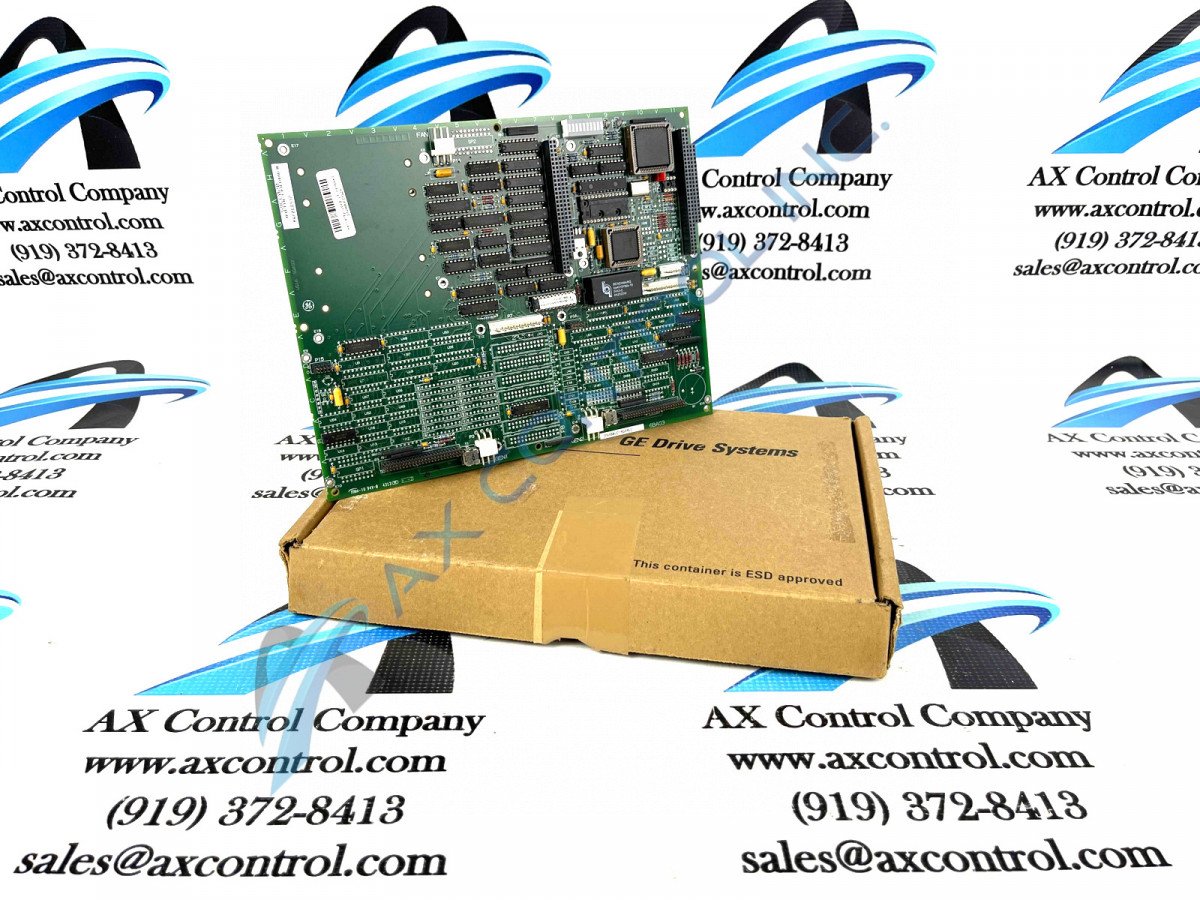

The GE UC2000 Motherboard DS200UCIAG2 features one microprocessor and multiple PROM modules. It also contains 1 block of 10 LEDs and 2 50-pin connectors. The GE UC2000 Motherboard DS200UCIAG2 also is populated with 1 jumper and 1 connector to support the attachment of other boards. When the board is healthy and processing normally, the LEDs in the block of 10 LEDs flash in sequence from left to right. This enables the operator to visually check on the status of the board. When an error has occurred, the LEDs flash to provide a representation of an error code. Another source of information concerning an error is to check the diagnostic tools and refer to the error log. If any errors occurred, the error log will list them. Based on the error code you can take measures to resolve the condition.
One connector is available on the GE UC2000 Motherboard DS200UCIAG2 to couple the board with another board for added processing and functionality. Standoffs are standard on the board that enable you to attach another board with screws. Two boards are compatible for attachment. One is model DS200UCPB and the other is model DS200PANA. They both have screws holes that mate with the standoffs and have connectors that fit with the connector on the GE UC2000 Motherboard DS200UCIAG2. When you attach the two boards with screws, be sure to not overtighten the screws. The board is fragile and over tightening might cause the board to crack or cause the screw to press through the screw hole. Use a screwdriver to secure the screws but don’t use force to tighten them.
