About the DS200TCQEG2AED
Greater Product Series Information

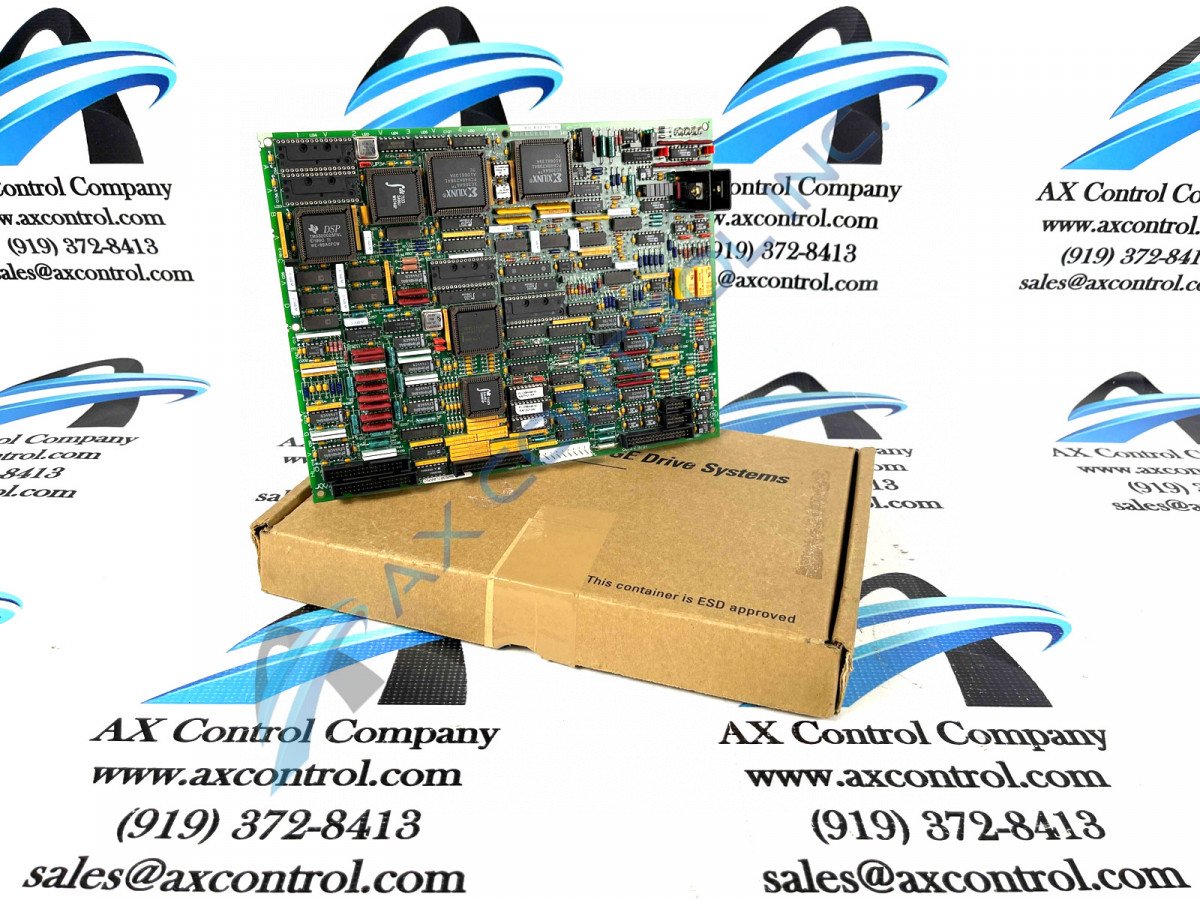

The DS200TCQEG2AED printed circuit board is a GE LM6000 I/O processor board. It is used within General Electric’s Mark V turbine control system, which is one of the later Speedtronic systems. Speedtronic turbine control systems have been around since the 1960s when the Mark I was introduced. These systems offer reliable control and management of industrial gas and steam turbine systems. AX Control maintains on-hand stock of replacement parts for many Speedtronic systems. Be sure to check our full inventory, and check your part number against this listing; all digits of the part number are important when you reorder. If this is not the exact board you’re looking for, please refer to our full inventory list for another version of this I/O processor board.
Hardware Tips and Specifications

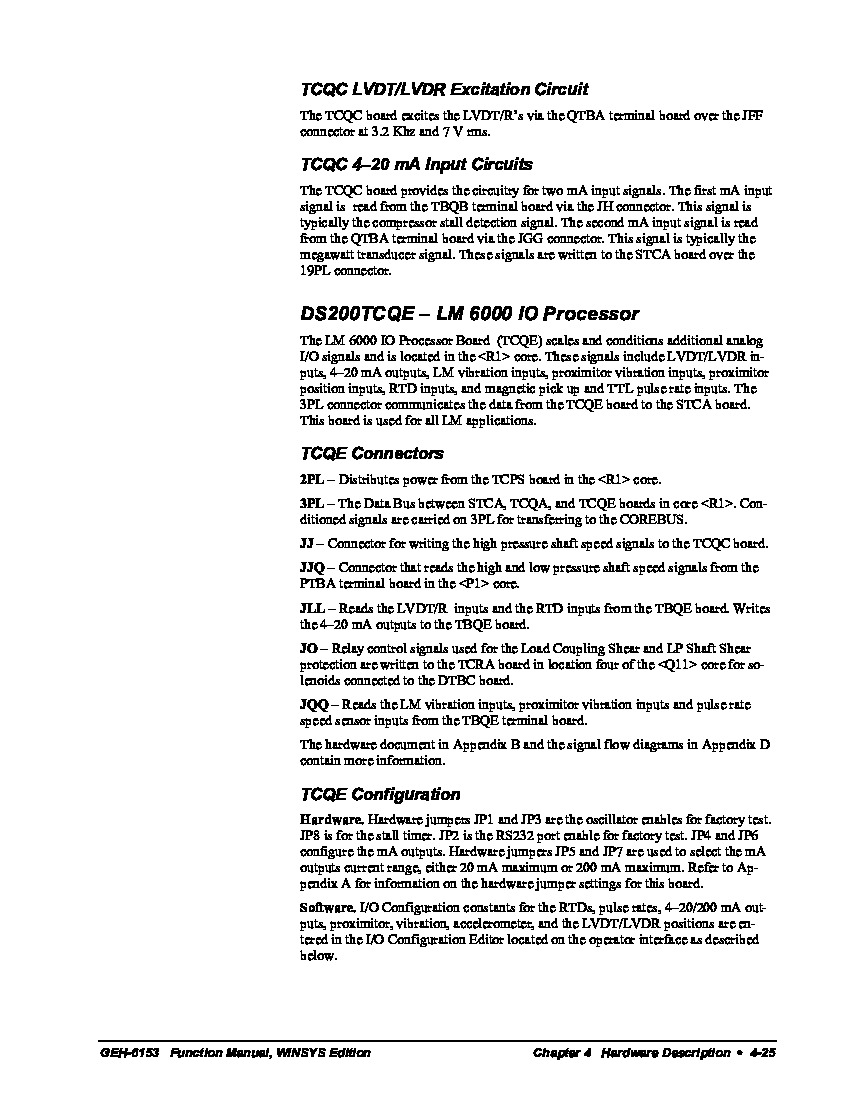

The DS200TCQEG2AED is used to scale and condition analog I/O signals within the Mark V system. The board is placed within the <R1> core, meaning that LM applications require this board. The DS200TCQEG2AED has multiple connectors on its surface, including vertical plugs and pin connectors. Connectors are used in the assembly of this DS200TCQEG2AED PCB for such things as writing high-pressure shaft speed signals, reading sensor signals for load coupling shear, and connecting to other boards to distribute signals. The board includes multiple configurable jumpers that control the stall timer, oscillator enabler for factory testing, and milliamp outputs current range. Software configurations can change RTD constants, pulse rates, and several other settings. Some of the connectors specifically attributable to this DS200TCQEG2AED GE LM 6000 IO Processor Board include:
- The 2PL TCPS Power Distribution Connector
- The 3PL Databus Transmission Connector
- The JJ High-pressure Shaft Speed Signal Connector
- The JJQ Shaft Speed Signal Connector
- The JLL TBQE Board Connector
- The JO DTBC Board Connector
- The JQQ TQBE Terminal Board Connector
As you might have noticed, many of the various connector types employed in the assembly of this Mark V Series product make some reference to other Mark V Series products compatible with this DS200TCQEG2AED LM6000 Processor Board. AX Control almost always ships in-stock products the same day we receive your order. Let us know if you need expedited shipping, which is available. This DS200TCQEG2AED device is more than likely not considered the originally-developed device of its specific General Electric-intended functional product role, as that would have to be rolled out as the DS200TCQEG2 parent PCB not utilizing this DS200TCQEG2AED device's three significant product revisions.
