The DS200TCQBG2AEB RST Extended Analog I/O Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200TCQBG2AEB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200TCQBG2AEB
  • SKU: GBTC-54152
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200TCQBG2AEB Technical Specifications

Original Manufacturer General Electric
Product Series Mark V Speedtronic
Functional Part Number DS200TCQBG2AEB
Functional Abbreviation TCQB
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly

About the DS200TCQBG2AEB

The DS200TCQBG2AEB functions as an RST Analog I/O Board (extended) for General Electric’s Mark V Speedtronic Turbine Control System Series. The Mark V Series is a very self-explanatory General Electric mark product series, as it exists possessing a series of specific applications in the control and management systems of popular and compatible wind, steam, and gas turbine automated drive assemblies.


Hardware Tips and Specifications

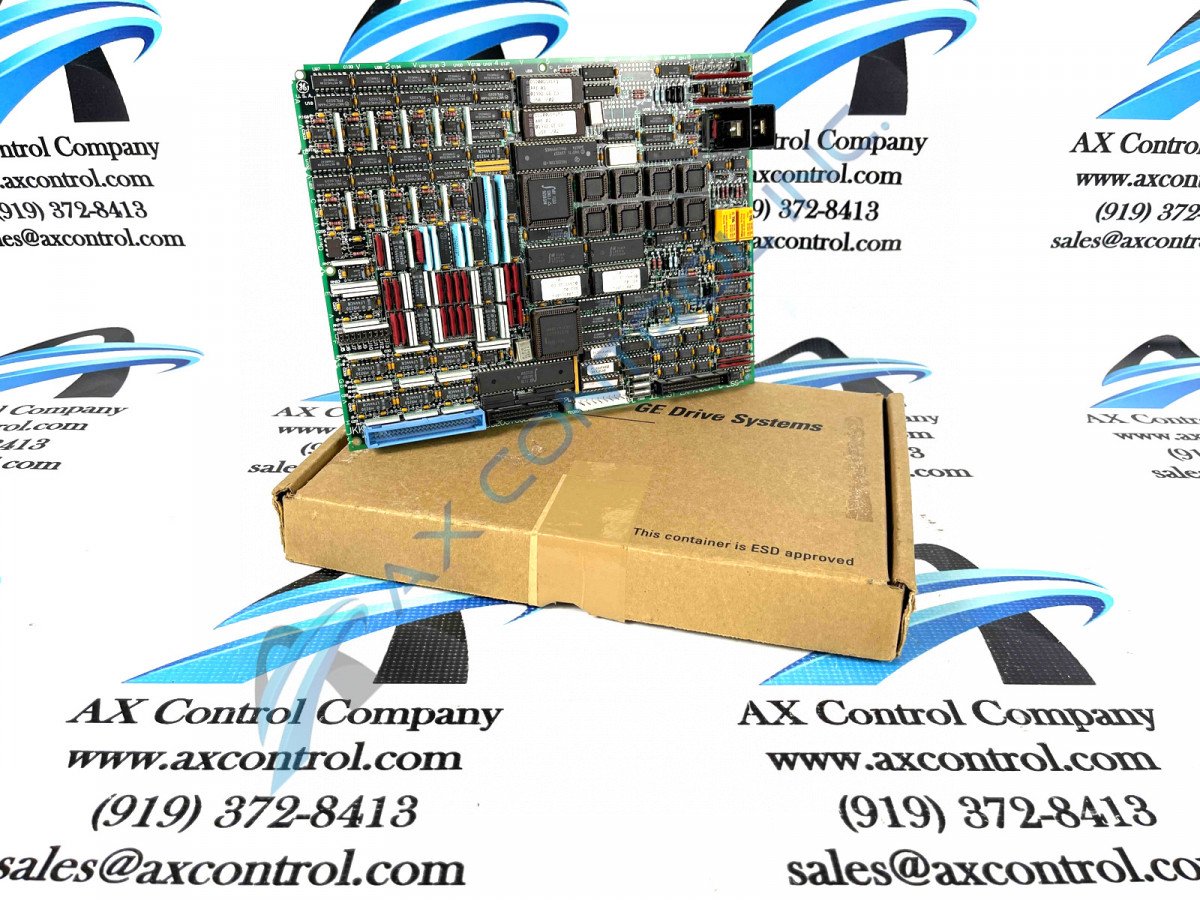

The DS200TCQBG2AEB is a rectangular-shaped printed circuit board. It is heavily populated on its top surface. The DS200TCQBG2AEB board includes components like:

  • field-programmable gate arrays and other IC chips
  • resistors
  • diodes
  • capacitors

Most of these are Mark V Series-standardized hardware components meant for specific voltage limitation applications. The DS200TCQBG2AEB board has a single green LED indicator located in its top corner. This indicator faces to the side of the board. There are two heat sinks nearby, along with two relays. The board also uses resistor network arrays.

The DS200TCQBG2AEB functional product number itself can be defined as a primary source of DS200TCQBG2AEB Board hardware and hardware component specification information; coding for specific details in a series of consecutive functional naming segments. For instance, the DS200TCQBG2AEB functional product number is started by an inclusion of the dual-functional DS200 series tag delegating this DS200TCQBG2AEB Board's normal Mark V Series assembly as well as its domestic original location of manufacture. Some of the other relevant hardware details embedded in functional chunks of the DS200TCQBG2AEB functional product number include this Mark V Series RST Analog I/O Board's:

  • TCQB functional product abbreviation
  • Normal PCB coating style
  • Group 2 Mark V Series product grouping
  • Three-fold revision history

The bottom edge of the DS200TCQBG2AEB has multiple connectors. Many of these are used for ribbon connectors. Please remember ribbon connectors can easily be damaged during installation or removal. Make sure to remove the ribbon cable by the connector point and not the ribbon cable itself. Associated GE manuals that focus on the DS200TCQBG2AEB or the Mark V system will provide you with additional information. Please read through this documentation before beginning any sort of installation or maintenance. This is for your safety and for the longevity of your equipment. Static sensitive parts receive extra protection during shipment from AX Control. We recommend unboxing these parts using a grounding strap. Most of our in-stock inventory will ship the same day you call to place your order.

This DS200TCQBG2AEB printed circuit board product offering from General Electric is actually not the originally-developed product of its specific Mark V Series functionality; that would be the DS200TCQBG2 parent RST Analog I/O Board making use of this DS200TCQBG2AEB PCB's full possible revision table including two functional product revisions as well as a sole artwork configuration revision; rated at grades of A, E, and B, respectively.


Frequently Asked Questions about DS200TCQBG2AEB

Are this DS200TCQBG2AEB PCB's three total significant product revisions noticeable in its assembly backwards-compatible?

No. Only this DS200TCQBG2AEB device's first two revisions can be considered backwards-compatible, as they both exist as matching functional styles of Mark V Series product revisions.

Does this DS200TCQBG2AEB PCB mount specifically in the greater Mark V Series VME Rack assembly?

No. Given the absence of any sturdy metal mounting faceplate in this DS200TCQBG2AEB Board's assembly, it can be deduced that it was not designed to mount in any Mark V Series VME Rack Assembly.
