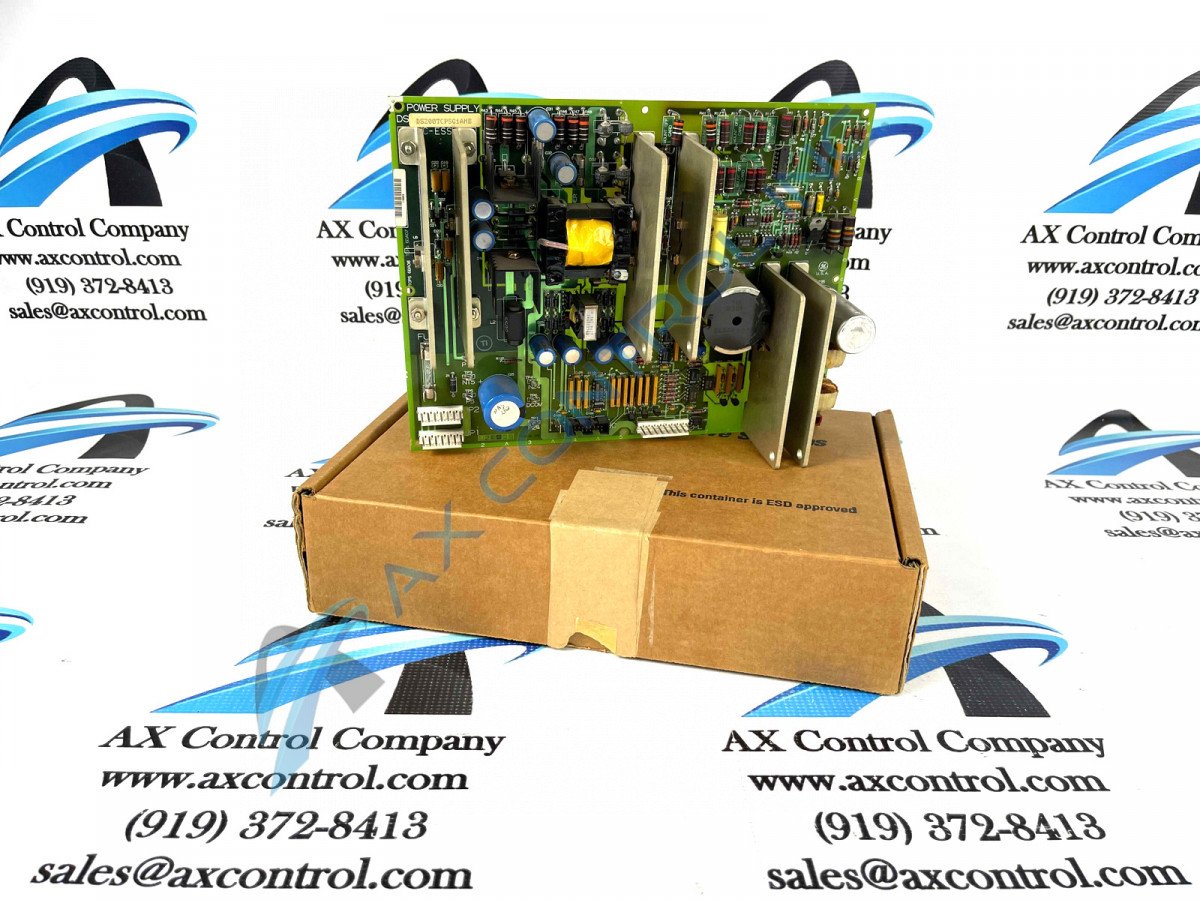

The General Electric DS200TCPSG1AME Power Supply Board was originally manufactured for General Electric's Mark V Turbine Control System Series.



Sell Surplus: Have a DS200TCPSG1AME to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200TCPSG1AME
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200TCPSG1AME Technical Specifications

Original Manufacturer General Electric
Product Series Mark V Speedtronic
Part Number DS200TCPSG1AME
Functional Abbreviation TCPS
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly

Product Description

The DS200TCPSG1AME from General Electric functions as a power supply card for the company’s Mark V turbine control system.  The MKV is a Speedtronic system. Like other Speedtronic systems (Mark I through Mark VIe) the Mark V is designed to offer industrial-level protection and control to gas and steam turbine systems, although it is one of the later GE product lines to exist with Speedtronic technology, while simultaneously recognizable as a member of a Mark V legacy series, due to the Mark V's eventual discontinuation by GE. While this DS200TCPSG1AME board is definable as a Power Supply Board, the original Mark V Series Power Supply Board has to be defined as the DS200TCPSG1 parent Power Suppy Board missing this DS200TCPSG1AME product's three significant product revisions.

Hardware Tips and Specifications

The DS200TCPSG1AME lives within the <R> core of the Mark V system. It converts TCPD 125 VDC power originating in the <PD> core to the voltages needed by other components and applications within the Mark V system. This includes RTD power supply voltages, servo valve current outputs, and microprocessor power supply voltages. Given this intended Mark V Turbine Control System Series functionality, a number of unique and even product-specific hardware component inclusions have been made to the assembly of this DS200TCPSG1AME PCB. The DS200TCPSG1AME  includes a number of connectors including the J1 connector that brings 125 VDC power into the TCPS board, as well as the 2PL, JC, JP1, and JP2 connectors that are used to distribute power supply voltages to boards like the TCQC, TCCA, and TCDA. The DS200TCPSG1AME has no hardware or software configurations. The DS200TCPSG1AME includes multiple fuses to protect components. It also includes multiple heat sinks to dissipate heat from the board, resistor network arrays, TP test points, transformers, inductor coils, and several metal oxide varistors. The board is factory drilled and has been marked with several codes and identifying marks. It also carries the General Electric logo to assure authenticity. For more information about the DS200TCPSG1AME, refer to manuals and data sheets from GE, some of which are available through the manuals tab above.

The DS200TCPSG1AME functional product number is a strong source of original DS200TCPSG1AME board-specific hardware component and specification information, given this DS200TCPSG1AME product's limited available original instructional manual materials. This DS200TCPSG1AME functional product number codes for information including this DS200TCPSG1AME PCB's normal Mark V Series assembly style, domestic location of original manufacture, TCPS functional product abbreviation, normal style of PCB coating, group one Mark V Series grouping, and finally, its two functional product revisions and singular artwork revision version, rated at A, M, and E grades respectively. The normal style of PCB coating applied to the base circuit board of this DS200TCPSG1AME PCB is a thick rudimentary layer of basic PCB protective coating that envelops and protects individual DS200TCPSG1AME board hardware elements base on functional priority to the DS200TCPSG1AME board and its greater Mark V Series automated drive assembly. Our company will be happy to provide replacement copies of any documentation you’ve misplaced.  Let us know if there are any docs you may need when you call to place your order.

Frequently Asked Questions about DS200TCPSG1AME

Why are only the first two of this DS200TCPSG1AME product's three revisions considered backwards-compatible?

Only this DS200TCPSG1AME board's first two revisions can be considered backwards-compatible as they are both functional styles of product revision.

Are the factory-drilled installation holes in this DS200TCPSG1AME PCB's assembly insulated?

Yes. The factory-drilled holes in the assembly of this DS200TCPSG1AME PCB have been insulated, in observance of potentially-present damaging surface voltages and static electricity.

Reviews For DS200TCPSG1AME

Internal Review

This DS200TCPSG1AME Power Supply Board may be a simply-named product offering available to General Electric's Mark V Turbine Control System Series, which may downplay its true functional importance. This TCPS-abbreviated PCB does not have any available hardware or software configuration, but is outfitted with diagnostic testpoints and a revision history including the rarely-seen M-rated secondary functional revision. - AX Control Lead Technician
