DS200TBCBG1A TERMINATION ANALOG CARD GE MARK V

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200TBCBG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200TBCBG1A
  • SKU: DS200TBCBG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200TBCBG1A Technical Specifications

Manufacturer GE General Electric
Part Number DS200TBCBG1A
Product Type Termination Module RTD and 4-20 mA Input
Series Mark V

Product Description

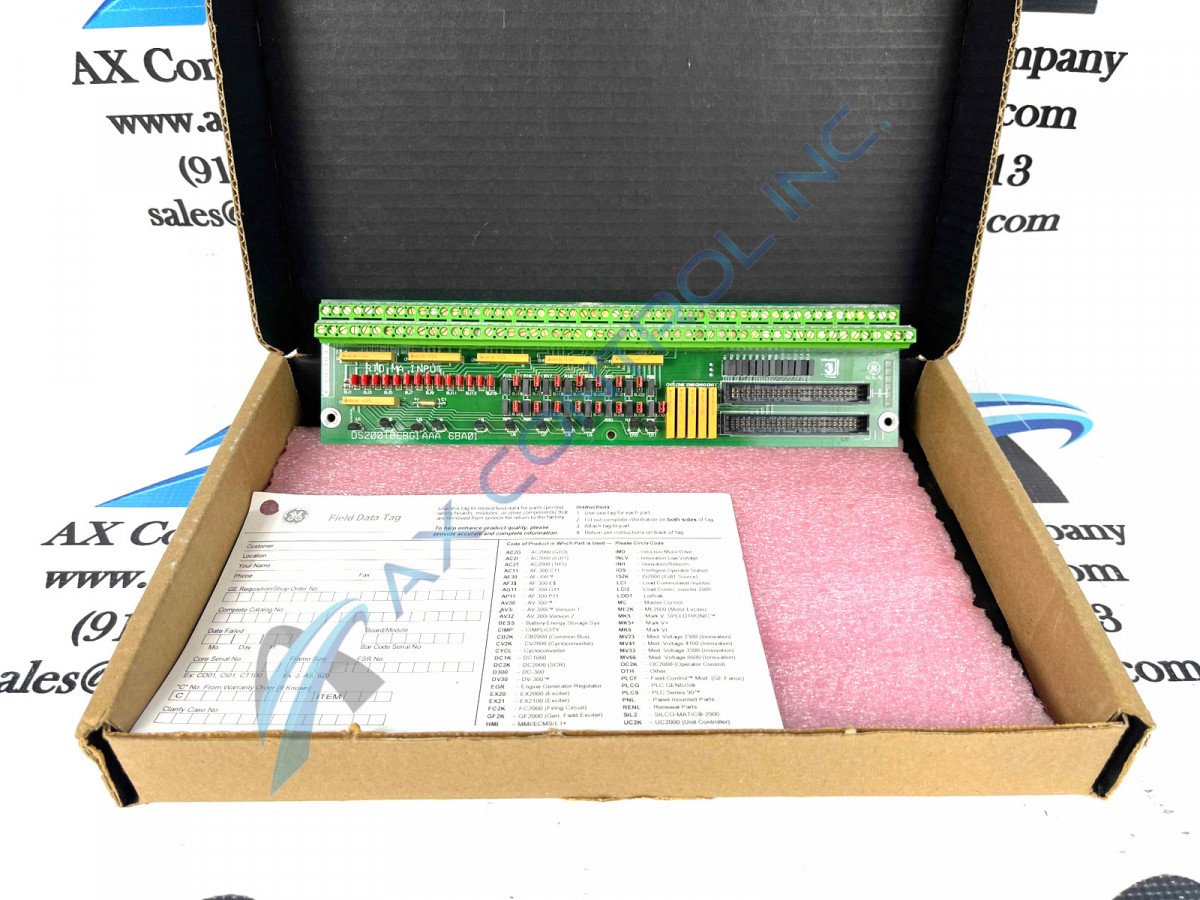

The DS200TBCBG1A is a Termination Analog Card in the GE Speedtronic Mark V LM series of turbine control systems. This board is not being supported by its original manufacturer anymore and has become hard to locate at times. AX Control does still try to keep this board in stock as either a refurbished or new surplus stock part. Please call us directly for its availability and pricing.

The DS200TBCBG1A can be mounted within a Mark V turbine control cabinet with other I/O control boards. There are four sections of these boards within the cabinet. There are 9 total slots within an I/O control section and the TBCB board typically takes up one of the larger slots below a series of 5 smaller boards.

The DS200TBCBG1A is also called a Termination Module RTD and 4-20 mA Input (TBCB). This board functions within the <R5> core. This board uses the input signals that it receives to transmit them to the TCCB board where they are written on to the board. The TCCB board is also located within the <R5> core. A total of eight of the regular input signals have the ability to be converted to 0-1 mA input signals.

The DS200TBCBG1A does not have any specific software that needs to be configured but it does have hardware configurations. The BJ1 to BJ22 input signals need to be connected to the DCOM. The BJ23 to BJ30 input signals are where signals 15-22 are converted to 0-1mA current range.

Please refer to Instruction Manual GEH-6353B for more information on the specific installation of the input signals for the DS200TBCBG1A.

Frequently Asked Questions about DS200TBCBG1A

How many inputs does DS200TBCBG1A have?
DS200TBCBG1A has 36 total inputs. DS200TBCBG1A has 22 inputs for milliamp transducers. DS200TBCBG1A has 14 inputs for 3-wire RTDs.
What processor is DS200TBCBG1A used with?
DS200TBCBG1A is a board used with the Common Data Processor. DS200TBCBG1A provides analog signals for the Common Data Processor.
What signals are landed on DS200TBCBG1A?
RTD input signals and milliamp input signals are landed on DS200TBCBG1A. 8 of the 4-20 mA input signals on DS200TBCBG1A have the option to be configured using hardware jumpers to be 0-1 mA input signals. The signals landed on DS200TBCBG1A are written to the TCCB board.
Reviews For DS200TBCBG1A
Internal Review

The Termination Analog Card with the part number DS200TBCBG1A is a simple to install printed circuit board that is generally found in Mark V Turbine Control applications. It is not an intelligent board as compared with the other boards mounted in the drive series but is fairly simply to remove when needing to be replaced and re-wired - AX Control Technician
