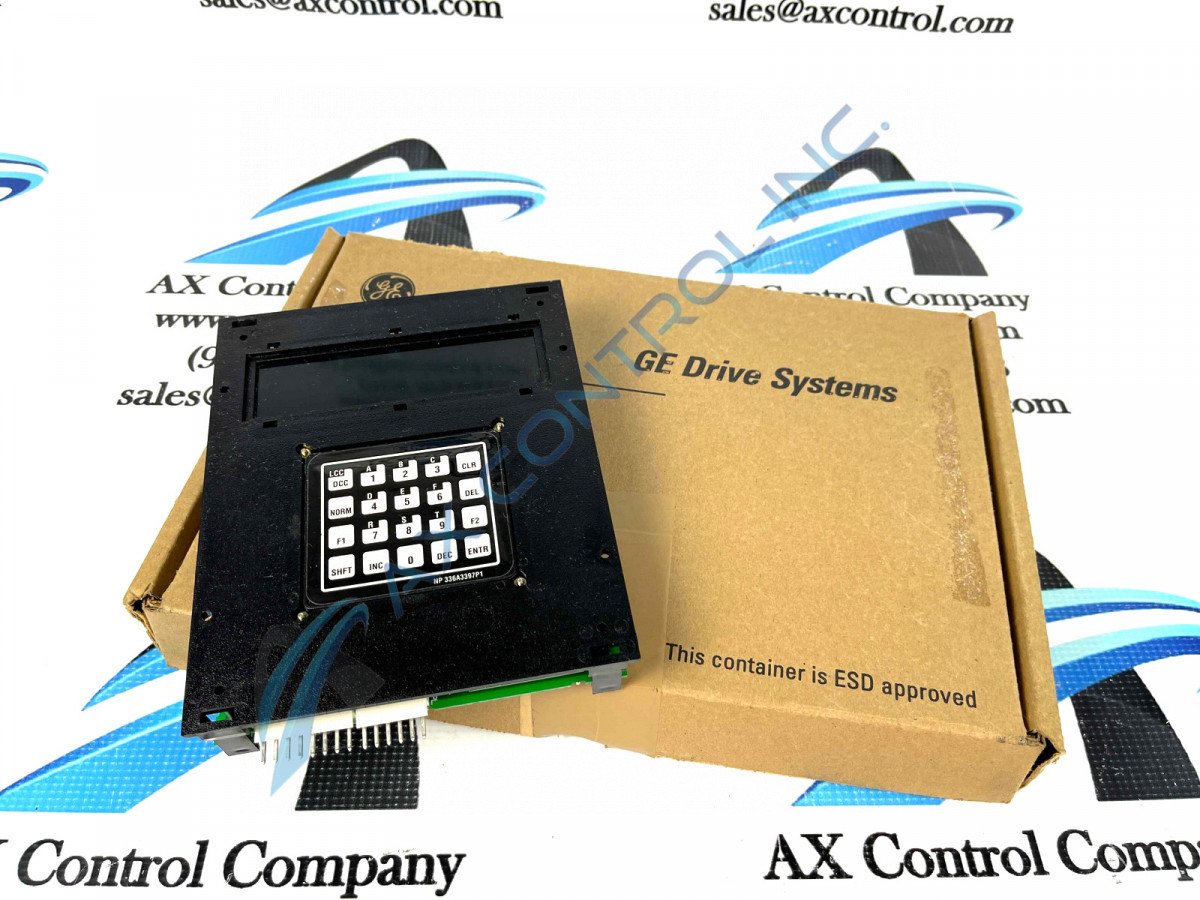

The DS200SLCCG3AFG LAN Communication Card was manufactured by General Electric for use in the Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200SLCCG3AFG to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SLCCG3AFG
  • SKU: DS200SLCCG3AFGGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SLCCG3AFG Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200SLCCG3AFG
Functional Description LAN Communications Card
Instruction Manual GEI-100162
Functional Acronym SLCC
PCB Coating Normal Coating
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly

About the DS200SLCCG3AFG

The board identified as DS200SLCCG3AFG is a LAN (local area network) communication board. The card was manufactured by General Electric for their Mark V series of drive boards, which have specific applications in the management and control systems of compatible wind, steam and gas turbine control and management systems. A range of drives and exciters across the GE family are designed to have this card installed in its cabinet. When the card is installed in a drive it provides the necessary space for interfacing with available LAN network connections. While this DS200SLCCG3AFG printed circuit board is definable as a LAN Communication Board in its own right, its is by no means considered the originally-designed product of this functionality to feature within the Mark V Series; that would be the DS200SLCCG3 parent LAN Communication Board missing this DS200SLCCG3AFG product's full three-fold revision history.

Hardware Tips and Specifications

An integrated LAN control processor (LCP) is featured on the DS200SLCCG3AFG communication board, alongside many other functionality-introducing hardware components and component specifications. Any signals sent to the DS200SLCCG3AFG PCB's greater Mark V Series drive will be filtered using this component. Program memory for the device is stored in the two attachable EPROM memory cartridges on board. The LCP is also capable of interfacing with the host drive’s drive control board. The space for this data exchange is available in the dual ported RAM. Both isolated and nonisolated circuits are provided to the drive by the DS200SLCCG3AFG LAN communication card. System diagnostics and controls can be easily accessed using the device’s attachable alphanumeric keypad. While this DS200SLCCG3AFG LAN Communication Board or LAN Communication Card does employ its own series of product-specialized hardware components and component specifications, its normative functionality also receives a boost from many Mark V Series-standardized hardware component inclusions; specifically with voltage limitation and suppression purposes. Some of these voltage-minded hardware components in the assembly of this DS200SLCCG3AFG printed circuit board include various rectifiers, diodes, and capacitors, as well as the standard daily wear and tear protection and insulation offered by this DS200SLCCG3AFG product offering's normal style of PCB coating, which was revealed in the DS200SLCCG3AFG functional product number itself. Some other DS200SLCCG3AFG device-pertinent details revealed in the DS200SLCCG3AFG functional product number include this DS200SLCCG3AFG PCB's:

  • Normal style of Mark V Series assembly
  • Domestic location of original manufacture
  • SLCC functional product abbreviation
  • Group Three Mark V Series product grouping
  • A-rated primary functional revision
  • F-rated secondary functional revision
  • G-rated artwork configuration revision

As you have probably noticed, this DS200SLCCG3AFG PCB possesses both functional and artwork product revisions in its assembly. While this DS200SLCCG3AFG PCB's basic performance specifications and functionality are improved through its possession of two functional revisions, its singular artwork revision alters the positioning of individual hardware elements on its base circuit board. When products are shipped from AX Control, they will be carefully protected in a static resistant plastic bag. The device should be removed from the bag only after all installation parameters have been thoroughly reviewed. Board installation and handling should only be performed by qualified personnel. For a complete guide to wiring and installing the DS200SLCCG3AFG LAN communication board, please refer to the device’s manual and datasheet. Technical support for this device was originally provided by the manufacturer, General Electric. Our trusted and experienced sales team at AX Control is available via phone or email to help with all of your automation needs. Please contact our office to receive pricing information for the DS200SLCCG3AFG, or any other needed part or repair.

Frequently Asked Questions about DS200SLCCG3AFG

What does jumper JP19 on DS200SLCCG3AFG do?
Jumper JP19 on DS200SLCCG3AFG is the jumper that connects DS200SLCCG3AFG's crystal to the processor.
What type of card can DS200SLCCG3AFG replace?
DS200SLCCG3AFG can be used to replace a 531S306LCC card (LCC). If you're replacing an LCC with DS200SLCCG3AFG, refer to manual GEI-100021.
What is the KPPL connector used for on DS200SLCCG3AFG?
The KPPL card connector on DS200SLCCG3AFG is DS200SLCCG3AFG's input and output connection with the programmer module. The programmer module mounts on DS200SLCCG3AFG and plugs into connector KPPL.
Where can I find the manual for DS200SLCCG3AFG?
You can find the manual on our site or we can send you a link to the manual for DS200SLCCG3AFG. The DS200SLCCG3AFG manual is Manual GEI-100162 - The GE Motors and Industrial Systems LAN Communications Card Manual.

Reviews For DS200SLCCG3AFG

Internal Review
(5.0)

This DS200SLCCG3AFG LAN Communications Board or LAN Communications Card is an integral member of its greater Mark V Turbine Control System Series, although its attribution to the third grouping of Mark V Series products points to its highly-specialized nature, which is even further refined through its inclusion of three product revisions including the somewhat-unommon f-rated secondary functional product revision. - AX Control Lead Technician
