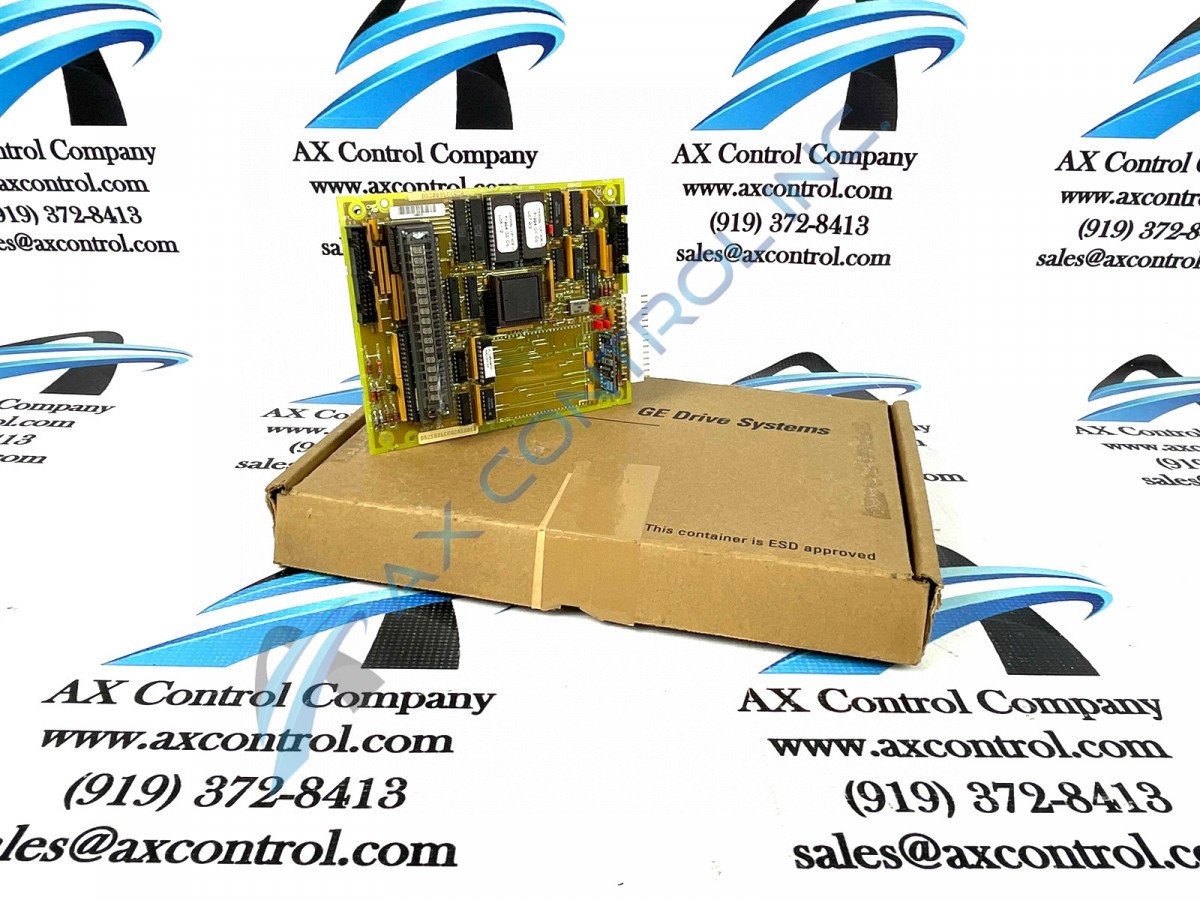

This General Electric DS200SLCCG2A PCB is a LAN Communications Card manufactured for the Mark V Turbine Control System Series.



Sell Surplus: Have a DS200SLCCG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SLCCG2A
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SLCCG2A Technical Specifications

Original Manufacturer GE General Electric
Product Series Mark V
Functional Part Number DS200SLCCG2A
Functional Description LAN Communications Card
Instruction Manual GEI-100162
Functional Abbreviation SLCC
PCB Coating Type Normal Coating
1st Functional Revision A

Product Description

The DS200SLCCG2A is a LAN (local area network) communication board. General Electric developed this board as a member of the Mark V series of drive boards. A range of drives across the GE brand are designed to have this board installed in its drive cabinet. Required LAN interfacing processing space is available to the host when this board is installed. The DS200SLCCG2A board includes the circuitry necessary for DLAN network communications. The Mark V Series that this DS200SLCCG2A printed circuit board exists as one of the General Electric Mark Series, which, since the late 1960s, have been developed specifically using the patented General Electric Speedtronic technology. The Mark V Series has specific applications in gas, wind, and steam turbine management and control systems. This DS200SLCCG2A printed circuit board is not the original LAN Communication Board that was manufactured for use in the Mark V Turbine Control System Series, however; that would be the DS200SLCCG2 parent printed circuit board missing this DS200SLCCG2A product's singular A-rated functional product revision.

Hardware Tips and Specifications

When installing the DS200SLCCG2A board, the host drive is provided with both nonisolated and isolated communications circuits. The main component found on the board is the LAN control processor (LCP). This processor is used to filter and process signals sent to the board. Two detachable EPROM memory cartridges are also included for the LCP. These provide the space needed for LCP program memory. The board also features a dual ported RAM. This provides the necessary interfacing space between the LCP and the host’s drive control board. Users can access a number of system features and diagnostics via the attachable programmer. This alphanumeric keypad easily connects to the board. Any device shipped from AX Control will be wrapped in a static resistant protective plastic bag. Device installation should not begin until all provided storage and installation parameters are reviewed, and the DS200SLCCG2A should only be handled by users trained in using drive boards. For a complete guide to wiring the board, refer to the corresponding device manual and datasheet. General Electric, the device’s manufacturer, was the original provider of technical support for this card.

Unfortunately for our research purposes, this DS200SLCCG2A printed circuit board or PCB for short is another Mark V Series product offering that does not have a whole lot of available instructional manual materials. With that being said, this SLCC-abbreviated product's DS200SLCCG2A functional product number alone is a great supplementary source of original hardware component and specifactory information. The DS200 series tag in the DS200SLCCG2A functional product number has dual naming conventions for the DS200SLCCG2A PCB, detailing it as a domestically-manufactured General Electric product with a normal assembly version. This is followed in the DS200SLCCG2A product number by an instance of the SLCC functional abbreviation, which was created to exists as a convenient shorthand alternative to the lengthy DS200SLCCG2A product number. The SLCC functional product acronym is followed itself in the DS200SLCCG2A functional product number, by an inclusion of the dually-functional G2 series grouping tag detailing this DS200SLCCG2A PCB's normal style of PCB protective coating and group 2 Mark V Series grouping. The final trailing A digit in the DS200SLCCG2A alphanumeric product number is representative of the A-rated functional product revision present in this Mark V Series offering's assembly, which surely alters this DS200SLCCG2A PCB's originally-indicated performance specifications and dimensions some.

Frequently Asked Questions about DS200SLCCG2A

What networks can DS200SLCCG2A connect to?
DS200SLCCG2A can only connect the drive to DLAN networks based on DS200SLCCG2A's circuitry and the fact that DS200SLCCG2A is a G2 version SLCC.
What are the connectors on DS200SLCCG2A?
DS200SLCCG2A has five connectors that allow DS200SLCCG2A to interface with other boards of the controller, external signals, and networks. The connectors on DS200SLCCG2A are: 2PL, 3PL, 10PL, ARCPL, and KPPL. For descriptions of DS200SLCCG2A's connectors, view the card connections section in the manual for DS200SLCCG2A - Manual GEI-100162. The card connections section is under the functional description for DS200SLCCG2A in the manual.
What type of circuits does DS200SLCCG2A have?
DS200SLCCG2A has both isolated and non-isolated circuits for communications to the drive or exciter.
What is included in DS200SLCCG2A's manual?
In the manual for DS200SLCCG2A, Manual GEI-100162, there is a functional description of DS200SLCCG2A, application data for DS200SLCCG2A, and renewal/warranty replacement information for DS200SLCCG2A. The manual is the GE Motors and Industrial Systems LAN Communications Card Manual and although the manual doesn't cover all operations of DS200SLCCG2A, the manual is helpful with DS200SLCCG2A.
