About the DS200SLCCG1AEF

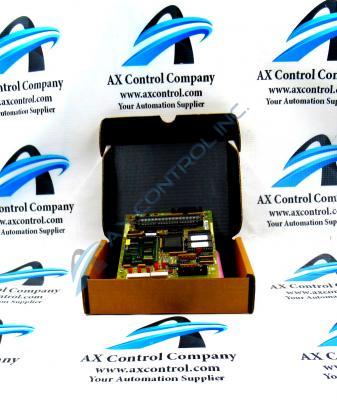

DS200SLCCG1AEF is a LAN (local area network) communications board manufactured by General Electric. The card is classified as a member of the Mark V Turbine Control System series of drive boards. Cards from this series can be installed across a wide range of drives and exciters from the GE family, although, in a somewhat unsurprising turn given its full extended series name, they do have specific applications in the control and management systems of popular and compatible wind, gas, and steam turbine automated drive assemblies. The Mark V Series that this DS200SLCCG1AEF PCB belongs to, while possessing some newer-developed alternative energy applications, has to be considered obsolete as a whole as it truthfully exists as a now-discontinued legacy product series whose production was halted due to a manufacturer-identified obsolescence in one of the many years past its initial release. While obsolete as a whole, this DS200SLCCG1AEF product's greater Mark V Series has found a niche demand on the greater automated industrial marketplace, as it exists as one of the final GE-developed Mark product series to incorporate the patented Speedtronic control system technology across a range of its various offerings.
Hardware Tips and Specifications
When installed the card provides its host with necessary LAN communication interfacing space; this functionality is achieved by this DS200SLCCG1AEF LAN Communications Board's installation of a specific series of functionality-inducing hardware components and component specifications. Circuits for both DLAN and ARCNET networks is available in this board. Both isolated and nonisolated circuits are provided by the DS200SLCCG1AEF LAN communications board. An integrated LAN control processor (LCP) works to process and filter received signals. A dual ported RAM is also provided for interfacing capabilities between the LCP and the drive’s drive control board. Programming data for the LCP is stored in the two onboard EPROM memory cartridges. Access to system settings and diagnostics is available through the attachable programmer keypad. This tool includes 16 alphanumeric keys and a display screen. Generally, voltage suppression and protection in the normal assembly of this DS200SLCCG1AEF product offering is handled by its normal Mark V Series assembly's adoption of a specific series of voltage-limiting hardware components; including various versions of capacitors, resistors, transistors, and even specialized integrated circuits. This DS200SLCCG1AEF PCB is an edited version of the original Mark V Series LAN Communications Board; altering the DS200SLCCG1 parent product through its acceptance of a full three-fold revision history including an A-rated primary functional revision, an E-rated secondary functional revision, and finally an F-rated artwork configuration revision.
All boards shipped by AX Control will be protected by a static resistant plastic bag. Any installation parameters should be reviewed before the board is removed from the packaging. The only users permitted to handle this board should be personnel qualified to install the card. A complete guide to wiring the board can be found in the device’s datasheet as well as the manual. The device’s manufacturer, General Electric, originally provided technical support for the entirety of the Mark V series. AX Control has a trained sales team available to help with all of your automation needs. Information regarding pricing and availability for any part or repair can be obtained by contacting a member of our staff. The above-included information concerning this DS200SLCCG1AEF product is primarily reminiscent of hardware traits visible upon a diligent visual inspection of the DS200SLCCG1AEF product itself; this was deemed necessary given this DS200SLCCG1AEF PCB's low availability online of its originally-printed instructional manual materials due to its now-obsolete legacy product series status. With this noted lack being the case, the DS200SLCCG1AEF functional product number itself can act as a supplemental source of DS200SLCCG1AEF Board hardware information, as it codes for specific hardware details in a series of consecutive functional naming segments. For instance, the DS200SLCCG1AEF functional product number begins with the dual-functional DS200 series tag that indirectly states this DS200SLCCG1AEF Board's normal Mark V Series assembly as well as its domestic original location of manufacture. Some of the other relevant information revealed through functional product number includes this DS200SLCCG1AEF device's:
- SLCC functional product abbreviation
- Normal PCB coating style
- Group one Mark V Series product grouping
- A-rated primary functional revision
- E-rated secondary functional revision
- F-rated artwork configuration revision
