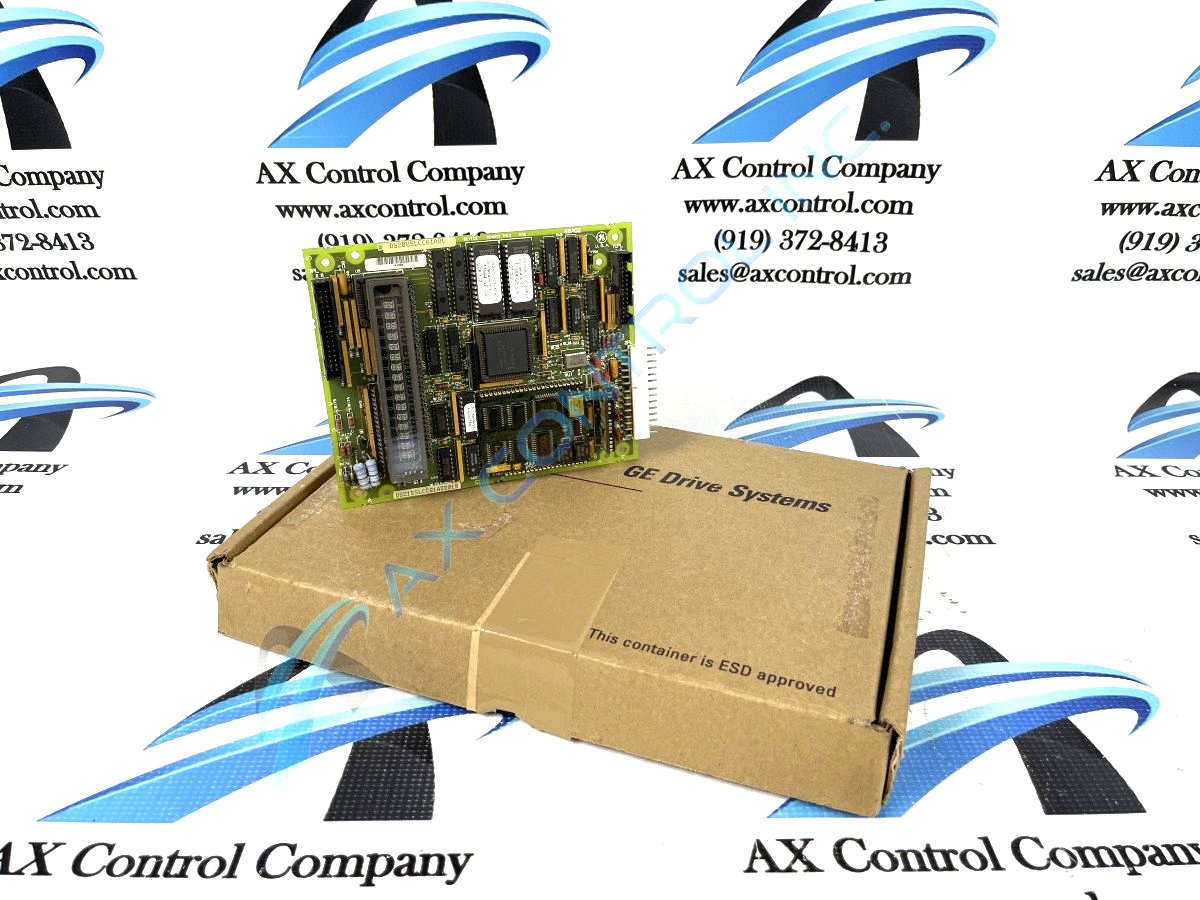

About the DS200SLCCG1ADC
The DS200SLCCG1ADC drive board is a local area network (LAN) communications card developed by General Electric. This device is a member of the Mark V Turbine Control System series of boards for drives and exciters. A range of drives across the GE family can have this board installed in its cabinet. The Mark V Series that this DS200SLCCG1ADC PCB belongs to, as hinted at by its full extended series name, has specific applications in the management and control systems of popular and compatible wind, steam, and gas turbines, although it has to be considered a now-obsolete legacy product series; due to the eventual manufacturing discontinuation that took place in one of the many years following its intiial Mark V product series release. This DS200SLCCG1ADC PCB's greater Mark V Series, while generally obsolete, still attracts a niche demand on the general automated industrial marketplace, as it exists as one of the final-developed Mark product series to make use of the patented Speedtronic control system technology across a range of its offerings.
Hardware Tips and Specifications
The card itself provides the necessary interfacing for LAN communications sent to the drive. Consistent with all G1 versions of the board, this card includes the circuitry required to accept both DLAN and ARCNET network connections. When this LAN board is installed the host drive is provided with both isolated and nonisolated communication circuits. Featured on the DS200SLCCG1ADC card is a LAN control processor (LCP), which filters signals sent to the drive. All program memory for the LCP is housed in the two removable EPROM memory compartments. The card also includes dual ported RAM to provide any space needed for the LCP to interface with the drive’s wired drive control board. Onboard features are completed with an attachable keypad. This alphanumeric keypad programmer provides users with access to any onboard diagnostics and system setting options. This DS200SLCCG1ADC PCB, while existing as a LAN Commonications Card in its own right, is not actually the originally-developed product of this specific Mark V Series functionality; that would be the DS200SLCCG1 parent LAN Communications Card notably not containing this DS200SLCCG1ADC PCB's three significant product revisions. Generally, this DS200SLCCG1ADC LAN Communications Card's voltage suppression and limitation will involve its normal Mark V Series assembly's adoption of a specific series of hardware components and component specifications including various styles of capacitors, resistors, transistors, diodes, and integrated circuits.
Any drive board shipped from AX Control is carefully packaged in a static resistant plastic wrapping designed to protect the card. Before beginning any installation process, be sure to review the provided storage and installation parameters provided by the manufacturer. Only users qualified to handle these boards should be permitted to install the DS200SLCCG1ADC LAN communication card. A complete guide to wiring the device can be found in the device’s manual as well as its datasheet. General Electric was the original provider of technical support for all members of the Mark V series. Our trusted team at AX Control is happy to help with all of your automation needs. To receive availability and pricing information, please contact a member of our sales team via phone or email. This DS200SLCCG1ADC printed circuit board is not surrounded by a great expanse of originally-printed instructional manual materials online, in large part due to its functional series discontinuation. With this being the case, the DS200SLCCG1ADC functional product number can be considered a strong source of DS200SLCCG1ADC Board information; coding for specific details in a series of consecutive functional naming segments. For instance, the DS200SLCCG1ADC functional product number is started by the dual-functional DS200 series tag delegating this DS200SLCCG1ADC PCB's normal Mark V Series assembly and its domestic original manufacture location. Some of the other details revealed through the DS200SLCCG1ADC functional product number includes its:
- SLCC functional product acronym
- Group one Mark V Series product grouping
- Normal PCB coating style
- A-rated primary functional revision
- D-rated secondary functional revision
- C-rated artwork configuration revision
