About the DS200SLCCG1ACC

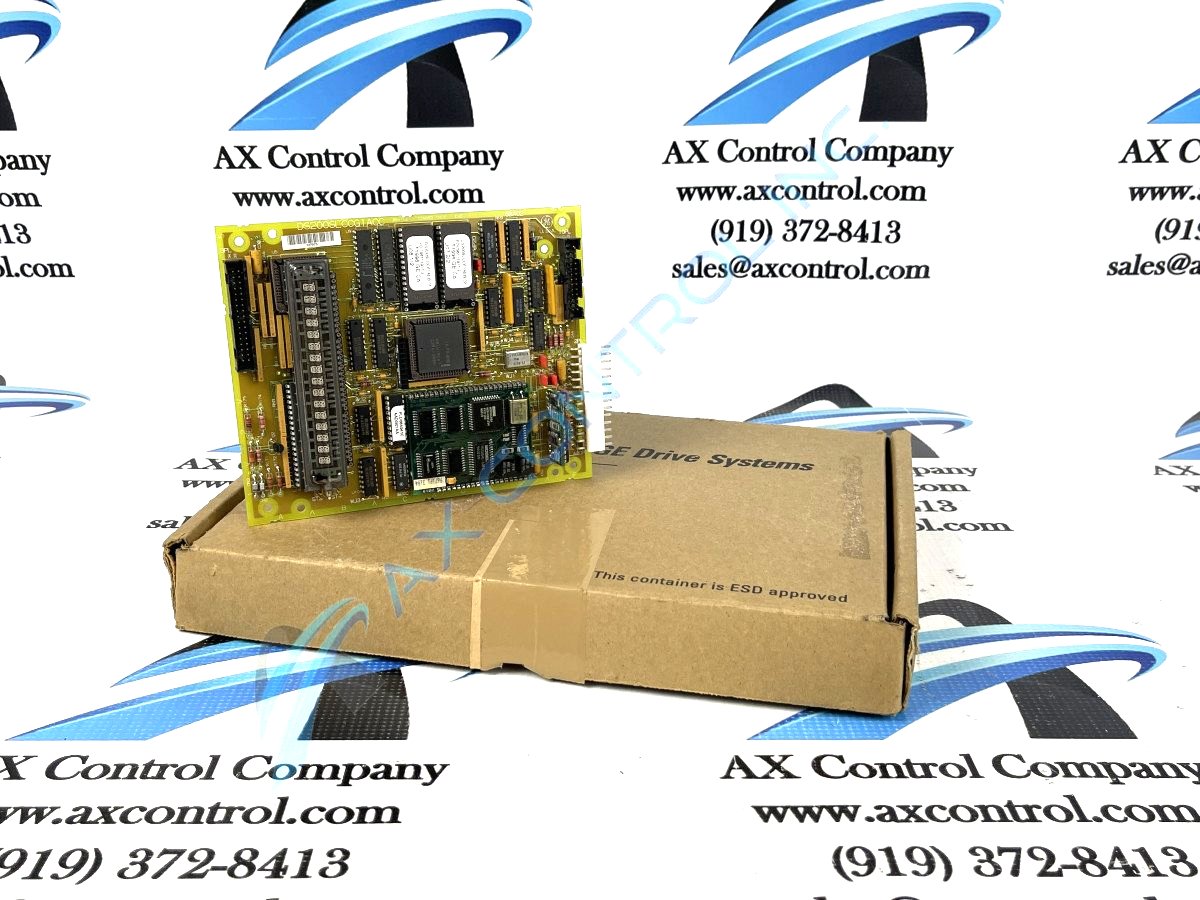

The DS200SLCCG1ACC board is a LAN (local area network) communication card developed by General Electric. This card was manufactured as a member of drive board Mark V Turbine Control System Series. Cards from this series are developed to be installed in a number of drives and exciters across the GE family. The Mark V Series that this DS200SLCCG1ACC LAN Communications Card belongs to, as you may have been able to tell by its full extended series name, has a series of specific applications in the management and control systems of popular and compatible wind, steam, and gas turbine automated drive assemblies. With this being the case, this DS200SLCCG1ACC product offering's greater Mark V Series must still be considered a now-obsolete legacy product series as its manufacture was discontinued in one of the many years past its initial release due to a manufacturer-recognized functional series obsolescence. While generally obsolete, this DS200SLCCG1ACC PCB's greater Mark V Series still attracts some demand on the figurative automated industrial marketplace, as it exists as one of the lastly-developed General Electric product series to make use of their patented Speedtronic control system technology first seen with the rollout of the primary Mark I Series in the late 1960s.
Hardware Tips and Specifications
This unit specifically provides the host drive with the required processors for LAN communications. Since it was developed as a G1 version, this card includes the circuits required for both DLAN and ARCNET network connections. Installing the DS200SLCCG1ACC board provides the host drive with both isolated and nonisolated communications circuits. An integrated LAN control processor (LCP) is the key processing point on the board. Program memory for the LCP is available in the two onboard EPROM memory modules. Interfacing using this board is performed with the on board dual ported RAM. The LCP and the drive’s connected drive control board use this space to communicate information. The board is complete with an attachable alphanumeric keypad. When connected, this 16 position display provides user access to system control settings and diagnostics. Generally, this DS200SLCCG1ACC PCB's voltage suppression and limitation strategy involves its normal Mark V Series assembly's base circuit board's acceptance of a series-standardized group of voltage-suppressing hardware components such as different styles of capacitors, transistors, resistors, and integrated circuits. This DS200SLCCG1ACC printed circuit board product offering is actually not the originally-developed product of its specific Mark V Series functionality; that would be the DS200SLCCG1 parent LAN Communications Card notably missing this DS200SLCCG1ACC Device's three significant revisions.
All drive boards shipped by AX Control will be protected by a static resistant plastic bag. Do not begin device installation before all provided storage and installation parameters are reviewed. Personnel trained to handle drive boards such as the DS200SLCCG1ACC should be the only users handling the card. Please refer to the device manual and datasheet for a comprehensive wiring guide for this LAN communication board. Originally, this device was provided with technical support by the manufacturer, General Electric. Our knowledgeable sales team at AX Control is happy to speak with you about all of your automation needs. Please contact our staff for pricing and all other information for the DS200SLCCG1ACC. Given the fact that this DS200SLCCG1ACC PCB is a member of a now-obsolete legacy product series, the DS200SLCCG1ACC functional product number becomes a primary source of DS200SLCCG1ACC Board hardware component and component specification information; coding for specific details in a series of consecutive functional naming segments. For instance, the DS200SLCCG1ACC functional product number starts off with a dual-functional naming segment in the DS200 series tag delegating this DS200SLCCG1ACC PCB's normal Mark V Series assembly as well as its domestic original location of manufacture. Some of the other relevant hardware details revealed by way of this DS200SLCCG1ACC PCB's functional product number includes its:
- SLCC functional product abbreviation
- Group one Mark V Series product grouping
- Normal PCB coating style
- A-rated primary functional revision
- C-rated secondary functional revision
- C-rated artwork configuration revision
