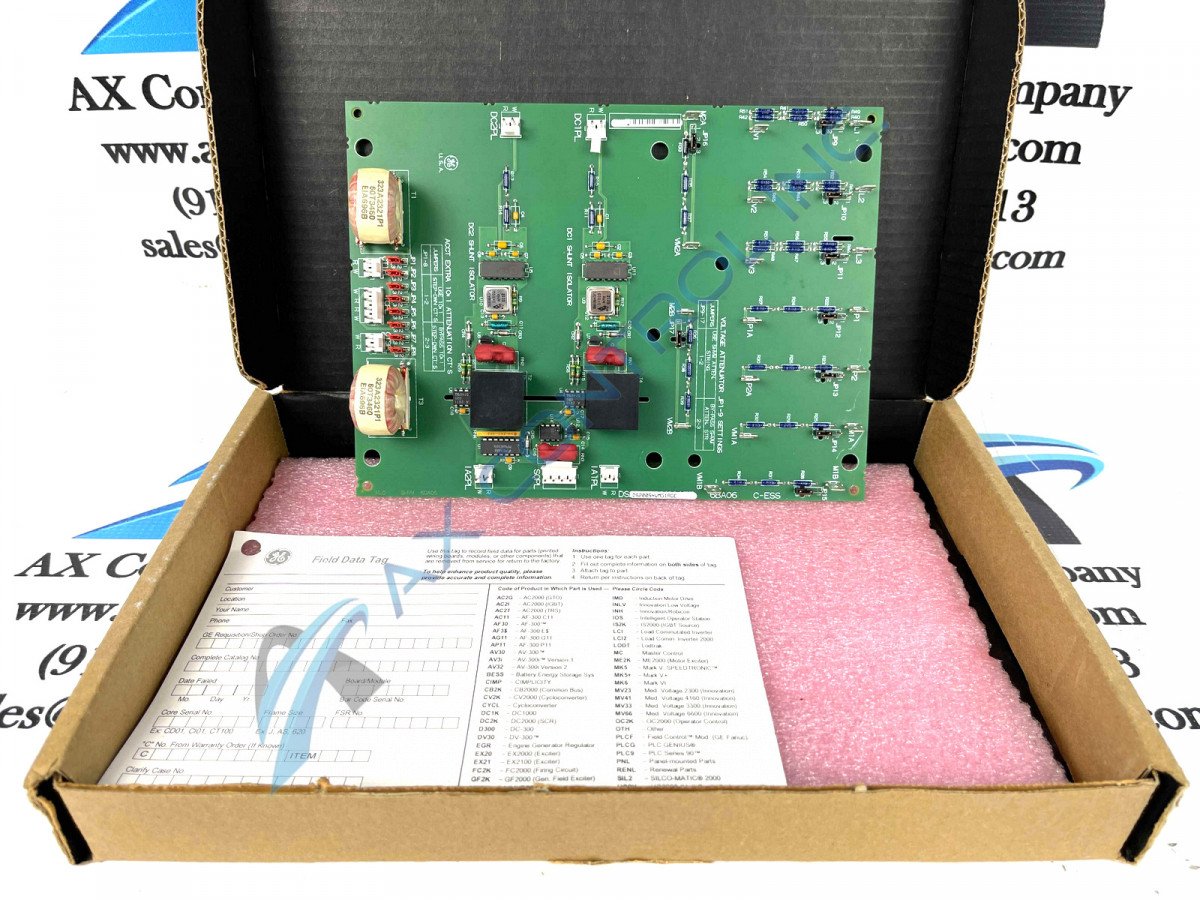

The DS200SHVMG1A SCR High Voltage Interface Board was manufactured by General Electric for the Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200SHVMG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SHVMG1A
  • SKU: DS200SHVMG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SHVMG1A Technical Specifications

Original Manufacturer GE General Electric
Product Series Mark V
Functional Part Number DS200SHVMG1A
Functional Description SCR High Voltage M-Frame Interface Board
Instruction Manual GEI-100174
Functional Acronym SHVM
PCB Coating Style Normal Coating
1st Functional Revision A

About the DS200SHVMG1A

The General Electric DS200SHVMG1A is a high voltage M-frame interface board. This unit is a member of the Mark V series of optional and replacement boards. When installed, this card provides an interface medium from the M-frame drive’s SCR bridge to the power supply board (DCFB or SDCI) as well as powerconnect cards (PCCA). A number of GE brand exciters and drives can have this board installed in its cabinet, although this DS200SHVMG1A PCB has specific applications in the control and management systems of wind, steam, and gas turbine automated drive assemblies. The Mark V Series that this DS200SHVMG1A SCR High-Voltage M-Frame Interface Board belongs to is a General Electric legacy series as its production has been discontinued in the years following its initial release. While this DS200SHVMG1A product offering's greater Mark V Turbine Control System Series is classifiable as a General Electric legacy series, it is also identifiable as one of the final General Electric product series to feature their patented Speedtronic control system technology. This DS200SHVMG1A SCR High-Voltage M-frame Interface Board is not the originally-manufactured device of its functionality to feature within the Mark V Series; that would be the DS200SHVMG1 parent printed circuit board missing this DS200SHVMG1A Board's A-rated functional product revision.

Hardware Tips and Specifications

When installed, DS200SHVMG1A provides an array of functions to the drive, which is achieved through its inclusion of a specific set of functionality-introducing hardware components and component specifications. Shunt signals between -500 and 500 mV are converted into differential frequency outputs between 0 and 500 kHz. These signals are then sent to either the DCFB or SDCI boards or the PCCA card. Using DC positive and negative floating shunts, the VCO (voltage controlled oscillator) circuits act as the conversion points for the voltages. This card also offers the AC line currents a 10:1 current transformer attenuation. Attenuation is user-selectable using the 17 onboard configurable jumpers. If the AC line voltage ranges from 240 to 600 V, bypass the attenuators. Should voltages range between 601 to 1000 V, they should be included. This DS200SHVMG1A printed circuit board features many more general, Mark V Series-standardized hardware components and component specifications in its assembly beyond just its functional component inclusions. For starters, the internal assembly of this DS200SHVMG1A printed circuit board makes use of a standard number of voltage-limiting and suppressing hardware components, such as capacitors, diodes, and rectifiers. Additional voltage protection for this static-sensitive DS200SHVMG1A printed circuit board exists in the form of its normal style of PCB protective coating and the insulated rings that have been carefully installed over this DS200SHVMG1A product's factory-drilled installation holes.

The normal style of PCB coating unique to this DS200SHVMG1A product offering was discovered upon an analysis of its DS200SHVMG1A functional product number, which contains functional chunks naming different specifications for the DS200SHVMG1A board itself. Some of the other DS200SHVMG1A board-specific information embedded in the DS200SHVMG1A functional product number includes this DS200SHVMG1A SCR High-Voltage M-frame Interface Board's normal Mark V Series assembly, domestic location of original manufacture, SHVM functional product abbreviation, group one Mark V Series grouping, and finally its possession of an A-rated functional product revision. Any manufacturer provided installation parameters for both the drive and the board should be met. Following these guidelines ensures that the entire drive system operates as required. The series manual as well as the device datasheet contains a complete wiring and installation guide. DS200SHVMG1A as well as the entire Mark V series was originally provided technical support by the manufacturer, General Electric. AX Control’s trusted and friendly sales team is happy to help with all of your DS200SHVMG1A needs. Current prices and availabilities on this and other parts and repairs are available by contacting our office via phone or email.

Frequently Asked Questions about DS200SHVMG1A

What does DS200SHVMG1A provide an interface for?
DS200SHVMG1A provides an interface for signals from an M-frame drive's SCR bridge to the DCFB or SDCI Power Supply Board and PCAA Power Connect Card. Once interfaced, DS200SHVMG1A can convert shunt signals into differential-frequency outputs sent to the DCFB or SDCI board, DS200SHVMG1A can incorporate hardware jumper-selectable 10:1 current transformers for additional current attenuation capability, and DS200SHVMG1A can provide attenuation of AC line, motor armature, and SCR bridge voltages.
What hardware is included with DS200SHVMG1A?
Included in DS200SHVMG1A's hardware are configurable jumpers, wiring plug connectors, and stab connectors. You can find descriptions of each part of DS200SHVMG1A's hardware in the manual for DS200SHVMG1A - Manual GEI-100174.
What is included in the manual for DS200SHVMG1A?
Within the DS200SHVMG1A manual, which is the GE Industrial Control Systems SCR High Voltage M-Frame Interface Board Manual for DS200SHVMG1A - Manual GEI-100174- is important information in understanding DS200SHVMG1A. The manual's contents include: safety symbol legend, a functional description of DS200SHVMG1A and all SHVM boards, application data for DS200SHVMG1A which includes DS200SHVMG1A hardware, jumpers, and board connections, and a renewal/warranty replacement section for DS200SHVMG1A repair and replacement parts.
Where can I find a list of the jumpers on DS200SHVMG1A?
You will find a list of DS200SHVMG1A's jumpers and jumper description in table 1 in the manual for DS200SHVMG1A - Manual GEI-100174. DS200SHVMG1A has 17 total parameters- parameters JP1-JP17.

Reviews For DS200SHVMG1A

Internal Review
(5.0)

This DS200SHVMG1A printed circuit board or PCB for short is a robustly-supported General Electric device that functions as a SCR High-Voltage M-frame Interface Board within the Mark V Series. This DS200SHVMG1A product offering is well voltage-protected by many GE hardware components such as rectifiers, diodes, and capacitors, and offers a normal assembly style with a revision. Available here today, for both repair and replacement. - AX Control Lead Technician
