DS200SHVIG1B Technical Specifications

Instruction Manual GEI-100160
Manufacturer GE General Electric
Part Number DS200SHVIG1B
Product Type SCR High Voltage Interface Board
Series Mark V

Product Description

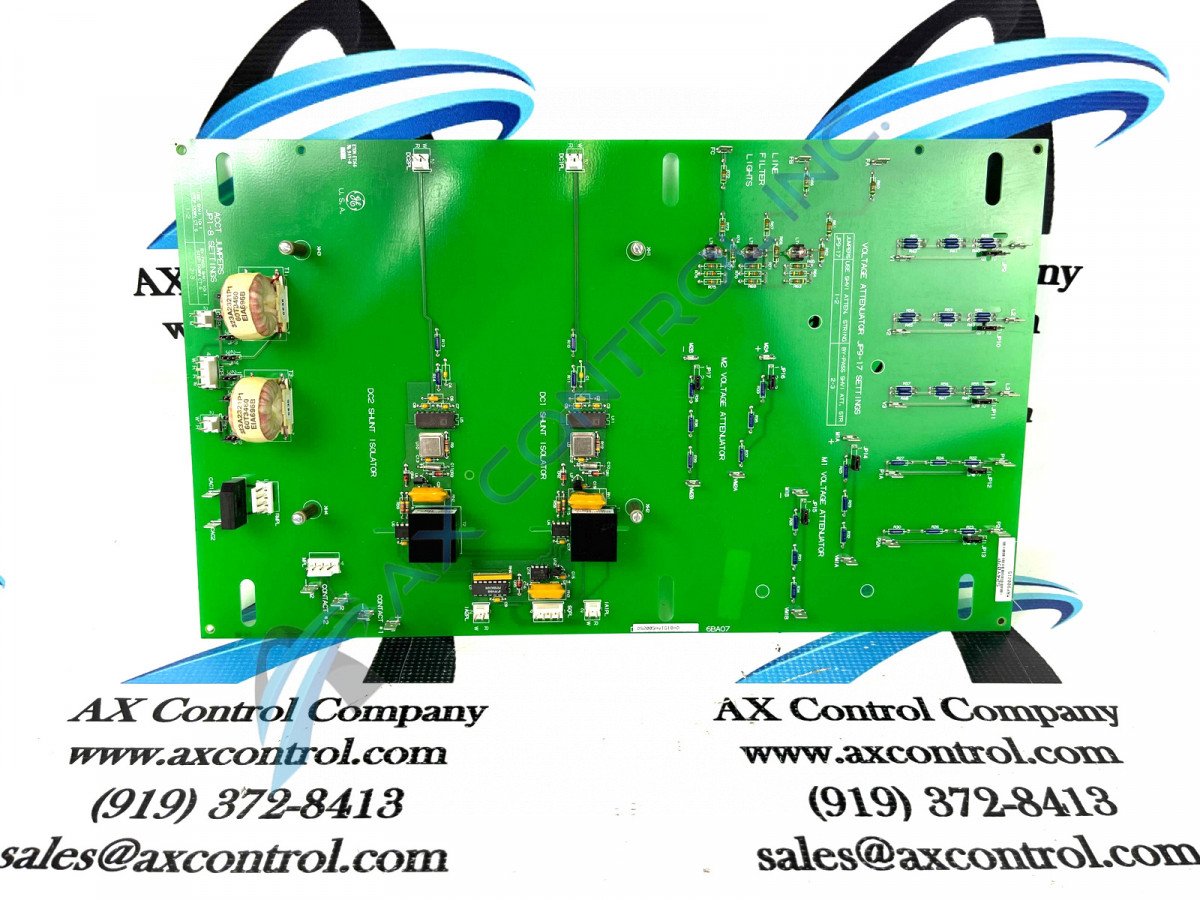

General Electric’s DS200SHVIG1B is an SCR high voltage interface board. As a member of the Mark V board series, this card can be easily mounted into any number of GE brand drives. When installed, this board acts as an intermediary between incoming voltage signals and the power supplies of the drive. Signals can be communicated via this board from the power connect card (PCCA), the power supply, and the instrumentation card.

DS200SHVIG1B works to convert and transmit voltage signals that are fed to the board. Signals ranging from -500 to 500 mV are accepted by the card. These signals are then converted into differential frequencies ranging from 0 to 500 kHz. The drive’s power supply then receives these new frequencies from the card to respond accordingly. Configurability is a key feature of this board’s design. Featured on the card are seventeen configurable jumpers that add additional attenuation capabilities. These jumpers are protected with 10:1 current transformers. Users are alerted via the three onboard LED indicator lights should any of the filter fuses on board blow.

Following all proper installation parameters with this high voltage board ensures the card and its drive operate properly. Meeting all manufacturer provided installation instructions is imperative to promoting proper device function. Wiring DS200SHVIG1B correctly is important for drive operation. A complete wiring instruction manual is available in the board’s manual as well as its datasheet. Members of the Mark V series of optional and replacement boards were originally provided with technical support by the manufacturer, General Electric.

The sales team at AX Control is happy to assist with all of your DS200SHVIG1B needs. Please contact our staff by phone or email to receive current prices on this board as well as all other parts and repairs.

Frequently Asked Questions about DS200SHVIG1B

What type of driver circuits does DS200SHVIG1B have?
DS200SHVIG1B has driver circuits for both standard and fast contactors, even though the fast contactors on DS200SHVIG1B require either a CDAA or one or more DS200CDBA contact driver car
How is DS200SHVIG1B mounted?
DS200SHVIG1B is mounted on 6 nylon standoffs. The standoff nuts secure DS200SHVIG1B to the standoffs.
Where can I view a diagram of DS200SHVIG1B?
To see a diagram of DS200SHVIG1B, view figure 1 in the manual for DS200SHVIG1B - Manual GEI-100160. This manual is the SCR High Voltage Interface Board Manual and figure 1 in the manual is an SHVI board layout, displaying DS200SHVIG1B.
Which manual is used with DS200SHVIG1B?
The manual to use with DS200SHVIG1B is Manual GEI-100160. This manual is the GE Drive Systems Configurable Hardware for SHVI SCR High Voltage Interface Boards Manual. Although this is mainly a hardware manual, this manual will be helpful with DS200SHVIG1B and we can send you a copy of this manual upon manual request.
