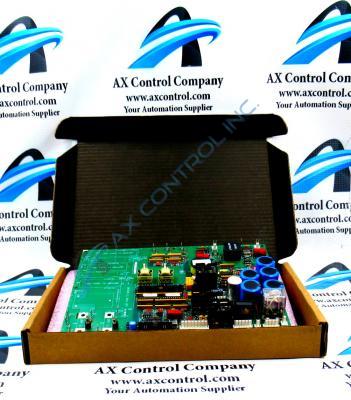

This DS200SDCIG2AHB Power Supply and Instrumentation Board was manufactured for General Electric's Mark V Series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200SDCIG2AHB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SDCIG2AHB
  • SKU: DS200SDCIG2AHBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SDCIG2AHB Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200SDCIG2AHB
Product Type SDCI DC Power Supply and Instrumentation Board
Instruction Manual GEI-100173
Assembly Type Normal Assembly
Mark V Series Grouping Group 2

About the DS200SDCIG2AHB

This DS200SDCIG2AHB printed circuit board was manufactured by General Electric, as mentioned before, for specific placement in their Mark V Turbine Control System Series as a Power Supply and Instrumentation Board. This DS200SDCIG2AHB printed circuit board or PCB for short's greater Mark V Series is not currently being manufactured today, as its production was discontinued in the many years following its initial release as part of its transition into a now-obsolete legacy product series. With this being true, the Mark V Turbine Control System Series that this DS200SDCIG2AHB PCB product belongs to is still considered relatively technologically-sound, as it exists as one of the final General Electric product series to make use of their patented Speedtronic control system technology first seen alongside the release of the Mark I Series in the late 1960s. This DS200SDCIG2AHB device is not considered the original Power Supply and Instrumentation Board manufactured for their Mark V Series; that would be the DS200SDCIG2 parent printed circuit board not making use of any functionality or artwork-altering significant product revision.

Hardware Tips and Specifications

The General Electric Direct Current Power Supply and Instrumentation Board DS200SDCIG2AHB serves as an interface to DC2000 model drives, and incorporates a specific series of functionality-inducing hardware components into its assembly to achieve this. The DS200SDCIG2AHB is prone to be damaged by static electricity. However, there are some general rules you can follow to avoid the damage caused by charges of static. Until you install the board keep the board in the static protective package and touch it on an unpainted metal surface, which could be the drive or other device or structure. Let it touch the metal surface for 2 seconds to let the static drain off the board. Three total pieces of customizable hardware are available in the assembly of this DS200SDCIG2AHB DC Power Supply and Instrumentation Board, they are all accompanied by their own factory-printed nomenclature labels. The customizable hardware in the assembly of this DS200SDCIG2AHB PCB include:

  • The JP1 MD Control Source Jumper
  • The JP2 MA AC Contactor Drop-Out Time Jumper
  • The SW1 Select CT Line Burdens Switch

Each of the previously-listed customizable hardware components in the assembly of this DS200SDCIG2AHB device have been named through a combination of their aforementioned factory-printed nomenclature labels plus their specific application in terms of the DS200SDCIG2AHB Power Suppy and Instrumentation Board and its greater Mark V Turbine Control System Series. The full name of this DS200SDCIG2AHB product's SW1 switch is the SW Select ac line CT burdens as a function of nominal dc output current Switch. Don’t keep the board outside of the static-protective package. Just place it directly in the drive to reduce the opportunity for static build up. Also, hold the board by the outside edges and never touch the components or the solder. Removing the defective board requires a few necessary steps to in order to prevent electric shock, electric burn, or a safety hazard. Make sure that all current is removed from the drive before you touch any components inside the drive. Follow the shutdown procedure as established for your site and to verify that all current is removed, use a current tester.Open the door on the drive to access the printed circuit boards, including the DS200SDCIG2AHB. You will notice that one board is blocking access to the DS200SDCIG2AHB. You can pull down two locking mechanisms to tilt forward the blocking board and gain access to the DS200SDCIG2AHB. Before you remove the board disconnect all cables.

Frequently Asked Questions about DS200SDCIG2AHB

What are the power supply circuits on DS200SDCIG2AHB?
DS200SDCIG2AHB has power circuits for +5 VDC, 4A; +/-15 VDC, 0.4A; +/-24 VDC, and 115 VAC, 0.4A.
What is the primary use for the DS200SDCIG2AHB manual?
The manual for DS200SDCIG2AHB, Manual GEI-100173, is a manual intended to help with replacement procedures for DS200SDCIG2AHB. The manual does not cover all details or variations in DS200SDCIG2AHB and the manual doesn't provide all info on installing, operating, and maintaing DS200SDCIG2AHB, but the manual does provide some of that info and the manual will help you in general with DS200SDCIG2AHB.
What fuses does DS200SDCIG2AHB have?
DS200SDCIG2AHB has fuses FU1-FU3, FU5, and FU6. You can find descriptions of these fuses on DS200SDCIG2AHB in Table 1 of the manual. Fuses on DS200SDCIG2AHB are associated with a light or LED. When a fuse blows on DS200SDCIG2AHB, the light turns on.
What type of jumpers does DS200SDCIG2AHB use?
DS200SDCIG2AHB uses Berg-type, or manually moveable jumpers identified by a JP nomenclature. The jumpers on DS200SDCIG2AHB are used for manufacturing test or customer options on DS200SDCIG2AHB.

Reviews For DS200SDCIG2AHB

Internal Review
(5.0)

This DS200SDCIG2AHB printed circuit board product offering or PCB for short was first distributed with a specific placement in the now-obsolete Mark V Turbine Control System Series, although this DS200SDCIG2AHB PCB is altered from its original base-revised dimensions and basic hardware specifications through a three-fold revision history including the seldom-seen H-rated secondary functional product revision. This DS200SDCIG2AHB PCB also belongs to the less-common second grouping of Mark V Series product offerings. - AX Control Lead Technician
