The DS200SDCIG1ADA Dc Power Supply/Instrumentation Card was manufactured by General Electric for the Mark V Series.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS200SDCIG1ADA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SDCIG1ADA
  • SKU: GBTC-11490
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SDCIG1ADA Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200SDCIG1ADA
Functional Description SDCI DC Power Supply and Instrumentation Board
Instruction Manual GEI-100173
Functional Acronym SDCI
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 D
Artwork Revision A
Shipping Weight 2.61 lb

About the DS200SDCIG1ADA

  • The Mark V Series is applied in the control and management systems of gas, steam, and wind turbine automated drive assemblies.
  • This series is now considered an obsolete legacy product series, as its manufacture has been discontinued.
  • The Mark V Series is notable as one of the final GE product series to use the patented Speedtronic control system technology, first introduced with the Mark I Series in the mid to late 1960s.
  • The DS200SDCIG1ADA is not the original device for this specific Mark V Series function; the original was the DS200SDCIG1 parent board, which lacks the DS200SDCIG1ADA's three significant product revisions.
  • It serves as an interface to DC2000 drives.

Hardware Tips and Specifications
  • The board features jumpers that can be moved to change its behavior (e.g., delaying contactor opening).
  • Switches are present to configure the AC current transformer for proper operation.
  • Safety Precaution: If changing settings or removing the board while operational, you must first remove current to the drive and verify no current is stored in capacitors on the board.
  • Five fuses are included for basic voltage suppression and protection.
  • The board's functional product number (DS200SDCIG1ADA) itself is a strong source of information about its hardware components and specifications, coding for details like:
    • DS200 series tag: Indicates Mark V Series assembly and domestic original manufacture location.
    • SDCI: Functional acronym.
    • Group one: Mark V Series product grouping.
    • Normal PCB coating style.
    • A-rated primary functional revision.
    • D-rated secondary functional revision.
    • A-rated artwork configuration revision.

Technical Support
  • Technical support is available for specific questions or ordering a replacement board.
  • When calling for service, have the board on a smooth, clean, well-lit surface.
  • Be ready to provide the model number, catalog identifier, and other identification information found on the edge of the board.
  • A replacement board version might look different or have different components, but it will be compatible for swapping.
  • The prevalence of replacement and installation procedures on the DS200SDCIG1ADA's product page indicates a lack of acceptable online instructional manual materials.

Frequently Asked Questions about DS200SDCIG1ADA

What protective fuses does DS200SDCIG1ADA have?
DS200SDCIG1ADA contains protective fuses FU1 through FU3, FU5, and FU6. View table 1 in the manual for DS200SDCIG1ADA, Manual GEI-100173, for functions of each of DS200SDCIG1ADA's fuses. When one of DS200SDCIG1ADA's fuses blows, a fuse light or LED will turn ON on DS200SDCIG1ADA.
What are the steps in replacing a DS200SDCIG1ADA?
To replace your DS200SDCIG1ADA board, it is best to view he detailed steps in the Procedure for Replacing Boards section of the Manual for DS200SDCIG1ADA - Manual GEI-100173. For a simplistic version of how to replace a DS200SDCIG1ADA, first turn power off on DS200SDCIG1ADA, then open DS200SDCIG1ADA's cabinet door to access the printed wiring boards, expose the DS200SDCIG1ADA and pull the locks on either side of the cabinet, and remove the DS200SDCIG1ADA by disconnecting all cables. Once DS200SDCIG1ADA is removed, replace DS200SDCIG1ADA with the new DS200SDCIG1ADA and set all configurable items in the same position as the DS200SDCIG1ADA being replaced.
What version is DS200SDCIG1ADA?
DS200SDCIG1ADA is a G1 version SDCI drive as indicated by the "G1" in DS200SDCIG1ADA's model number. Because DS200SDCIG1ADA is version G1, DS200SDCIG1ADA includes circuits for an internal less than or equal to 10 amp field exciter.
Where can I find the manual for DS200SDCIG1ADA?

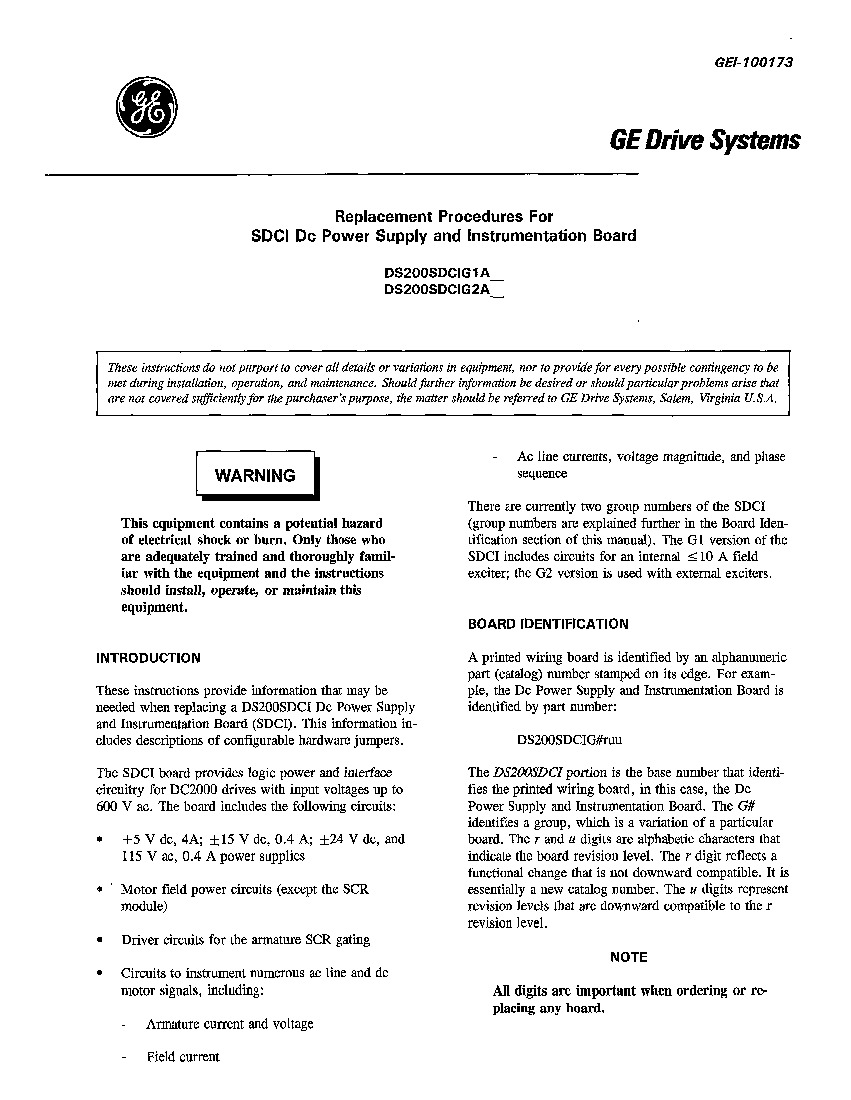

We are happy to send you the manual for DS200SDCIG1ADA. The manual for DS200SDCIG1ADA is Manual GEI-100173, the Replacement Procedures for SDCI DC Power Supply and Instrumentation Board Manual. For a copy of the manual, send us a request for the manual for DS200SDCIG1ADA via email at sales@axcontrol.com.

Reviews For DS200SDCIG1ADA

Internal Review
(4.0)

When replacing or maintaining this board, users should be aware that potentially lethal voltages are present. Be sure to turn off power to the board before touching the SDCI board or any of its connected circuits. While a generally highly-charged product, this DS200SDCIG1ADA DC Power Supply and Instrumentation Board should still be somewhat protected by its series of five total fuses, with individual factory-printed nomenclature labels as delegated in the DS200SDCIG1ADA Instructional Manual attached in our manuals tab above. - AX Control Lead Technician
