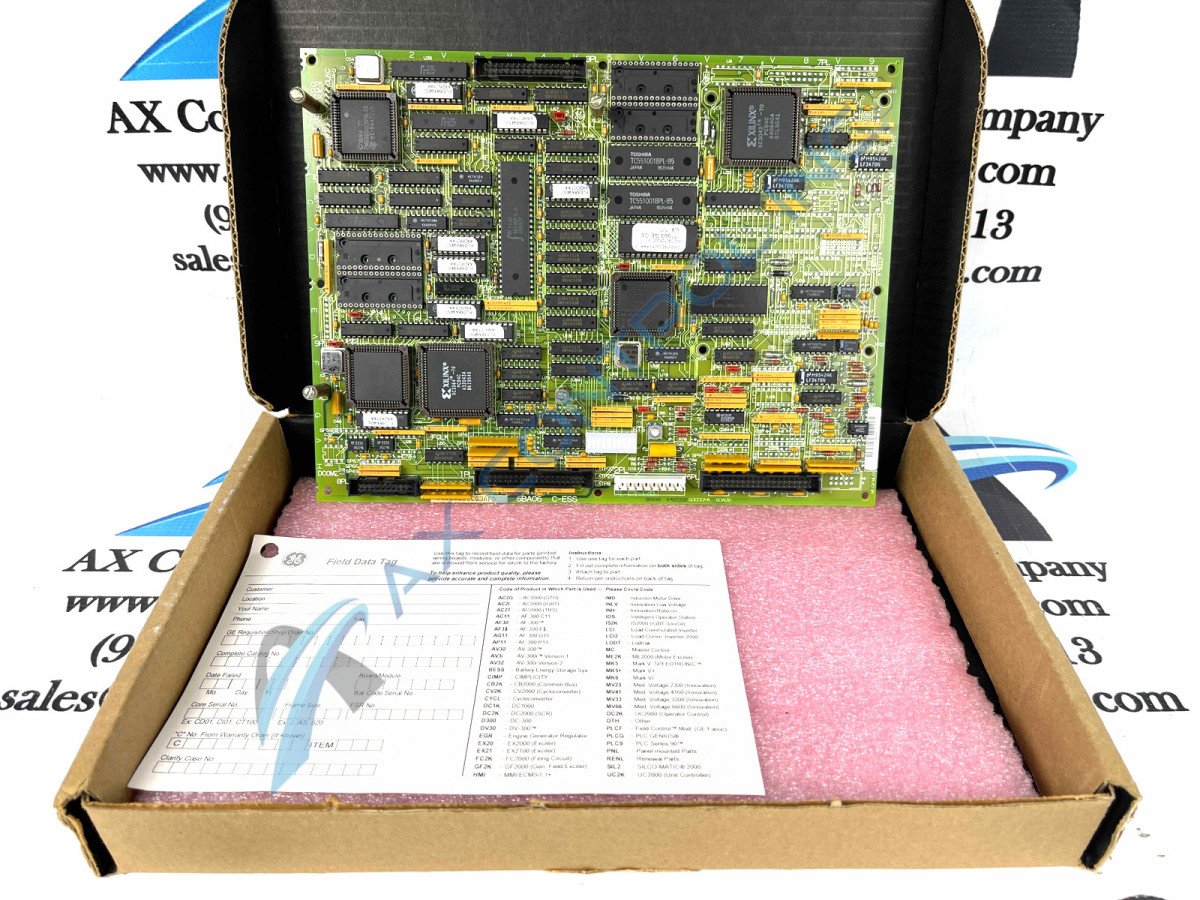

The GE Industrial Systems DS200SDCCG3A primary drive control card was manufactured for use in their Mark V series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200SDCCG3A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SDCCG3A
  • SKU: DS200SDCCG3AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SDCCG3A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200SDCCG3A
Functional Description Drive Control Card
Instruction Manual GEI-100029
Functional Acronym SDCC
PCB Coating Normal Coating
Functional Revision 1 A

About the DS200SDCCG3A

This DS200SDCCG3A Drive Control Board was originally designed and produced by General Electric for use specifically in their Mark V Series of turbine control systems and turbine control system component products. This DS200SDCCG3A product offering's Mark V Series is considered a legacy series, since its eventual discontinuation by the General Electric original manufacture, but it also exists as one of the final General Electric Mark Series to feature the patented Speedtronic technology first introduced with the rollout of the Mark I in the late 1960s. This DS200SDCCG3A Drive Control Board, while in possession of a normal style of Mark V Series assembly, is considered not to be the original product of its functionality to make an appearance within the Mark V; that would be the DS200SDCCG3A Drive Control Board notably missing this DS200SDCCG3A product's singular A-rated functional product revision.

Hardware Tips and Specifications

The GE Drive Control Board DS200SDCCG3A is the primary controller for the Mark V Series automated drive assembly in which it is featured prominently. The GE Drive Control Board DS200SDCCG3A is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time. The installation of the GE Drive Control Board DS200SDCCG3A must be performed by a qualified servicer or installer because of the high-energy contained in the drive and the moving parts. There is a risk of electric shock from touching components in the drive while power is applied to the drive; this electricity can also cause burns and other injuries. The powerful moving parts can also cause injury if proper measures are not taken to remove power from the drive before starting the replacement. The best practice to remove power to the drive as necessary before attempting an installation is to remove the fuses from the power supplies that deliver current to the drive.

The DS200SDCCG3A functional product number itself can be considered a strong source of hardware component and specification information pertinent to this DS200SDCCG3A product offering, given the DS200SDCCG3A board's lack of original factory-printed instructional manual documentation available online. The DS200SDCCG3A functional product number codes for information such as this DS200SDCCG3A PCB's:

  • Normal Mark V Series assembly type
  • Domestic location of original manufacture
  • SDCC functional product abbreviation
  • Normal Style of PCB protective coating
  • Group one Mark V Series product grouping
  • A-rated functional product revision

The normal style of PCB coating that is specific to this DS200SDCCG3A Drive Control Board exists as a thick rudimentary layer of daily wear and tear PCB protection that envelops and protects individual hardware components on the base DS200SDCCG3A circuit board on a functional priority basis. This DS200SDCCG3A PCB's single A-rated functional revision may later this General Electric printed circuit board product offering's performance specifications and dimensions from their original base-revised statuses.

Frequently Asked Questions about DS200SDCCG3A

What does the instruction manual for DS200SDCCG3A discuss?
The instruction manual for DS200SDCCG3A, Manual GEI-100029, addresses only drive applications of DS200SDCCG3A. This manual is the GE Motors and Industrial Systems Drive Control Card Manual, a direct manual to DS200SDCCG3A. And though the manual does not cover all of DS200SDCCG3A's operations and troubleshooting issues, the manual is a great introduction of DS200SDCCG3A.
What makes DS200SDCCG3A different than other SDCC cards?
DS200SDCCG3A is a G3 version board so it is different than G1 and G4 SDCC boards. DS200SDCCG3A is a variation of SDCC that has reduced functionality. DS200SDCCG3A is used in DC1000 drives.
What is connector 8PL on DS200SDCCG3A?
DS200SDCCG3A's 8PL connector is the I/O between the Drive Terminal Board or Simple Drive Terminal Board and DS200SDCCG3A.
How many faults does DS200SDCCG3A have?
DS200SDCCG3A has 1023 faults. Faults 1-399 on DS200SDCCG3A have a slow blink rate and follow a BCD pattern. Faults 400 to 1023 on DS200SDCCG3A have a faster blink rate and a binary pattern.
