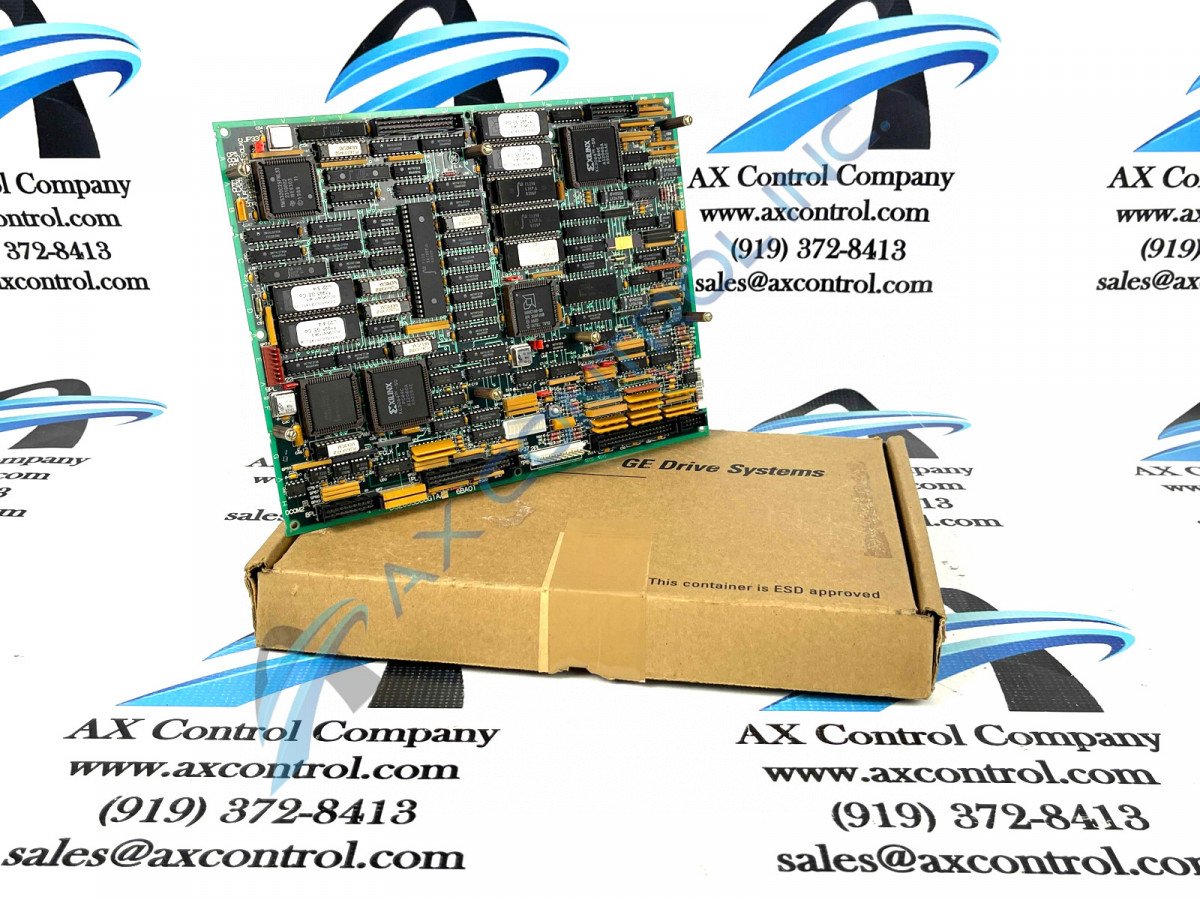

This DS200SDCCG1ABA PCB is a Drive Control Card manufactured for the Mark V Series of the General Electric retailer.



Sell Surplus: Have a DS200SDCCG1ABA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SDCCG1ABA
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SDCCG1ABA Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200SDCCG1ABA
Functional Description Drive Control Card
Instruction Manual GEI-100029
Functional Acronym SDCC
PCB Coating Normal Coating
Revision Quantity 3 Revisions
Assembly Type Normal Assembly
Artwork Revision A
Static Sensitivity Static-Sensitive

Product Description

This DS200SDCCG1ABA Drive Control Card was, as mentioned previously, originally manufactured for placement in General Electric's Mark V Series. The Mark V Series is the fifth generation of Speedtronic Turbine Control System manufactured by the giant industrial retailer General Electric, and has been distributed under many General Electric shell companies, including GE Industrial Systems, GE Drive Control Systems, and more recently, GE Energy. This DS200SDCCG1ABA Drive Control Card is actually the updated version of an earlier Mark V Series product offering, altering the DS200SDCCG1ABA De-Excitation Control Board through its inclusion of three total product revisions; two functional product revisions and a singular, A-rated artwork revision.

Hardware Tips and Specifications

The General Electric Drive Control Board DS200SDCCG1ABA is the primary controller for the Mark V Series drive. The GE Drive Control Board DS200SDCCG1ABA is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time. These microprocessors are designed to perform different functions; One microprocessor performs motor control functions that require additional processing capability. There are two other microprocessors that perform signal I/O functions including watchdog timer, and direct memory access controller functions. One of these two final microprocessors performs functions that requires very dedicated mathematical processing capabilities, so little to no simple replacement options exist for this DS200SDCCG1ABA De-Excitation Control Board.

This DS200SDCCG1ABA De-Excitation Control Board must be treated as a static-sensitive device. Static that is on your body and other metal structures can damage some components on the board. Best practice to avoid damaging the DS200SDCCG1ABA PCB with static electricity is to treat all circuit boards as static sensitive, while following any relevant General Electric guidelines. When you handle the board, make sure to always wear a wrist strap; with one end of the wrist strap being attached to your wrist and the other end clips to a bare metal surface on the workbench or other metal structure. For convenience's sake, some wrist straps are equipped with a plug that connects to a connector on the workbench. Either way, any static is drained from the board or your body to ground supplied by the bare metal. This three-times-revised Mark V Series product offering will be shipped in static-sensitive packing materials immediately upon your original purchase here.

Frequently Asked Questions about DS200SDCCG1ABA

What does DS200SDCCG1ABA contain?
DS200SDCCG1ABA contains the primary control circuitry and software for a drive or exciter. DS200SDCCG1ABA has three 16-bit microprocessors and DS200SDCCG1ABA has interface circuitry that connects with other boards to form various types of AC and DC motor drives. The interface circuitry on DS200SDCCG1ABA controls and processes drive and motor signals, and customer I/O.
How are faults 1-399 on DS200SDCCG1ABA displayed?
Faults 1-399 on DS200SDCCG1ABA are displayed on DS200SDCCG1ABA's interface through a binary coded decimal pattern. These faults on DS200SDCCG1ABA have a slow blink rate.
What are the testpoints on DS200SDCCG1ABA for?
The onboard testpoints on DS200SDCCG1ABA are for test and troubleshooting purposes on DS200SDCCG1ABA. Table 1 in the manual for DS200SDCCG1ABA, Manual GEI-100029, lists and defines each of DS200SDCCG1ABA's testpoints.
Where can I find the manual for DS200SDCCG1ABA?
We can provide you with the manual for DS200SDCCG1ABA. The manual used with DS200SDCCG1ABA is Manual GEI-100029, which is the GE Motors and Industrial Systems Drive Control Card Manual. This manual does not cover all details of DS200SDCCG1ABA, but the manual is very helpful in introducing you to DS200SDCCG1ABA.

Reviews For DS200SDCCG1ABA

Internal Review

This DS200SDCCG1ABA Mark V Series product offering mixes some of the general benefits of its Mark V and General Electric manufacture with hardware traits and specifications afforded to the model due to its intended functionality as a Drive Control Card. An elevated number of three total microprocessors carry out the normative functioning of this DS200SDCCG1ABA model PCB for the main part, but it is well-supported by a full three-fold revision table and a normal Mark V Series assembly type. - AX Control Lead Technician
