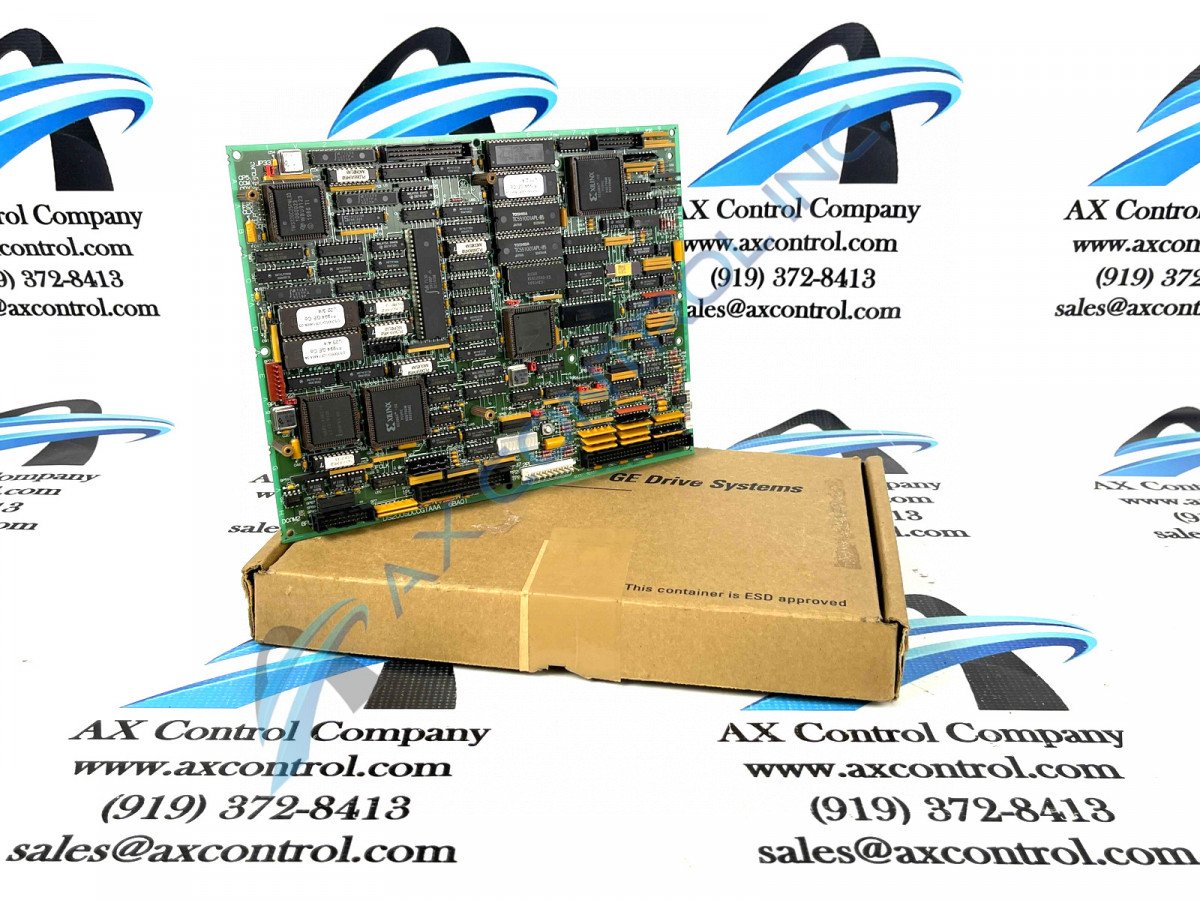

DS200SDCCG1AAA Image One
3 year warranty

DS200SDCCG1AAA Image 1
DS200SDCCG1AAA Image 2
DS200SDCCG1AAA Image 3
DS200SDCCG1AAA Image 4


    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (12)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (12)
  • Click a star to rate this product
This DS200SDCCG1AAA Drive Control Card is a Mark V Turbine Control System Series product produced by General Electric.



Sell Surplus: Have a DS200SDCCG1AAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200SDCCG1AAA
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200SDCCG1AAA Technical Specifications

OEM GE General Electric
Product Series Mark V
Product Number DS200SDCCG1AAA
Functional Product Description Drive Control Card
Instruction Manual GEI-100029
Functional Acronym SDCC
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 A
Artwork Revision A

Product Description

The GE Drive Control Board DS200SDCCG1AAA is the primary controller for the Mark V Turbine Control System Series drive assembly. This DS200SDCCG1AAA Drive Control Board or Drive Control Card is a Mark V Series product offering with a normal assembly version, as evidenced through the presence of the DS200 series tag in its DS200SDCCG1AAA functional product number. With that being said, it is important to realize that this DS200SDCCG1AAA PCB is not the original Drive Control Card that was manufactured for General Electric's Mark V Series; that would be the DS200SDCCG1 Drive Control Card missing this PCB's distinctive trio of A-rated product revisions.

Hardware Tips and Specifications

This DS200SDCCG1AAA Drive Control Card or Drive Control Board is a crucial member of the Mark V Series, and as such, is equipped with an additional selection of voltage-storing and suppressing hardware components and component specifications. The GE Drive Control Board DS200SDCCG1AAA is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time. Multiple connectors are on the GE Drive Control Board DS200SDCCG1AAA, which enable the board to receive and transmit signals to the other boards in the drive and also with the optional auxiliary cards that are attached to the GE Drive Control Board DS200SDCCG1AAA. The auxiliary cards provide additional functions to the board, for example, communication with a local area network and engage in signal processing functions. This DS200SDCCG1AAA Drive Control Card is a revised General Electric product. This DS200SDCCG1AAA Drive Control Board's three significant A-rated revisions change this device's original performance specifications and dimensions from their base DS200SDCCG1-product versions, which is important to consider before making a final purchase decision on this DS200SDCCG1AAA Mark V PCB.

This DS200SDCCG1AAA Drive Control Board also is populated with 10 diagnostic LEDs, which are arranged in a row. These LEDs flash in an arrangement that provides information about the fault code; if no faults have occurred, the LEDs flash in sequence at a slow rate of speed from the outside edges of the row of LEDs to the center of the row. A reset can be performed on the DS200SDCCG1AAA board. This action causes a restart of the board but it also causes the drive to trip. To initiate a reset you can press the reset button located on the board or a software command can initiate the reset. You can edit the configuration settings of the board with the configuration tool available for that purpose. You can also use the tools to download the configuration to a laptop through a serial port connection.

Frequently Asked Questions about DS200SDCCG1AAA

What are the microprocessors on DS200SDCCG1AAA?
DS200SDCCG1AAA has three 16-bit microprocessors. DS200SDCCG1AAA has a drive control processor, which is an 80C186 mirocontroller with numerous built-in peripheral functions and uses both digital and analog I/O. DS200SDCCG1AAA has a motor control processor, which is also an 80C196 microcontroller but this microprocessor on DS200SDCCG1AAA has high-speed I/O, conventional digital I/O, analog I/O, timer/counters, and a watchdog timer. DS200SDCCG1AAA's last microprocessor is a co-motor processor, which is a TMS320C25 digital signal processor on DS200SDCCG1AAA that performs math-intensive functions for the motor control algorithms too complex for the MCP.
How does DS200SDCCG1AAA interface with other boards?
DS200SDCCG1AAA interfaces with other boards of the controller and external signals through 8 connectors. DS200SDCCG1AAA's connectors are 1PL-3PL, 6PL-9PL, and 11PL.
How many LEDs are on DS200SDCCG1AAA?
DS200SDCCG1AAA has 10 diagnostic LEDs on DS200SDCCG1AAA's display which show fault codes on DS200SDCCG1AAA in either BCD or binary form. Faults 1-399 on DS200SDCCG1AAA have a slow blink rate. Faults 400-1023 on DS200SDCCG1AAA have a faster blink rater. And when there is no fault or the drive is not running, DS200SDCCG1AAA will display sequential blinking, two at a time.
What is the purpose of DS200SDCCG1AAA's interface circuitry?
The interface circuitry on DS200SDCCG1AAA controls and processes drive and motor signals and customer I/O.

Reviews For DS200SDCCG1AAA

Internal Review

This DS200SDCCG1AAA printed circuit board from General Electric is a Drive Control Card manufactured specifically for use in their Mark V Speedtronic Series, as explained in great detail in the customized product page above. This DS200SDCCG1AAA Drive Control Card's three significant product revisions, while seemingly identical, are not all considered backwards-compatible, as two of those revisions exists as functional product revisions and the third as an artwork configuration revision. Available for repair or replacement here. - AX Control Lead Technician
