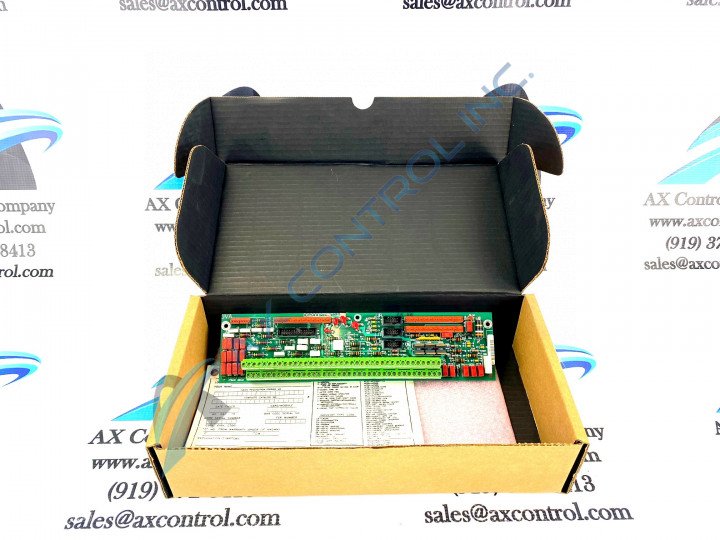

The GE DS200PTBAG1ABA is a Mark V Speedtronic PCB that functions as a termination board for the independent protection module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS200PTBAG1ABA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DS200PTBAG1ABA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
The GE DS200PTBAG1ABA is a Mark V Speedtronic PCB that functions as a termination board for the independent protection module.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS200PTBAG1ABA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The DS200PTBAG1ABA circuit board fits into General Electric’s Mark V Speedtronic turbine control system.  The MKV is just one of several Speedtronic turbine control systems released by GE since the 1960s, designed to protect, manage, and control industrial gas and steam turbine systems.   AX Control maintains on-hand replacement stock of many Speedtronic components for all of these systems, offering users a reliable source of these products that can no longer be sourced directly from the OEM.

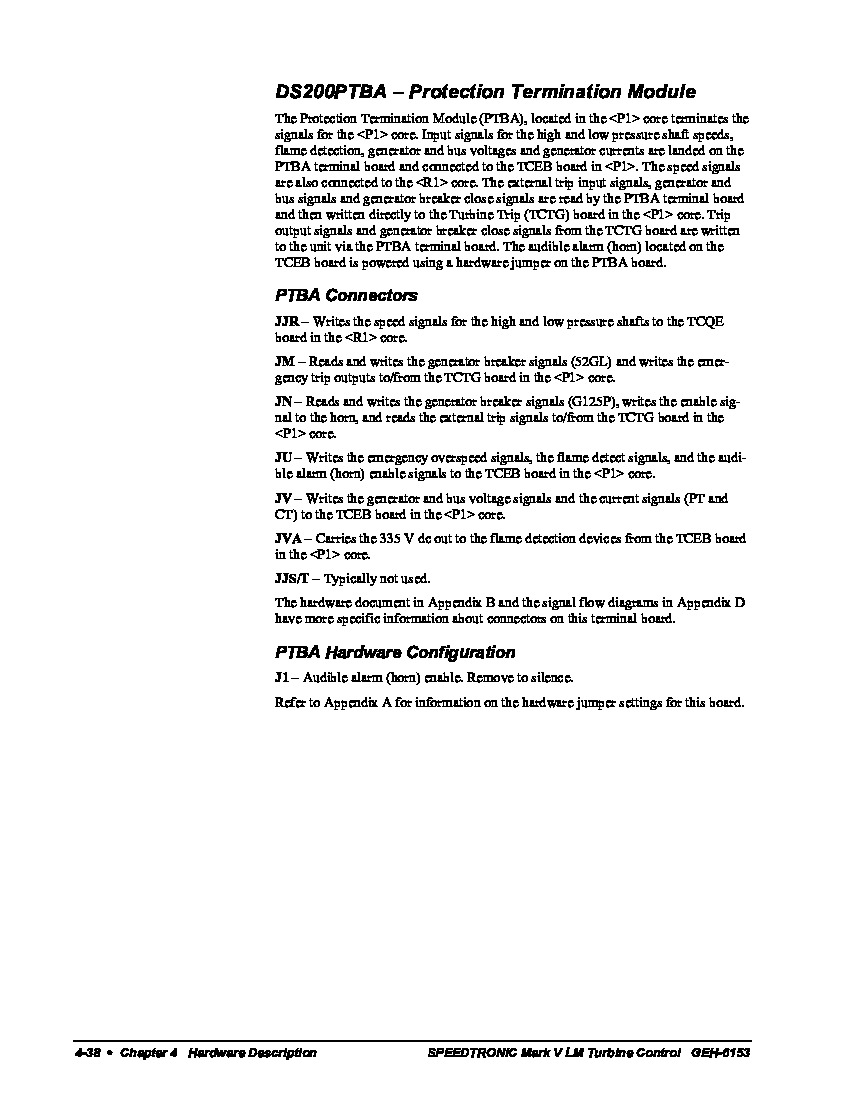

The DS200PTBAG1ABA functions as a protection termination module.  It is located within the <P1> core and terminates signals for that core.   Input signals like flame detection, generator/bus voltages, high and low-pressure shaft speeds, and generator currents land on the PTBA board.  Afterward, they are written to the TCEB board that also is situated in the <P1> core or to the TCQE board in the <R1> core.   Additionally, the PTBA board has a jumper that powers an audible horn alarm on the TCEB board.  To silence this, the J1 jumper should be removed.

The DS200PTBAG1ABA has several connector options including plugs and vertical pin connectors.  These are used to read and write generator breaker signals (JM) and (JN), write emergency Overspeed signals (JU), write generator and bus voltage signals (JV), and carry 335VDC to the flame detection devices (JVA).   Another connector, (JJS/T) is typically left unused.

GE manuals will provide additional important information about this board, including information regarding hardwired trips and primary overspeed protection.  Refer to GE manuals for installation and handling instructions.




Repair Services For DS200PTBAG1ABA

Type Lead Time Price Action
Repair Service 1-2 weeks $830

Our highly skilled technicians can repair your DS200PTBAG1ABA. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

DS200PTBAG1ABA Manuals, White Papers, Data Sheets, and Troubleshooting
