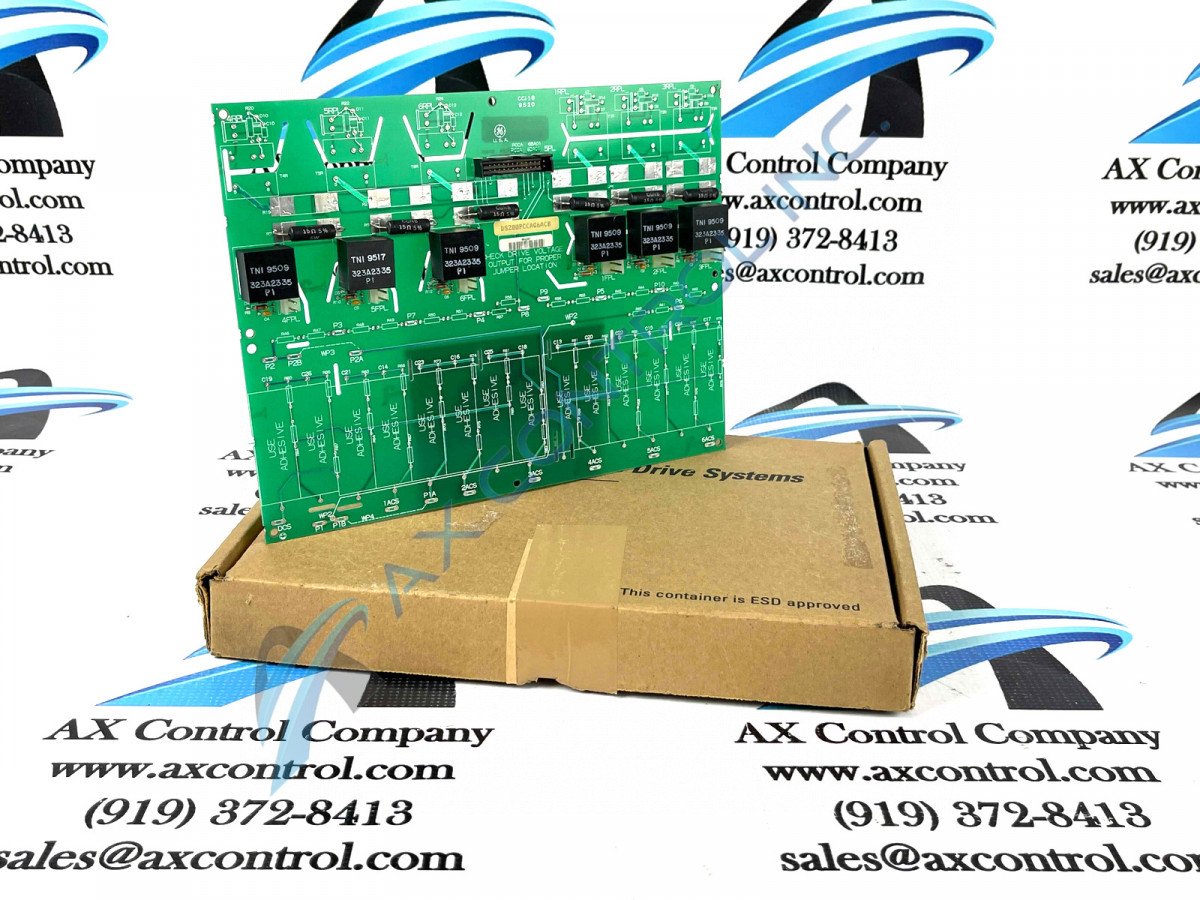

This DS200PCCAG6ACB Mark V Series Power Connect Card Assembly was originally manufactured by General Electric.



Sell Surplus: Have a DS200PCCAG6ACB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200PCCAG6ACB
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200PCCAG6ACB Technical Specifications

OEM GE General Electric
Product Series Mark V
Alphanumeric Part Number DS200PCCAG6ACB
Functional Product Description Power Connect Card
Instruction Manual GEI-100161
Functional Product Acronym PCCA
PCB Coating Style Normal Coating
1st Functional Revision A
2nd Functional Revision C
Artwork Revision B

Product Description

This DS200PCCAG6ACB Power Connect Card Assembly, as mentioned before, is a General Electric product designed and produced for use in their Mark V Series specifically. The Mark V Series is the latest product series from the massive industrial retailer that functions with the use of their Speedtronic technology, which has been continuously updated since its inception in the late 1950s to early 1960s. This DS200PCCAG6ACB Power Connect Card Assembly, while classified as an assembly, does not possess any sort of special assembly, and is actually a modified version of a pre existing Mark V Series product. This DS200PCCAG6ACB printed circuit board or PCB revises its original DS200PCCAG6 parent product through the inclusion of three significant product revisions; two functional revisions and a sole artwork revision.

Hardware Tips and Specifications

As with any Mark V Series product distributed by General Electric, this DS200PCCAG6ACB Power Connect Card Assembly utilizes a series of specific and necessary hardware components in order to maintain its series functionality. The General Electric Direct Current Power Connect Board DS200PCCAG6ACB serves as an interface between the drive and the silicon-controlled rectifier (SCR) power bridge. The DS200PCCAG6ACB board uses group numbers depending on the voltage, frame size, and the type of power conversion (regenerative or non-regenerative). Groups 1, 7, and 9 use regenerative, 240 through 630 volts. Groups 2, 8, and 10 use non-regenerative 240 through 700 volts. The board groups include AC volts, fuses, reactors, and bus transformers. Groups 1 and 2, groups 3 and 4, groups 5 and 6, groups 7 and 8, and groups 9 and 10 each use the same application specifications. This DS200PCCAG6ACB Power Connect Card Assembly belongs to the group 6.

There are a dozen plug connectors that provide signals to the SCR bridge. The signals are used to select the dc armature voltage range. The signals are used by the power supply board and are part of the configuration of the drive. Another source of configuration is the parameters defined in the configuration file. The operator can set the parameters either through the control panel or using a laptop. The display on the control panel enables the operator to view the parameters and the keys on the keypad enable the operator to edit the parameters and move up and down through the parameters and find applicable location in the file. In using a laptop, the operator can download the file and use editing software to modify the file. The operator can download the same file to multiple drives, or edit a unique configuration for each drive.

Frequently Asked Questions about DS200PCCAG6ACB

What type of fuses and reactors does DS200PCCAG6ACB have?
DS200PCCAG6ACB has leg fuses and leg reactors because DS200PCCAG6ACB is a group G6 PCCA as seen by the "G6" in DS200PCCAG6ACB's model number.
How many connectors does DS200PCCAG6ACB have?
DS200PCCAG6ACB has 12 plug connectors. DS200PCCAG6ACB has one additional plug connector. DS200PCCAG6ACB's 12 plug connectors, 1RPL-6RPL and 1FPL-6FPL, send forward and reverse gate pulse signals to the SCR bridge while DS200PCCAG6ACB's other plug connector, 5PL, communicates with the power supply board.
Which manual applies to DS200PCCAG6ACB?
The manual that applies to DS200PCCAG6ACB is Manual GEI-100161. This manual is the GE Industrial Control Systems PCCA Power Connect Card Manual. This manual is specific to DS200PCCAG6ACB and the manual covers a functional description of DS200PCCAG6ACB, the manual gives DS200PCCAG6ACB's application data, and the manual provides information for renewal/warranty on DS200PCCAG6ACB.
Which frames are used with DS200PCCAG6ACB?
With DS200PCCAG6ACB, frames J, K, and M are used.

Reviews For DS200PCCAG6ACB

Internal Review

This DS200PCCAG6ACB Power Connect Card Assembly is a well-documented option coming from the Mark V Series of General Electric automated drive system products. This DS200PCCAG6ACB Power Connect Card Assembly's functional description handily aligns exactly with its manual-specified PCCA functional abbreviation, and this DS200PCCAG6ACB Power Connect Card Assembly makes full use of its full table of three significant product revisions as well. This DS200PCCAG6ACB PCB is available for both repair and replacement here. - AX Control Lead Technician
