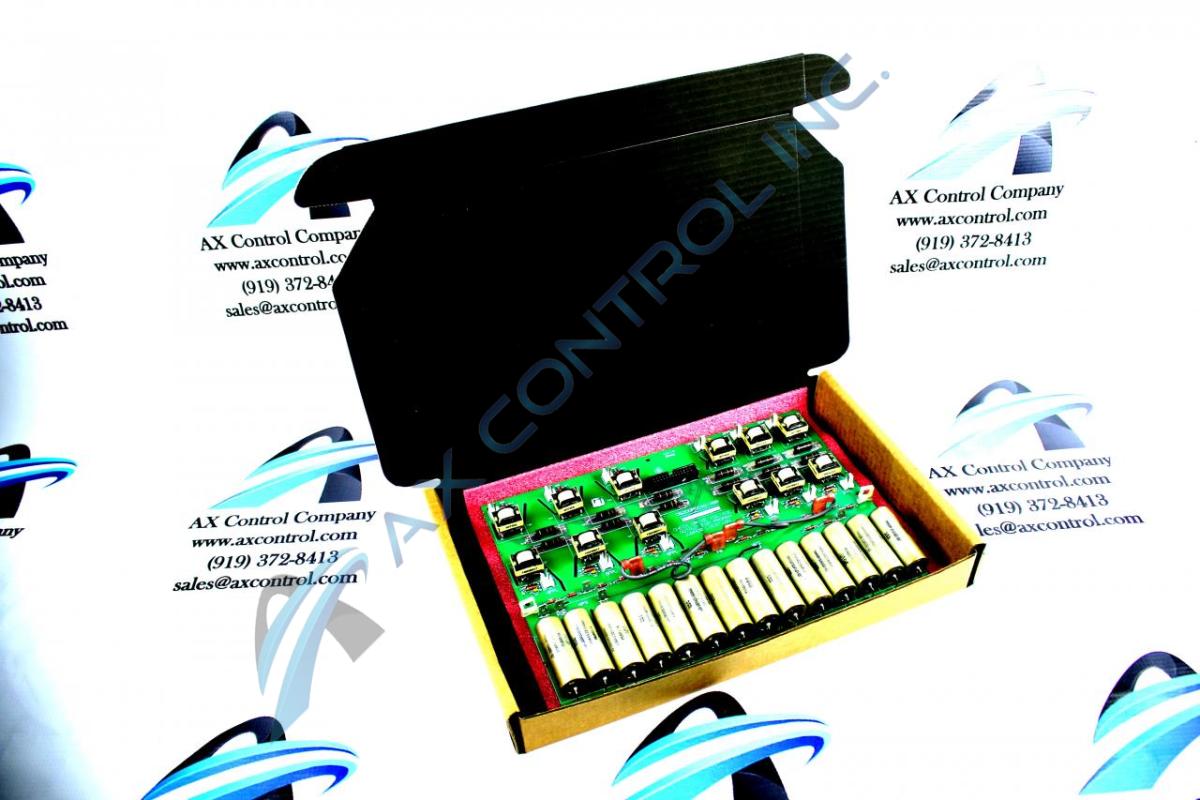

The DS200PCCAG1ABB is a Power Connect Card manufactured by GE Industrial Control Systems for use in their Mark V series.



Sell Surplus: Have a DS200PCCAG1ABB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200PCCAG1ABB
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200PCCAG1ABB Technical Specifications

Part Number DS200PCCAG1ABB
Series Mark V
Manufacturer GE Industrial Control Systems
Product Type PCCA Power Connect Card
Instruction Manual GEI-100161
Abbreviation PCCA
Armature Voltage Regenerative, 240-630 volts
Weight 1lbs
Shipping Dimensions 18 by 12 by 12 inches
Country of Origin United States

Product Description

This DS200PCCAG1ABB printed circuit board was originally manufactured for GE's Mark V Turbine Control System Series, which, as hinted at by its full extended series name, has specific applications in the management and control systems of compatible wind, steam, and gas turbine automated drive assemblies. The Mark V Series that this DS200PCCAG1ABB PCB belongs to is a legacy series given its eventual manufacturing discontinuation in the years following its initial release, although it additionally exists as one of the final General Electric product series to make use of their Speedtronic control system technology. General Electric's Speedtronic technology was first introduced alongside the rollout of the Mark I Series in the late 1960s. While this DS200PCCAG1ABB printed circuit board or PCB for short is definable functionally as a Power Connect Card, the originally-developed product of this functionality to feature within the Mark V is the DS200PCCAG1 parent printed circuit board missing all three of this DS200PCCAG1ABB product's three significant product revisions.

Hardware Tips and Specifications

The DS200PCCAG1ABB PCCA Power Connect Card serves as an interface board between the SCRs and the drive's control circuitry. Information about the DS200PCCAG1ABB can be found in the GE Industrial Control System Instruction Manual GEI-100161A and GEI-100161B. This board is the "ABB" revision of the baseline DS200PCCAG1 model and is the G1 group number. The G1 group number means that this PCCA board is regenerative and has an armature voltage scaling of 240-630 volts. The DS200PCCAG1ABB has four configurable jumpers located at JP1, JP2, WP3, and WP4. These jumpers, when set to application specific configuration, inform the drive if the snubber capacitors are connected to the power bridge at the same point as the voltage feedback channel. The jumpers in this DS200PCCAG1ABB Mark V Turbine Control System Series PCB's assembly are specifically used as follows:

  • JP1 selects DC Armature Voltage Range
  • JP2 is used along with JP1 to select DC Armature Voltage Range
  • WP3 is set to configure snubber and voltage feedback connection status
  • WP4 is also used to indicate snubber and voltage feedback channel connections

The DS200PCCAG1ABB is a commonly used board as part of the G1 group of PCCA Power Connect Cards and is usually available in New and Refurbished conditions as well as being repairable in most instances. The G1 group number attributed to this DS200PCCAG1ABB product is also telling of this DS200PCCAG1ABB Power Connect Card's Ac and Dc styles of snubbers, acceptance of C and G Mark V Series frames, its uniquely separate bus transformer, and finally its maximum Ac voltage rating of less than 480 V rms. The group one Mark V Series product grouping attributed to this DS200PCCAG1ABB printed circuit board was discovered upon a diligent technician-guided breakdown of the DS200PCCAG1ABB functional product number. The DS200PCCAG1ABB functional product number begins with the DS200 series tag detailing this product offering's normal Mark V Series assembly version as well as its domestic original manufacture location. Some of the DS200PCCAG1ABB board-specific hardware details revealed in the DS200PCCAG1ABB functional product number itself include this DS200PCCAG1ABB PCB's PCCA functional acronym, normal PCB coating style, and its possession of a three-fold revision history.

Frequently Asked Questions about DS200PCCAG1ABB

How many jumpers does DS200PCCAG1ABB have?
DS200PCCAG1ABB has 4 wire jumpers. The jumpers on DS200PCCAG1ABB are JP1, JP2, WP3, and WP4. These jumpers for DS200PCCAG1ABB select system voltage and determine snubber capacitor connections.
How many AC volts does DS200PCCAG1ABB have?
DS200PCCAG1ABB has ≤600 V rms AC volts. We know this because DS200PCCAG1ABB is a G1 board group PCCA.
Is DS200PCCAG1ABB regenerative?
Yes, DS200PCCAG1ABB is regenerative because DS200PCCAG1ABB is a G1 PCCA board. G1, G7, and G9 PCCA boards, including DS200PCCAG1ABB, are all regenerative while G2, G8, and G10 are non-regenerative.
Where can I find the manual for DS200PCCAG1ABB?
We can supply you with the manual for DS200PCCAG1ABB. The manual that goes with DS200PCCAG1ABB is Manual GEI-100151, the GE Industrial Control Systems PCCA Power Connect Card Manual. This manual is an original manual by General Electric and the manual provides a functional description of DS200PCCAG1ABB, application data for DS200PCCAG1ABB, and the manual has renewal/warranty replacement information on DS200PCCAG1ABB.

Reviews For DS200PCCAG1ABB

Internal Review

The DS200PCCAG1ABB is preferable to versions of the PCCA board in the G2, G8, and G10 groups due to its regenerative capacity. The ABB revision of the DS200PCCAG1ABB is not substantially different than the DS200PCCAG1ACC and is compatible with most applications that require the G1 group number. It has a low failure rate but is critical in many applications necessitating a stock shelf replacement to avoid downtime. 5 stars. - AX Control Lead Technician
