Manufactured by GE Industrial Systems for use in the greater EX2000 series, the DS200PANAH1ABB is a No-LAN ARCNET board that functions as an ARCNET driver for the UCIA motherboard.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200PANAH1ABB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200PANAH1ABB
  • SKU: DS200PANAH1ABBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200PANAH1ABB Technical Specifications

Manufacturer GE Industrial Systems
Series EX2000
Part Number DS200PANAH1ABB
Functional Acronym PANA
Functional Description No-LAN ARCNET Driver Board
PCB Coating Conformal Coating
Functional Revision 1 A
Functional Revision 2 B
Artwork Revision B

Product Description

The DS200PANAH1ABB ARCNET printed circuit board (PCB) from General Electric is a board replacement part designed for use within General Electric’s EX2000 turbine control system. The EX2000 is a Speedtronic subseries system. Speedtronic turbine systems have been used since the 1960s for controlling, monitoring, and protecting gas and steam industrial turbine systems. The DS200PANAH1ABB is a No-LAN ARCNET board. This is a daughterboard for the UCIA motherboard, and acts as an ARCNET driver, driving internal communications to I/O cores.

Hardware Tips and Specifications

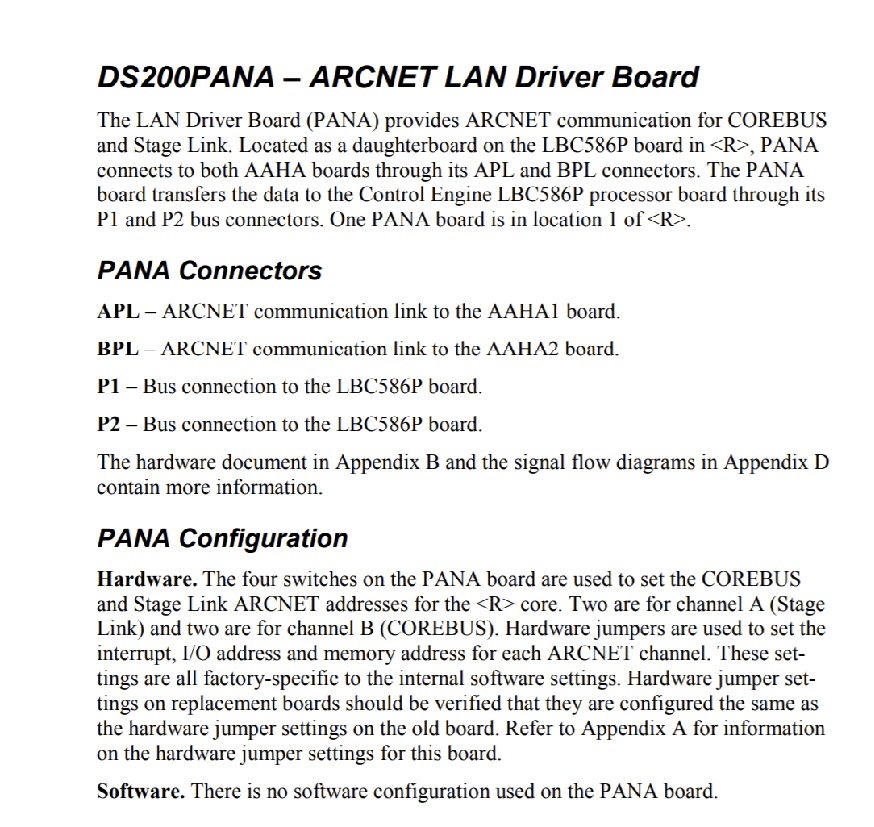

This DS200PANAH1ABB model PCB feature four different connector types, including two different ARCNET communication links and two separate bus connections. This PANA board has a single 40-pin connector, along with a 64-pin connector. In terms of configuration, the board itself typically sits within the <R> controller with the TCSA and TCPS boards. The board transfers processing data via P1 and P2 bus connectors to the greater drive assembly's Control Engine. These connections initially connect to the UCIA board. The APL and BPL-labeled connectors act as ARCNET communication links.

Other relevant DS200PANAH1ABB board components include a series of both hardware jumpers and switches. This No-LAN ARCNET board's jumpers are used to set I/O address, memory address, and interrupt for each of the ARCNET channels. Please make sure to verify jumper settings to ensure configuration matches your old board before beginning initialization of the installation process. Four switches are readily available on the base board of this PANA model, with differing functionalities. Two channel-A switches allow for stagelink ARCNET address configuration, whereas two channel-B type switches were intended for COREBUS address setting. The board also includes a series of integrated circuits.

The DS200PANAH1ABB board is factory-drilled to allow for mounting to the UCIA board.  Additional mounting is done via standoffs.  The board carries the GE logo, the board ID, and several codes that will help with positioning and wiring. The entirety of DS200PANAH1ABB's base board, including all of the components affixed to it, are protected by a layer of conformal-style PCB coating. Conformal-style printed circuit board coating is significantly thinner than the alternative normal PCB coating, but develops a much more comprehensive and extensive layer of printed circuit board protection designed to miss nothing. This conformal coating style is made apparent through an analysis of the specialized DS200PANAH1ABB part number; the "H1" group designation is present near the end of the product number. Further analysis of the DS200PANAH1ABB part number reveals the location of its manufacturer, General Electric, as all "DS200" models were made right here in the United States in the Salem, Virginia plant. A complete analysis of the DS200PANAH1ABB's unique part number has been supplied above, through the "manuals" tab.

 The GE manuals issued with original purchase of the DS200PANAH1ABB will provide additional information, as manual information for this product is limited online generally.  AX Control is happy to work with your private courier service if you prefer that to our fast or expedited shipping options. Local customers can arrange for pickup at our facility.

Frequently Asked Questions about DS200PANAH1ABB

What is the full product number for the aforementioned UCIA Motherboard?

As abbreviated above, this DS200PANAH1ABB model component PCB is the duaghterboard affixed to the DS200UCIAG1A motherboard.

What types of jumpers are present on the base board of the DS200PANAH1ABB?

Both manually-moveable jumpers and hard-wired jumpers intended for factory testing purposes are present, affixed to this PCB's base plate.

What are the four holes on each corner of this DS200PANAH1ABB?

The four holes visible on the base board of this DS200PANAH1ABB product are factory-drilled and intended for installation purposes. Each hole is insulated for safe and efficient voltage protection.

Reviews For DS200PANAH1ABB

Internal Review
(5.0)

An EX2000 series component circuit board; the DS200PANAH1ABB revised PCB acts as an ARCNET driver for the crucial UCIA motherboard. This printed circuit board is renowned is large part due to its various compatibilities; it offers a plethora of different connector types, including a 40-pin connector, a 64-pin connector, P1 and P2 bus connectors, and APL and BPL connectors. Keep in mind before making a purchase that this specific model is a revised version of the preexisting DS200PANAH1 parent model; modified through three significant product revisions. - AX Control Lead Technician
