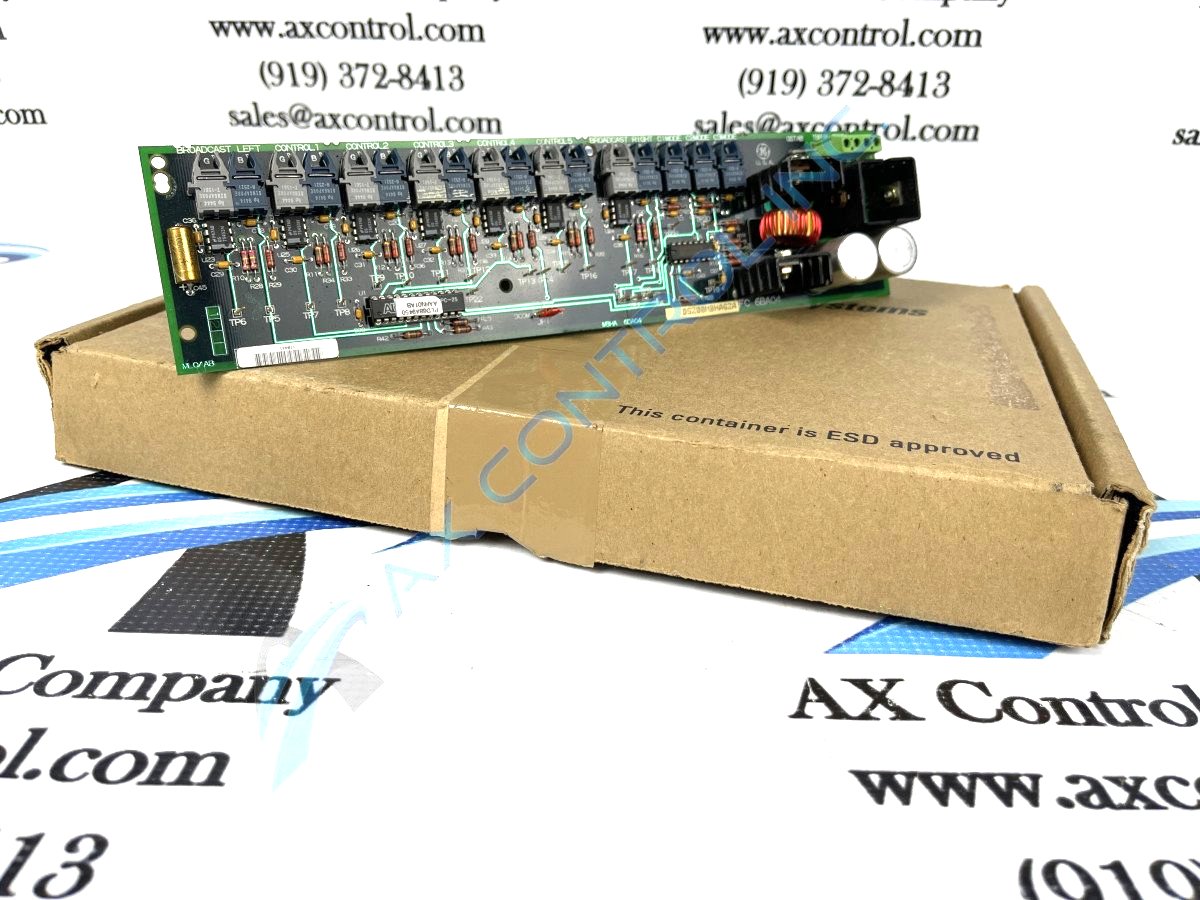

This DS200MBHAG2AFC Multi-bridge Hub Communications Board was created and distributed by GE Motors & Industrial Systems for their Mark V Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200MBHAG2AFC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200MBHAG2AFC
  • SKU: DS200MBHAG2AFCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200MBHAG2AFC Technical Specifications

Manufacturer GE Motors & Industrial Systems
Functional Abbreviation MBHA
Product Type Multi-Hub Communications Board
Board Group Group Two
Board Hardware 22 Testpoints, 17 Fiber Optic Connector, 2 Terminal Boards, and a Stab Connector
Number of Fiber-Optic Receiver/Transmitter Circuit Pairs Seven
Power Consumption Approx. 5 W
Power Supply Unregulated 24 VDC

About the DS200MBHAG2AFC

The DS200MBHAG2AFC board is a part of General Electric's Mark V series and serves as a Multi-Bridge Hub Communications Board (MBHA). Its primary purpose is to establish connections between adjacent drive and multi-bridge systems using a fiber-optic communications link.Within the MBHA board, there are three groups available, and the DS200MBHAG2AFC board belongs to the G2 group. The G2 board has a different function for its JP1 jumper, which is utilized for normal operations as well as special settings for factory board resets. The specific jumper configurations can be found in table one of the GEI-100172A MBHA Multi-Bridge Hub Communications Board Instruction Guide.

Hardware Tips and Specifications

Now that some of the series information and Mark V grouping options for this DS200MBHAG2AFC Multi-bridge Hub Communications Board have been exposed, it is possible to discuss the hardware inclusions and specifications this General Electric product necessitates. The DS200MBHAG2AFC board offers up to seven pairs of fiber-optic transmitters and receivers. These pairs are responsible for Mbaud data links and are located on the edge of the MBHA board. To access the receiver and transmitter pairings, duplex fiber-optic cables are utilized in the internal assembly of this Mark V Series product offering. Data links control one through control five facilitate communication with the Mark V's related Multi-Bridge Signal Processing Card (SPCB) board, which can consist of up to six drives. The power supply inputs for the DS200MBHAG2AFC board are received via the TBPSA and TBPSB terminal board connectors. Finally, a stab connector labeled as GSTAB is present on this board.

The DS200MBHAG2AFC board incorporates twenty-two test points for diagnostic testing usage, each with a unique description. For instance, TP13 represents the test point responsible for transmitting signals to the fourth bridge of the board. These aforementioned test points are located within the middle and along the bottom half of the MBHA board. While one jumper has been incorporated into the assembly of this General Electric printed circuit board product; this is for factory testing purposes only and should not be accessed by the prospective buyer from AX Control. On a final note, this DS200MBHAG2AFC Multi-bridge Hub Communications board exists as an edited version of an already-existing Mark V Series product; altering the DS200MBHAG2 Multi-bridge Hub Communications Board through its inclusion of three significant product revisions.

Frequently Asked Questions about DS200MBHAG2AFC

What is the DS200MBHAG2AFC?

This particular device helps connect different systems together using special cables that transmit light signals called fiber optics. It ensures smooth communication between General Electric's Mark V systems, making sure they work together effectively. The DS200MBHAG2AFC has multiple pairs of transmitters and receivers that send and receive information. It also has a set of small points that can be tested to check if everything is working correctly. This device is designed to be easy to use with simple settings, so it can be adjusted for different situations. It is commonly used in industrial settings to help control and monitor complex operations. Overall, the DS200MBHAG2AFC is an important tool that helps different systems communicate with each other and ensures they operate smoothly in industrial environments.

Reviews For DS200MBHAG2AFC

Internal Review
(5.0)

The DS200MBHAG2AFC board is an essential component of the Mark V series by General Electric. It effectively connects drive and multi-bridge systems through fiber-optic communication. With reliable performance, convenient jumper settings, and multiple fiber-optic transmitter/receiver pairs, it ensures seamless integration and efficient operation within complex control systems. A reliable and versatile solution for industrial applications. - AX Control Lead Technician
