General Electric DS200MBHAG1 Mark V Multi-Bridge Hub Communications Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200MBHAG1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200MBHAG1
  • SKU: DS200MBHAG1GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200MBHAG1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
General Electric DS200MBHAG1 Mark V Multi-Bridge Hub Communications Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200MBHAG1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200MBHAG1
  • SKU: DS200MBHAG1GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200MBHAG1 Technical Specifications

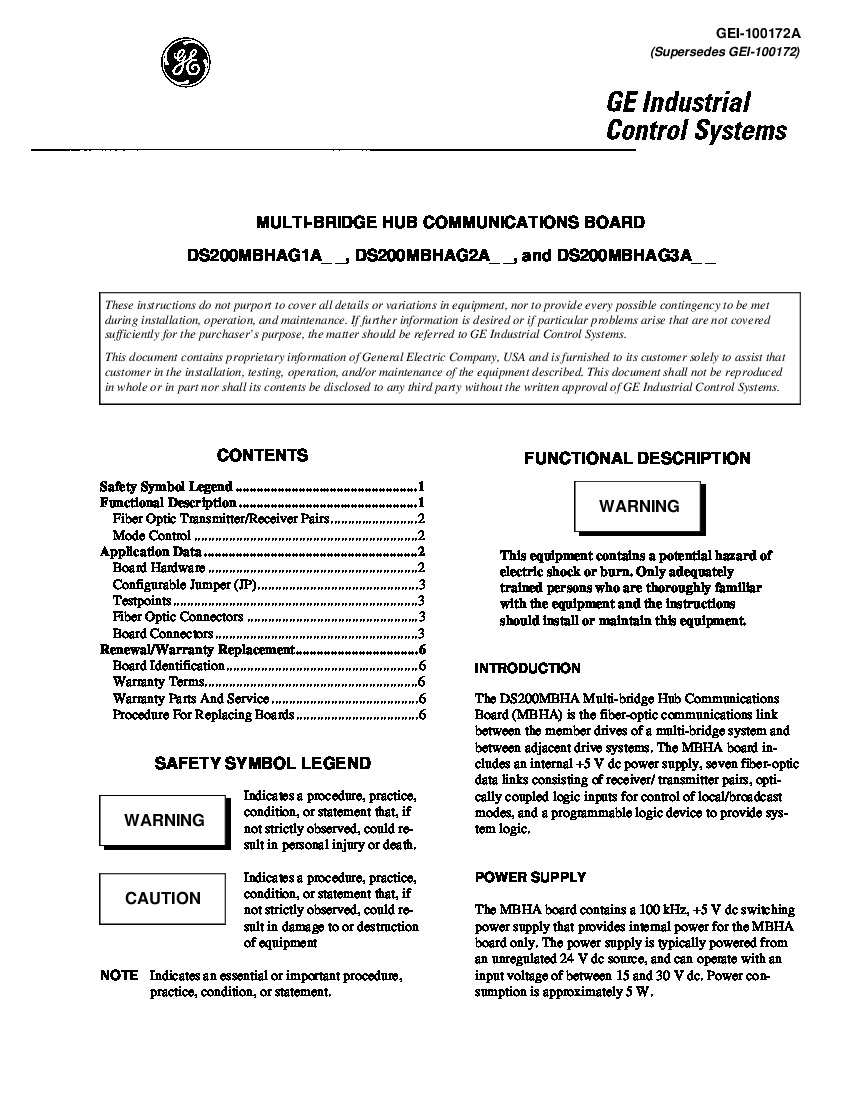

Instruction Manual GEI-100172
Manufacturer GE General Electric
Part Number DS200MBHAG1
Product Type Multi-Bridge Hub Communications Board
Series Mark V

Product Description

General Electric’s DS200MBHAG1 is a multi-bridge hub communications board. Developed for the Mark V series, this communications card can be used across a broad range of drive applications. Fiber optic communications links are provided when this board is installed in a drive. Both multi-bridge system drives and adjacent drive systems can communicate using this communication card.

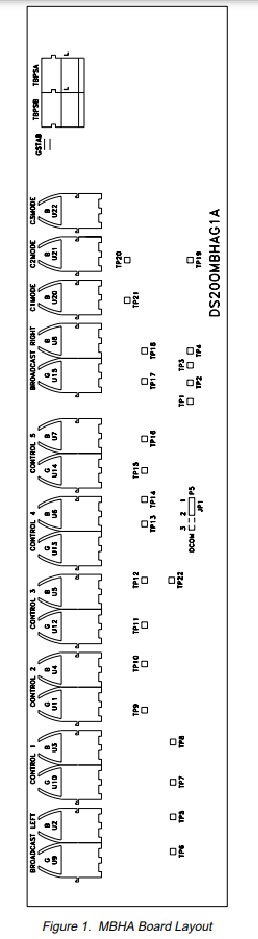

The board features a number of integrated links and circuits that provide the interfacing capabilities to the card. Seven fiber optic data links line the edge of the DS200MBHAG1. These 1 Mbaud data links contain the receiver/transmitter pairs used for data communications. Three fiber optic logic inputs are also found on the board. These fiber optic receivers are used to control local/broadcast modes from different drives. An on board logic control system provides system logic control to the board. One configurable jumper is found on the card as well as 22 test points. These spots provide users with the ability to check signals statuses, board commons, and power supplies. Sourced power to the board can rate between 15 and 30 VDC.

DS200MBHAG1 includes storage and installation parameters that must be followed to protect the integrity of both the board and its drive. An illustrated guide to wiring and installing the board is available in the device’s manual and datasheet. Technical support for this board and all Mark V series cards was originally provided by the manufacturer, General Electric.

Our trusted and friendly sales team at AX Control is happy to help with all of your DS200MBHAG1 and automation needs. Please contact our staff to receive current prices and availabilities on all parts and repairs.

Frequently Asked Questions about DS200MBHAG1

What is the strength of the power supply on DS200MBHAG1?
DS200MBHAG1 has a power supply that is 100 kHz, +5 VDC switching. DS200MBHAG1's power supply provides internal power for the DS200MBHAG1 board only.
Does DS200MBHAG1 have system logic?
Yes, DS200MBHAG1 includes a programmable logic device that provides system logic for DS200MBHAG1.
Does DS200MBHAG1 have any jumpers?
Yes, DS200MBHAG1 has one configurable jumper (JP1). JP1 on DS200MBHAG1 is for factory test selection or commucation logic slection.
What manual is used with DS200MBHAG1?
The manual for DS200MBHAG1 is Manual GEI-100172. This manual is the GE Industrial Control Systems Multi-Bridge Hub Communications Board Manual. The manual is directly correlated to DS200MBHAG1 and the manual provides you with informative details about DS200MBHAG1. For a copy of the DS200MBHAG1 manual, send us a manual request.
Reviews For DS200MBHAG1
Internal Review

This Mark V Speedtronic board is used as a Multi-bridge hub communications board (MBHA.) There are three different board groups within the MBHA family, so be sure to order the correct one for your application. G1 Boards like this one are designed with a different programmable logic device than the other board groups. Read through associated manuals for additional details.--AX Control Tech Team.

Repair Services For DS200MBHAG1

Type Lead Time Price Action
Repair Service 1-2 weeks $865

Our highly skilled technicians can repair your DS200MBHAG1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
