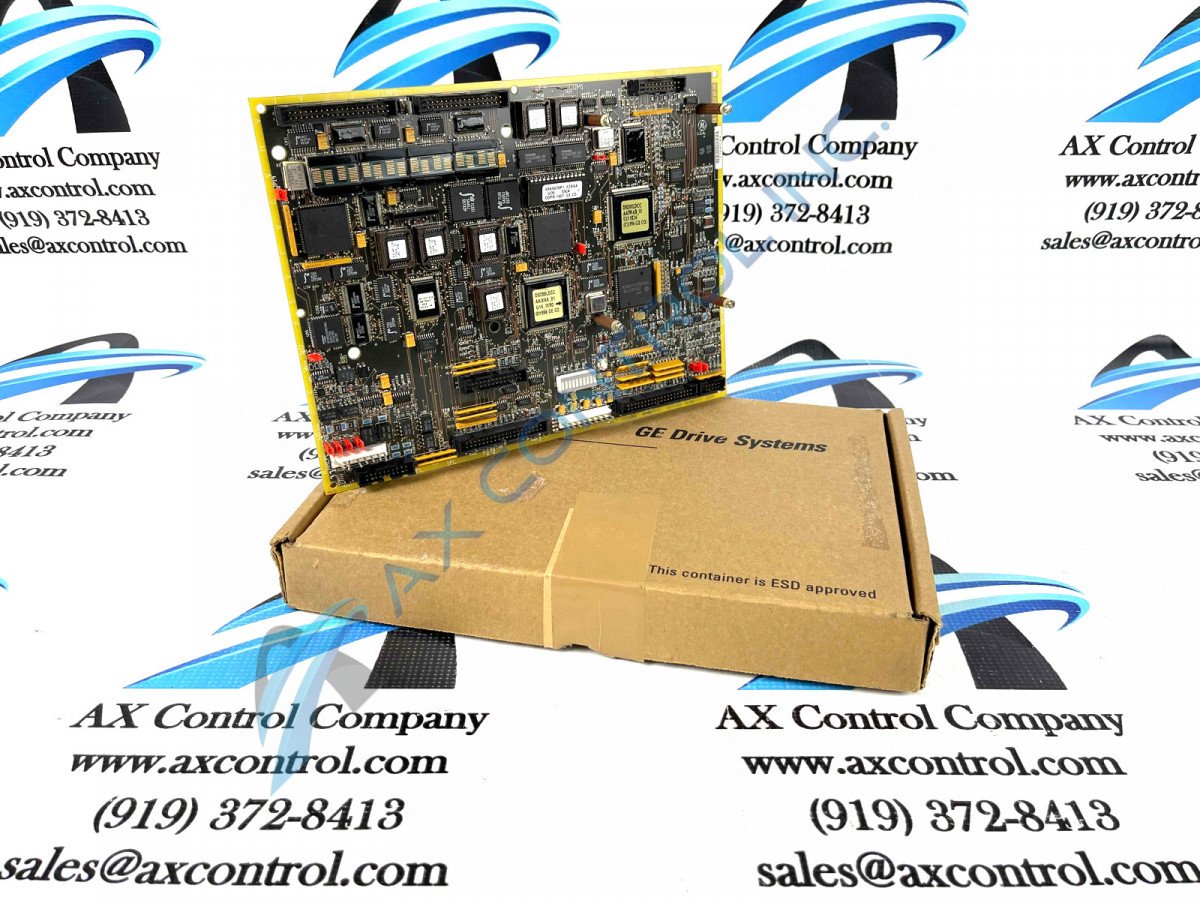

DS200LDCCG1AAA Image One
3 year warranty

DS200LDCCG1AAA Image 1
DS200LDCCG1AAA Image 2
DS200LDCCG1AAA Image 3
DS200LDCCG1AAA Image 4


    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
Manufactured by GE Motors & Industrial Systems, the DS200LDCCG1AAA drive control and LAN communications board component is intended for use with GE's DIRECTO-MATIC family of automated drives and drive exciters.



Sell Surplus: Have a DS200LDCCG1AAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200LDCCG1AAA
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200LDCCG1AAA Technical Specifications

Manufacturer GE Motors & Industrial Systems
Part Number DS200LDCCG1AAA
Functional Acronym LDCC
Functional Description Drive Control/LAN Communications Board
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 A
Artwork Revision A
Instruction Manual GEI-100216

Product Description

DS200LDCCG1AAA is a communications board developed by General Electric. Specifically, this board is a drive control and LAN communications board. Manufactured by GE shell company GE Motors & Industrial Systems, this unit was developed to interface with GE DIRECTO-MATIC 2000 drives and exciters. Users are provided with a wide array of capabilities when using this unit, such as integrated operator interfacing and drive resets.

Hardware Tips and Specifications

Important to the functionality of any circuit board or greater drive assembly, a set of microprocessors control and process motor and I/O functions as well as LAN (local area network) communications for the DS200LDCCG1AAA. Both I/O and drive controls are integrated into the four on-board microprocessors located on DS200LDCCG1AAA. I/O peripherals such as controllers and counters are found in the drive control processor (DCP). Analog to digital and digital to analog conversions are performed by this DCP processor. This isn't the only processor working to make this PCB component functional. A motor control processor (MCP) allows for digital I/O communications as well as motor controls, while a co-motor control processor (CMP) works with the MCP board when additional processing power is required. If any calculations are too math intensive, the CMP will take over and calculate the algorithms. The final processor present on the base plate of the DS200LDCCG1AAA is the LAN control processor (LCP).

Before attempting installation of the DS200LDCCG1AA component part, it is considered best practice to understand the positioning of these aforementioned microprocessor components. This PCB's Drive Control Processor exists at location U1, while its Motor Control Processor is present at location U21 on the baseplate. DS200LDCCG1AA's Co-motor Processor, represented as CMP, is stationed at location U35, while this drive component's final microprocessor is positioned at location U18.

One final trait that should be considered before making a purchase of the DS200LDCCG1AA component part is this printed circuit board's protective coating type. Signified by the "G1" group variation indicated in DS200LDCCG1AA's part number, this PCB is protected by a layer of normal protective circuit board coating, which, while thicker than its conformal coating competitor, ultimately does not offer the same exhaustive layered coverage for supreme circuit board protection.

Software Tips and Specifications

The DS200LDCCG1AAA is considered a crucial, central module to the greater EX2000 assembly, and this is reflected through General Electrics' own categorization of this module component as a symbolic "brain." A lot of processing power is needed to perform the "brain" responsibilities for the greater EX2000 assembly; which include Input/Output, regulation patterns, protection, power conversion module, and general assembly communications controlling.The DS200LDCCG1AAA's circuitry can accept five bus systems to support these processes, including DLAN+, DLAN, Genius, CPL, and C-bus. Overall drive control can be performed using the integrated operator interface system, which includes a standard intuitive alphanumeric keypad and 16 character display for editing access to system diagnostics and settings.

Installation parameters provided by the manufacturer should be followed to ensure that DS200LDCCG1AAA operates without functional issue. Both the device manual and datasheet contain a complete wiring and installation guide for DS200LDCCG1AAA. The manufacturer, General Electric, was the original technical support provider for this board, although GE may only provide limited manual information for this obsolete product online.

AX Control’s trusted sales team is available to assist with all of your automation needs. To receive prices and availabilities on all parts and repairs please don't hesitate our helpful sales representatives by phone or email.

Frequently Asked Questions about DS200LDCCG1AAA

Does the DS200LDCCG1AAA feature a backwards-compatible revision version?

Yes. Seeing as this DS200LDCCG1AAA model shares a rating of A for its functional revision one, functional revision two, and even its artwork revision, this GE Motors & Industrial Systems drive control and LAN communications board should be fully backwards-compatible. This information can be gleaned from DS200LDCCG1AAA's product number; more specifically the final portion "AAA." A complete breakdown of the DS200LDCCG1AAA's product number is available above throught our manuals tab.

What are some of the safety features of this DS200LDCCG1AAA model?

While complete in function and components, the DS200LDCG1AAA features a number of elements intended to guide the survival of both the greater drive assembly and the greater drive assembly user. Some of the unique components that contribute to the overall safety of this product include a "Hard" reset button, normal-style PCB coating, an intuitive board-mounted keypad display, and two onboard LED indicators for functional faults.

What styles of hardware jumpers does the DS200LDCCG1AAA possess?

This DS200LDCCG1AAA GE Motors & Industrial Systems drive control and LAN communications board makes use of two different styles of PCB jumpers. This LDCC PCB features Berg-type manually movable hardware jumpers for maximal customization potential, but also incorporates several hard-wired jumpers for additonal circuit closing capabilities. The Berg-type jumpers present on the base plate of this DIRECTO-MATIC model are labeled by the nomenclature JP, whereas their counterparts in the hard-wired jumpers are labelled with the separate nomenclature tag WJ.

Reviews For DS200LDCCG1AAA

Internal Review

The DS200LDCCG1AAA product from GE Motors & Industrial Systems is known for its dual functionality as both a drive controller and LAN communications board. This specialized part works alongside General Electrics' limited DIRECTO-MATIC series, and may be more commonly referred to by its functional acronym LDCC in industry circles. The DS200LDCCG1AAA is a revised version of the original DS200LDCCG1 product, with a functional revision 1 of A, a functional revision 2 of A, and an artwork revision of A as well. - AX Control Lead Technician
