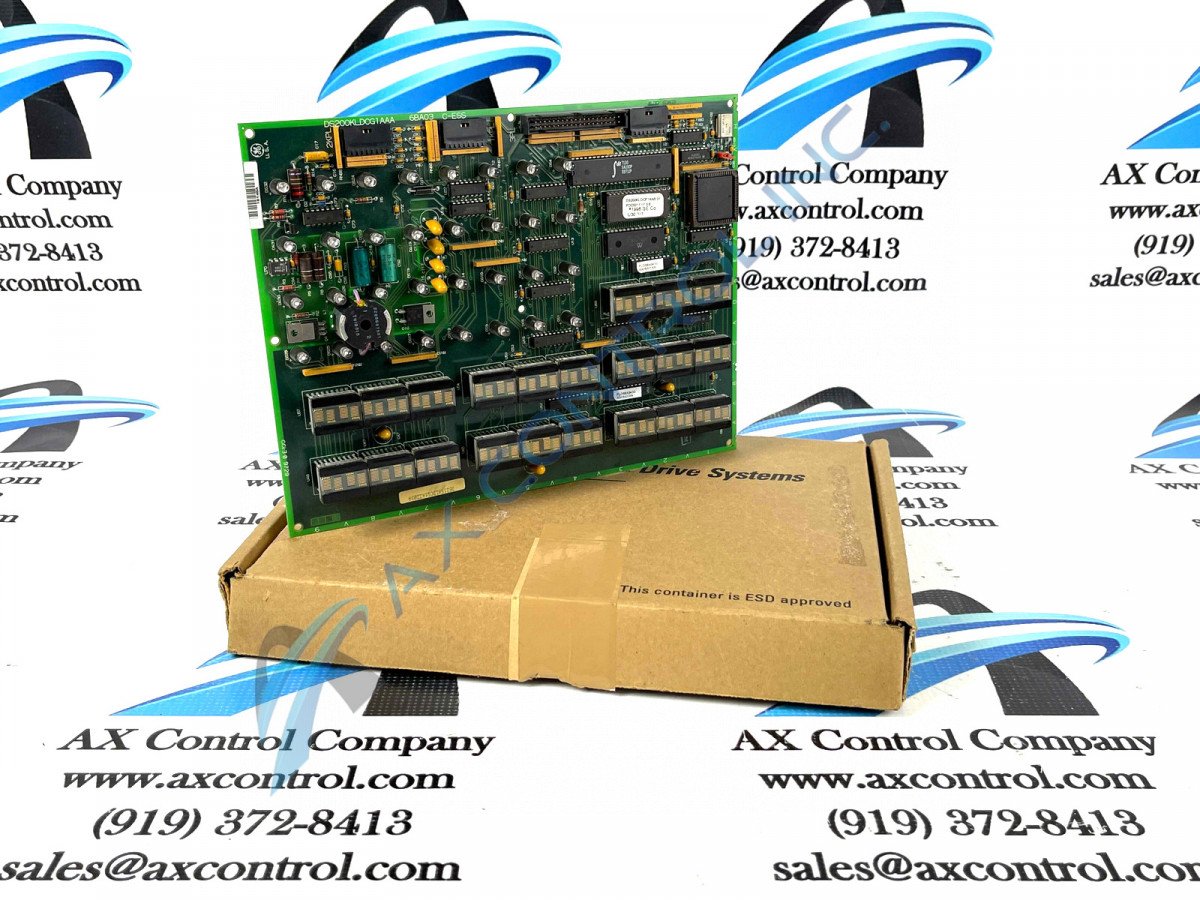

The DS200KLDCG1A LED/Key Display Board was manufactured by General Electric for use in the Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200KLDCG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200KLDCG1A
  • SKU: DS200KLDCG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200KLDCG1A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200KLDCG1A
Functional Description Key/LED/Display Card
Functional Acronym KLDC
PCB Coating Normal Coating
Functional Revision 1 A

About the DS200KLDCG1A

This DS200KLDCG1A printed circuit board was manufactured by General Electric, for specific placement in their Mark V Turbine Control System Series. As you can probably discern from its full extended series name, the Mark V Series has specific applications in the control and management systems of popular wind, steam, and gas turbine automated drive assemblies, and is considered a General Electric legacy series due to its manufacture's eventual discontinuation in the years following its initial release. This DS200KLDCG1A product offering's Mark V Turbine Control System Series, while a legacy series, also exists as one of the final General Electric product series to feature their patented Speedtronic control system technology. This DS200KLDCG1A printed circuit board or PCB for short is better-definable by its official functional description as a Key/LED/Display Board, as it appears in pertinent Mark V Series instructional manual materials. This DS200KLDCG1A PCB is an edited version of the original DS200KLDCG1 Key/LED/Display Board developed for the Mark V Series.

Hardware Tips and Specifications

This DS200KLDCG1A PCB, like any Mark V Series printed circuit board available here, necessitates its own series of functionality-inducing hardware components and component specifications. The GE Key/LED/Display Board DS200KLDCG1A features 32 LEDs, twenty-one  4-character displays, and one jumper. The jumper in this DS200KLDCG1A PCB's assembly has been included for DS200KLDCG1A board customization purposes, and is classified as a Berg-type manually-moveable hardware jumper. The GE Key/LED/Display Board DS200KLDCG1A also features one 40-pin connection strip on the rear of the board. Because the board is prone to damage during shipment due to the 32 LEDs and the 4-character displays, it is important to follow guidelines concerning inspecting and handling the board after you receive it. This DS200KLDCG1A PCB's assembly is protected from potentially-damaging surface voltage and static electricity by a number of crucial hardware component inclusions; primarily the Mark V Series-standardized voltage-limiting hardware components such as various capacitors, diodes, rectifiers, and integrated circuits. Additionally, each corner of the DS200KLDCG1A printed circuit board has been permeated by a factory-drilled hole meant for convenient and safe DS200KLDCG1A board installation; with each factory-drilled hole ringed with an insulated material.

Additional voltage protection for this DS200KLDCG1A Key/LED/Display Board is afforded through this DS200KLDCG1A PCB's normal style of PCB coating, which applies a layer of insulation and daily wear and tear protection to individual DS200KLDCG1A hardware components on a functional priority basis. The normal style of PCB coating applied to the surface of this DS200KLDCG1A printed circuit board is discoverable upon an inspection of the DS200KLDCG1A functional product number itself, which is particularly valuable given this DS200KLDCG1A product offering's obsolete Mark V Legacy Series attribution. The DS200KLDCG1A functional product number begins with a dual-functional DS200KLDCG1A board naming component in the DS200 Series tag. The DS200 series tag at the very beginning of the DS200KLDCG1A functional product number describes this DS200KLDCG1A PCB's normal Mark V Series assembly as well as its domestic location of original manufacture. Some of the other DS200KLDCG1A hardware details revealed through use of its alphanumeric product number include its KLDC functional product acronym, its group one Mark V Series grouping, and finally its singular A-rated functional product revision. Before making any final purchase decision on this DS200KLDCG1A product offering, it is crucial to understand that its originally-introduced performance specifications and general dimensions have no doubt been impacted by its ownership of a singular A-rated functional product revision.

Frequently Asked Questions about DS200KLDCG1A

How many LEDs does DS200KLDCG1A have?
DS200KLDCG1A has 32 LEDs. Each LED on DS200KLDCG1A is labeled. The LEDs on DS200KLDCG1A are marked DS1-DS32.
Where are the most important connections on DS200KLDCG1A found?
The most important connections on DS200KLDCG1A, or the biggest connections on DS200KLDCG1A, are connections U40-U60 on DS200KLDCG1A. These are connection strips on DS200KLDCG1A that are arranged into two rows with three sections of three separate connections while DS200KLDCG1A also has a third row, which is one section of three separate connections for DS200KLDCG1A. These connections align the bottom and middle right side of DS200KLDCG1A.
How many pins do the KPL connections on DS200KLDCG1A have?
The KPL connections on DS200KLDCG1A, connections 1KPL-3KPL on DS200KLDCG1A, are 8-pin connectors for DS200KLDCG1A. These connections for DS200KLDCG1A can be found at the top of DS200KLDCG1A, facing outwards from DS200KLDCG1A.
