The DS200KLDCF1AAB Software PROM Set was manufactured by General Electric for use in the Mark V Series of turbine control systems.



Sell Surplus: Have a DS200KLDCF1AAB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200KLDCF1AAB
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200KLDCF1AAB Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200KLDCF1AAB
Functional Description Software PROM Set
Functional Acronym KLDC
PCB Coating F-style PCB coating
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly

Product Description

This DS200KLDCF1AAB printed circuit board acts as a Software PROM Set within its greater Mark V Turbine Control System Series, as alluded to above. This DS200KLDCF1AAB Software PROM Set's Mark V Series, as you might have noticed in its extended name, has specific applications in the control and management systems of General Electric-compatible steam, wind, and gas turbine automated drive assemblies. The Mark V Series that this DS200KLDCF1AAB PCB belongs to is considered a GE legacy series, as its manufacture has been discontinued in the years following its original release. With this being true, the DS200KLDCF1AAB Board's Mark V Turbine Control System Series is also denoted as one of the final General Electric Mark product series to utilize the patented Speedtronic control system technology. This DS200KLDCF1AAB Software Prom Set is not the original product with its specific intended functionality to feature within the Mark V Series; that would be the DS200KLDCF1 parent Software PROM Set missing this DS200KLDCF1AAB product's full three-fold revision history.

Hardware Tips and Specifications

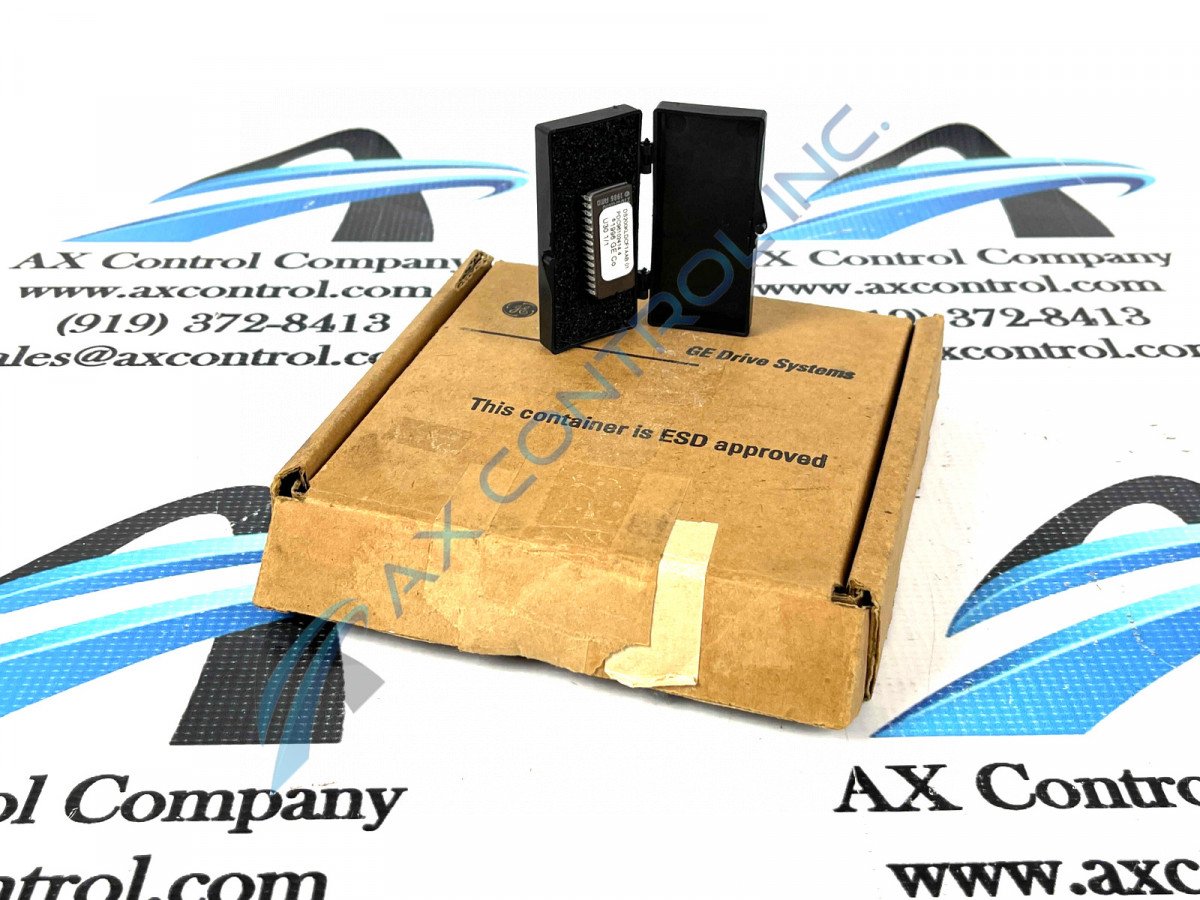

As indicated by the insertion of the PROM tag in this DS200KLDCF1AAB product's functional description, the GE Software PROM Set DS200KLDCF1AAB features two PROM modules for use with GE Speedtronic Mark V boards. The PROM modules included with the GE Software PROM Set DS200KLDCF1AAB come packaged in a padded plastic case to protect the modules; the plastic case is wrapped in a sealed static protective bag because the modules are sensitive to static electricity. The plastic case unique to this DS200KLDCF1AAB Software PROM Set's assembly is the reason that this DS200KLDCF1AAB Set is classified as a Mark V Series product with a special F-style of device protection. This is a specification made apparent upon a thorough guided analysis of the DS200KLDCF1AAB functional product number itself, which begins with the DS200 series tag detailing this DS200KLDCF1AAB product's normal style of Mark V Series assembly; rather surprising given this DS200KLDCF1AAB product's classification as a Software PROM Set specifically. Some of the other DS200KLDCF1AAB board hardware specification information revealed in functional parts of the DS200KLDCF1AAB product number include this DS200KLDCF1AAB Set's:

  • KLDC functional product abbreviation
  • Domestic location of original manufacture
  • A-rated primary functional revision
  • A-rated secondary functional revision
  • B-rated artwork configuration revision

Store the modules in a cool and dry location that is safe from individuals that might mishandle the modules, and keep the modules in the sealed bag until you are ready to install them, as this DS200KLDCF1AAB printed circuit board is considered a static-sensitive PCB that is generally fragile. A number of DS200KLDCF1AAB manual-identified installation procedures must be followed for this DS200KLDCF1AAB board. When beginning installation, place the board in which you plan to install the modules on a clean level surface and place the board on top of a flattened static bag. The most important factor is that you must wear a wrist strap. One end of the wrist strap is wrapped around your arm or hand. The other end can be clipped to a metal surface, like a bare metal workbench leg or a metal chair. The static will exit your body or the board and seek earth ground which is available in the metal structure. It is also important to not carry the static bag and walk around with it because that causes the static to build up, rendering it useless for this procedure. Locate the PROM connector on the DS200KLDCF1AAB board and open the sealed bag with a sharp blade. Open the plastic box and use your hands to remove the modules. Align the module with the socket and install it. Before making a final purchase decision on this DS200KLDCF1AAB product, it is important to be aware that its originally-introduced performance specifications and dimensions have surely been altered through its possession of three significant product revisions.

Frequently Asked Questions about DS200KLDCF1AAB

Does this DS200KLDCF1AAB Software PROM Set's assembly feature any factory-drilled installation holes?

No. Given the small stature and specific application of this DS200KLDCF1AAB Software PROM Set, it does not make use of any standard Mark V Series insulated installation holes.

Would this DS200KLDCF1AAB Software PROM Set be protected by any warranty upon my original purchase?

Yes. Following your original purchase from AX Control, this DS200KLDCF1AAB Software PROM Set would be considered protected by our guaranteed three-year PCB warranty.

Reviews For DS200KLDCF1AAB

Internal Review

This DS200KLDCF1AAB Software PROM Set is an intriguing and well-supported member product of its greater Mark V Series automated drive assembly. For starters, this DS200KLDCF1AAB printed circuit board is classified as a set, although its DS200KLDCF1AAB functional product number indicates a regular printed circuit board. This small-size Mark V Turbine Control Series product is available today for repair or replacement. - AX Control Lead Technician
